Product Family

The FN pole luminaire range is versatile and adaptable, it is suitable for both street and accent lighting and provides bidirectional lighting where required.

FN

“Thanks to its versatility, the FN product family is suitable for a wide range of applications and does not even stop at bidirectional lighting.

What sets FN apart

Flexible Shape of Light

FN offers a wide range of luminous fluxes and light distributions, with the option of adding factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (anti-glare protection).

Bidirectional light emission

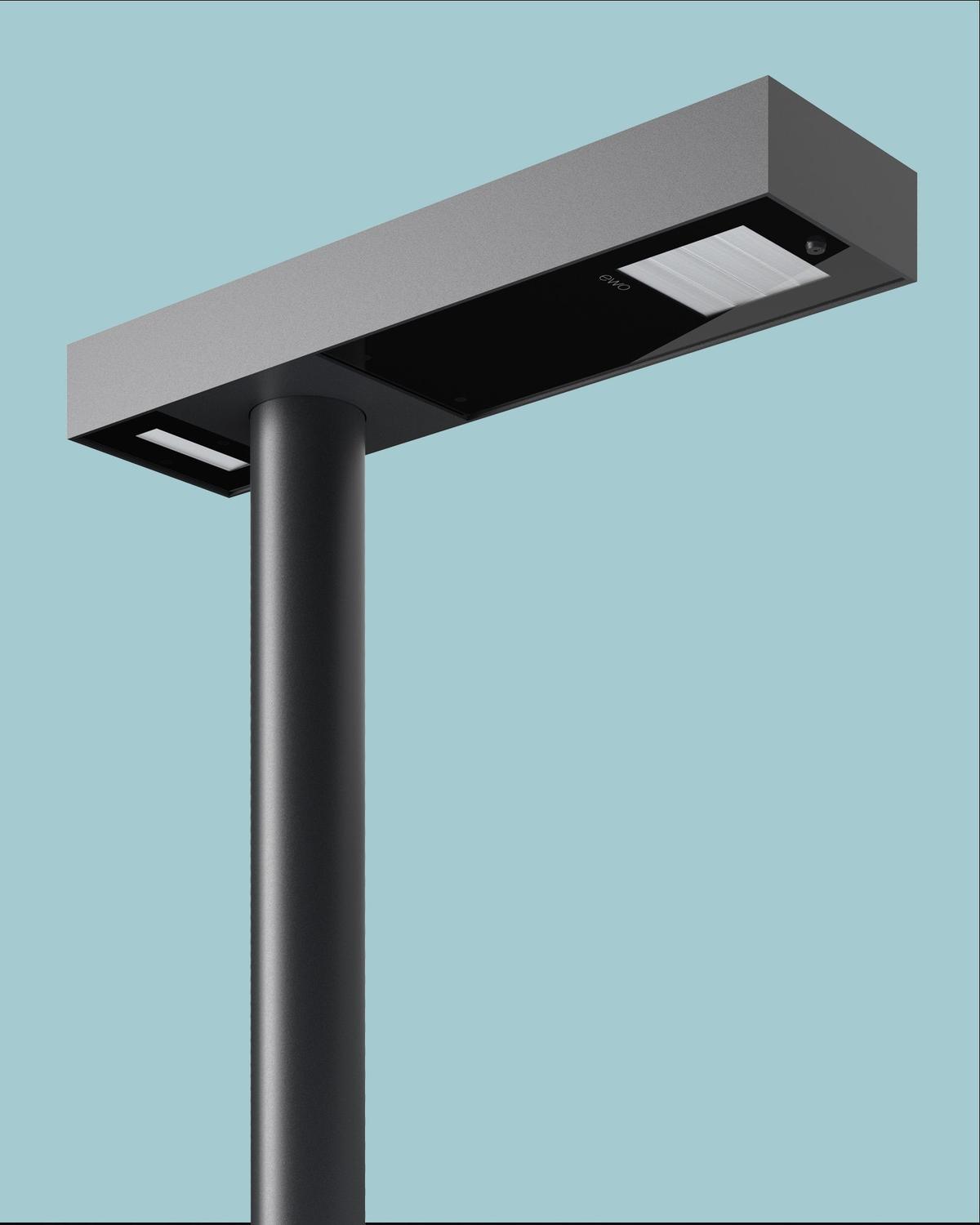

FN is a post-top luminaire designed with bi-directional light emission in mind. Up to 6 LED modules can be mounted on the main side of the luminaire, while another unit (in the FN-B version) can be mounted on the other side of the pole to illuminate in the opposite direction without the pole being an obstruction.

Solid construction

Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).

Technical data

A–Series

Current feed: 200 mA–700 mA, depending on ambient temperature (FN1300(-B) max. 550 mA)

Max. luminous flux 22,300 lm

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request

Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request

Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature

Max. Luminous flux 6,400

Color temperatures: Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90.

Electronic operating device with DALI T8 interface.

Body of Light

Pole–mounted luminaires
Pole FN

Pole
Pole–mounted
Rectangular
Powder coated
Monochrome
General illumination
Urban life

Shape of Light

Thanks to our modular system, the FN product family is compatible with a wide range of light distributions—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, the light can be further adapted to any requirements using systems such as ewoLightTile and ewoLightLayers.

Rombrücke bridge, Bolzano © Maramo Films

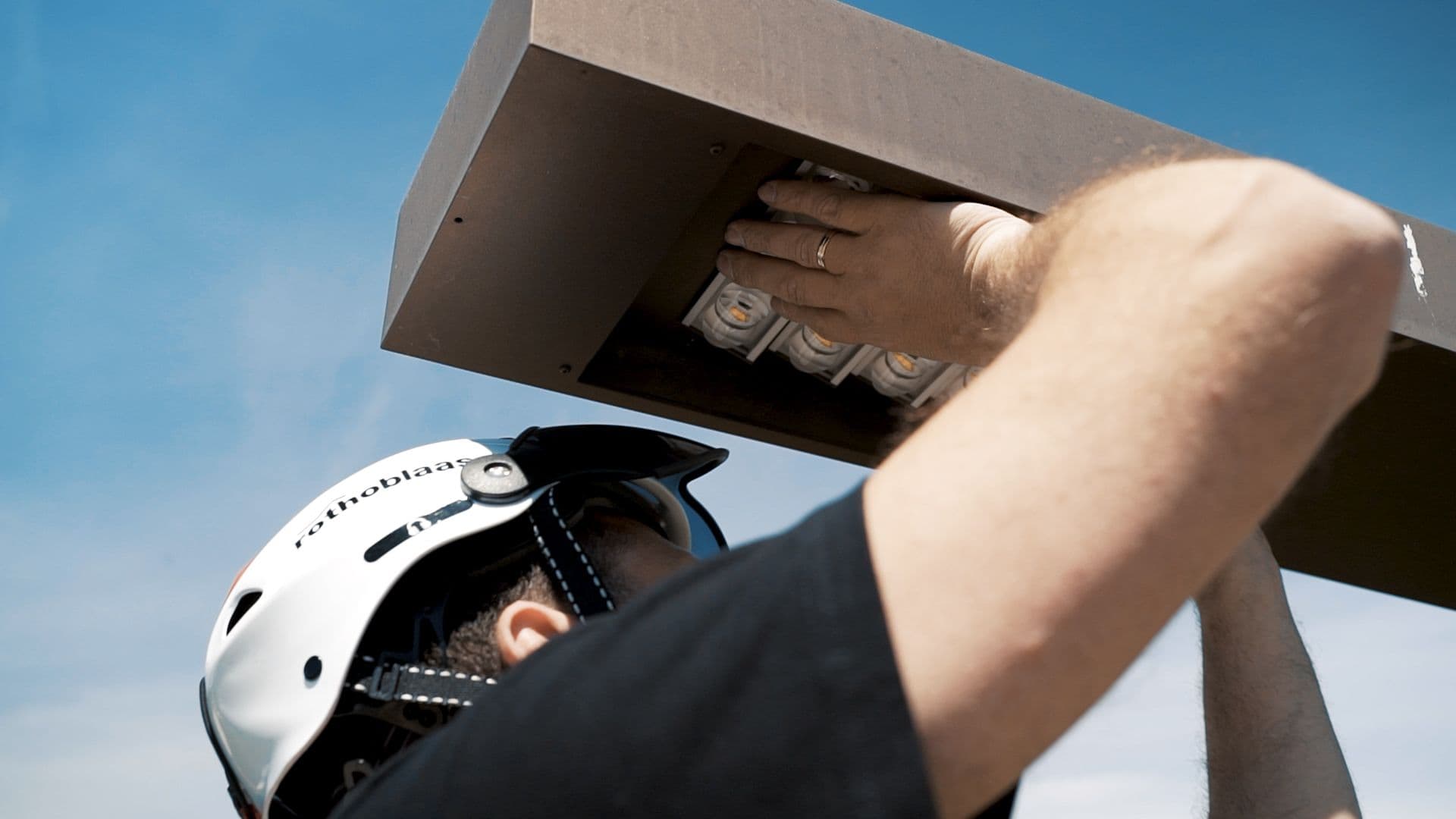

After 10 years, the FN luminaires on the Rome Bridge in Bolzano, Italy, were able to undergo a full update without having to be replaced

Rombrücke bridge, Bolzano © Oskar Da Riz

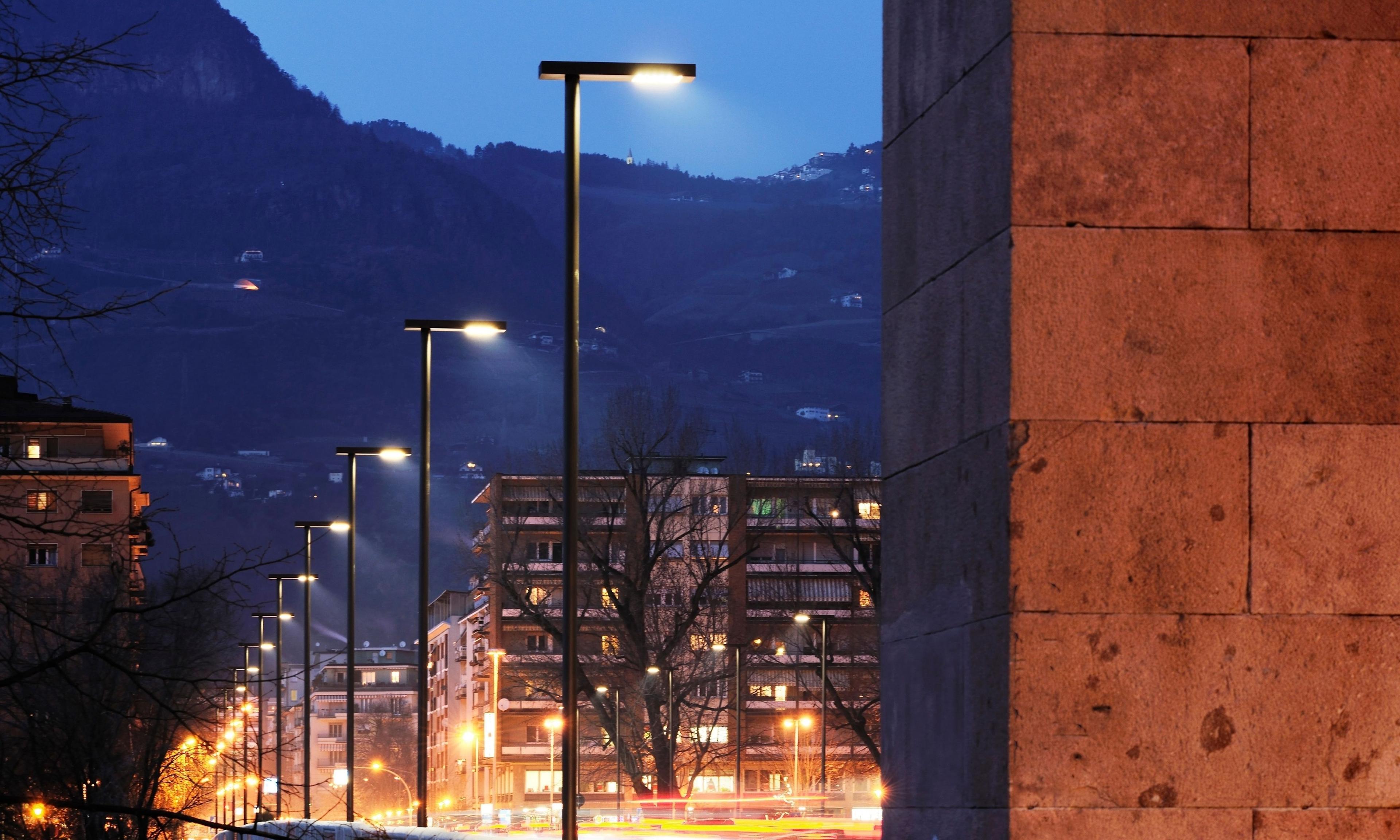

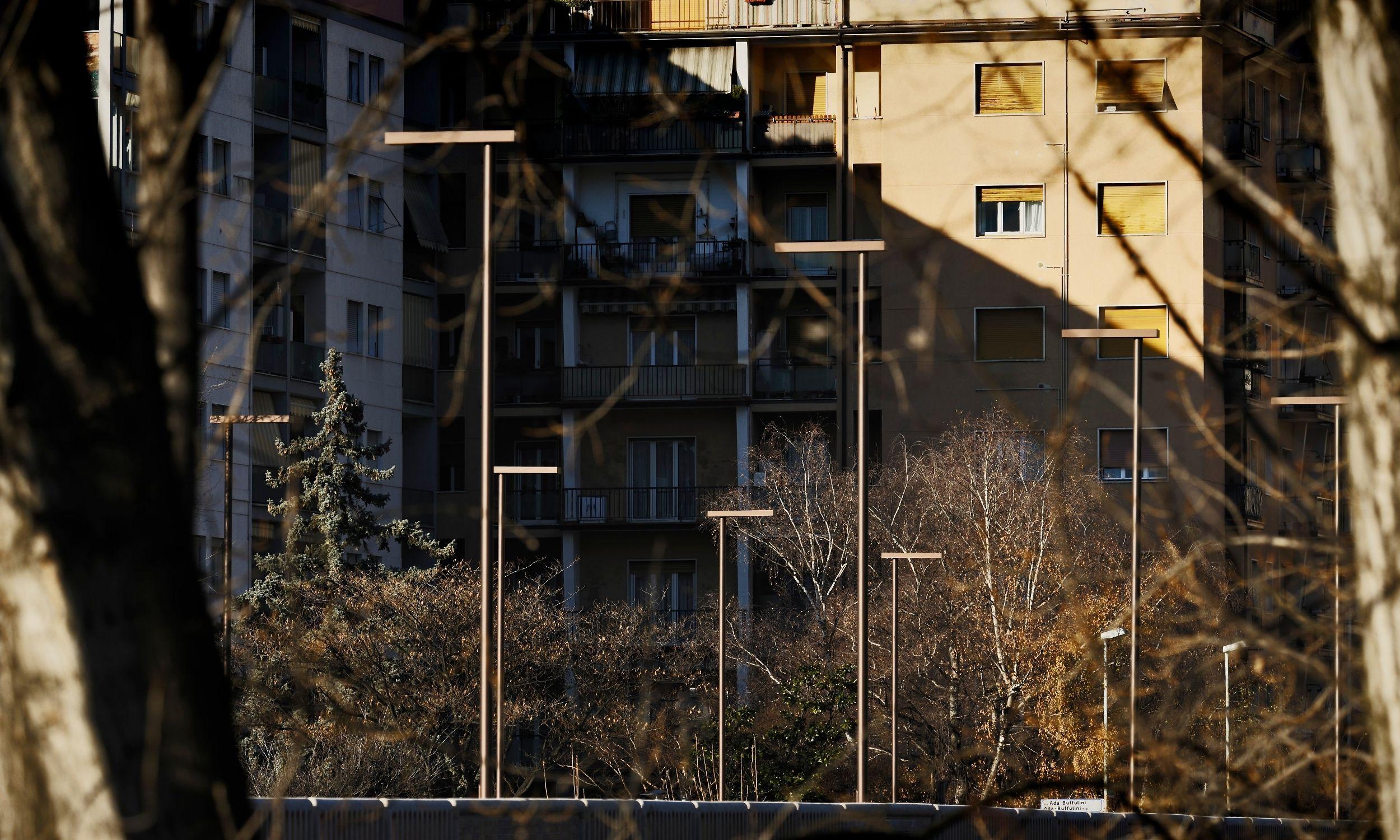

The Rome Bridge in Bolzano is fully illuminated by FN luminaires

Intelligence of Light

The FN product family is compatible with intelligent lighting control modules for different communication standards or an external Zhaga interface—these can be optionally integrated into the luminaire for integration into smart city networks.
