Product Family

The CN product family has several design options and a consistent design language, making it easy to integrate into any urban context.

CN

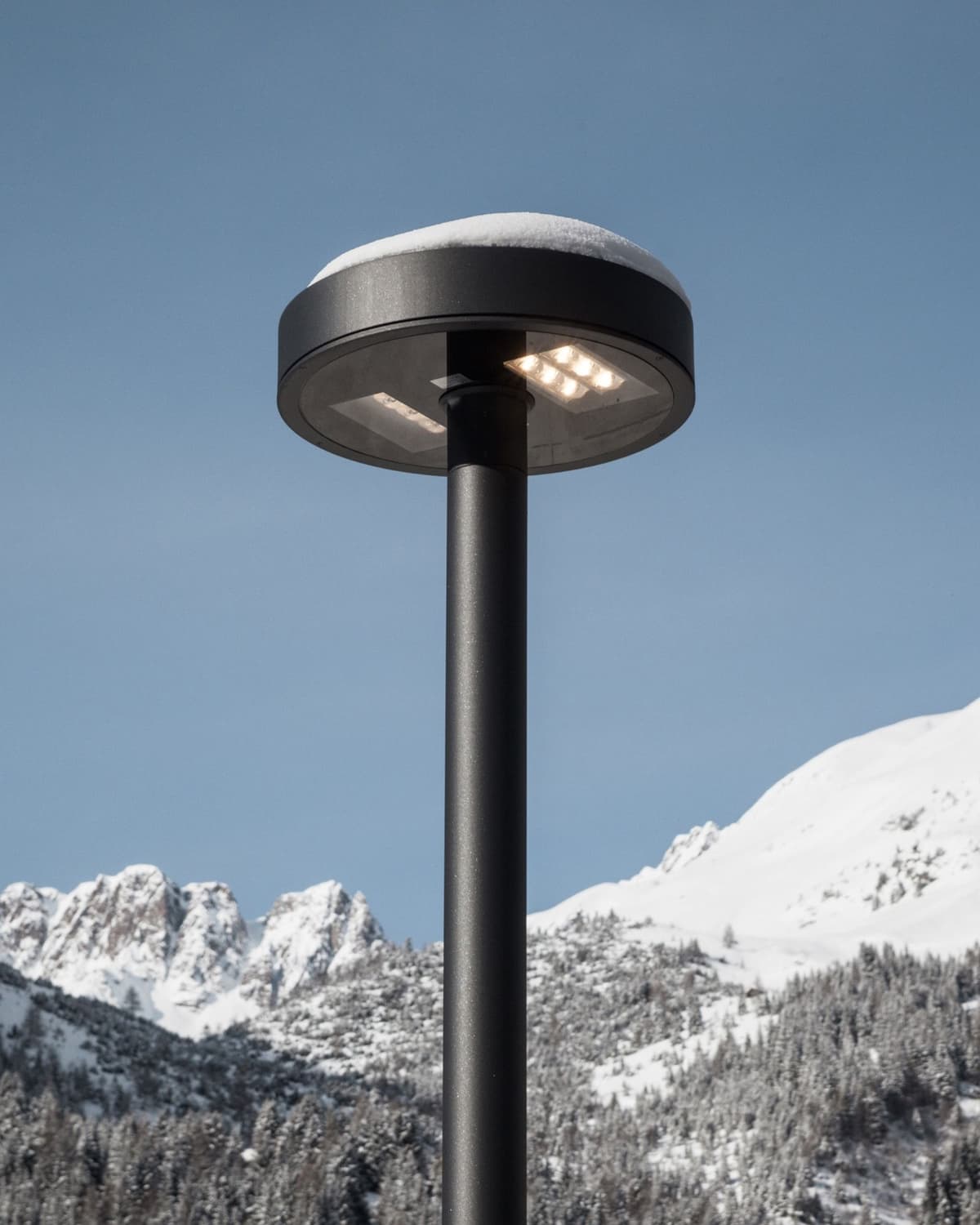

“Whether with four or two light units, CN is the ideal pole-mounted luminaire for urban spaces of all kinds thanks to its versatility and round, simple design.

What sets CN apart

Flexible functional light

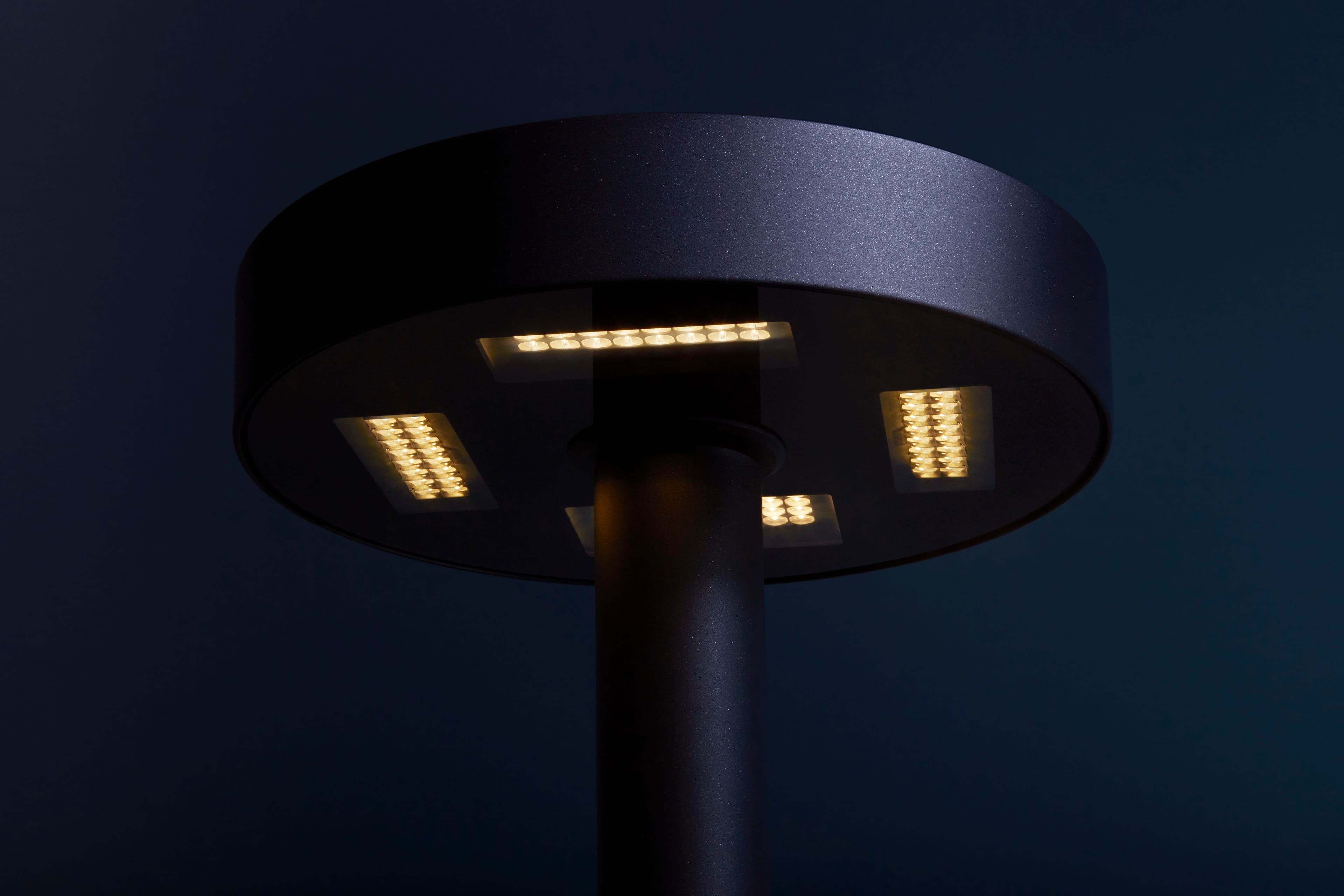

By using up to 8 modules with 16 LEDs mounted near the edges of the luminaire and a wide range of light distributions, CN can emit light specifically where it is needed—in any direction.

Round, modern design

Available in 500 and 600 mm versions, the round design is suitable for all applications requiring a round form factor. Low copper content ≤ 0.08% in the housing and option to add additional corrosion protection (ewoECP).

ewoLightLayers

It is possible to add factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (anti-glare protection).

Technical data

A–Series

Current feed: 200 mA–500 mA, depending on ambient temperature

Max. luminous flux 19,700 lm

Electronic operating device with DALI interface, 1–10 V or stand-alone programming

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request

Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature

Max. Luminous flux 7,300 lm

Color temperatures: Tuneable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90

Electronic operating device with DALI T8 interface.

Body of Light

Pole–mounted luminaires
Pole CN

Pole
Pole–mounted
Round
Powder coated
Monochrome
General illumination
Urban life

Shape of Light

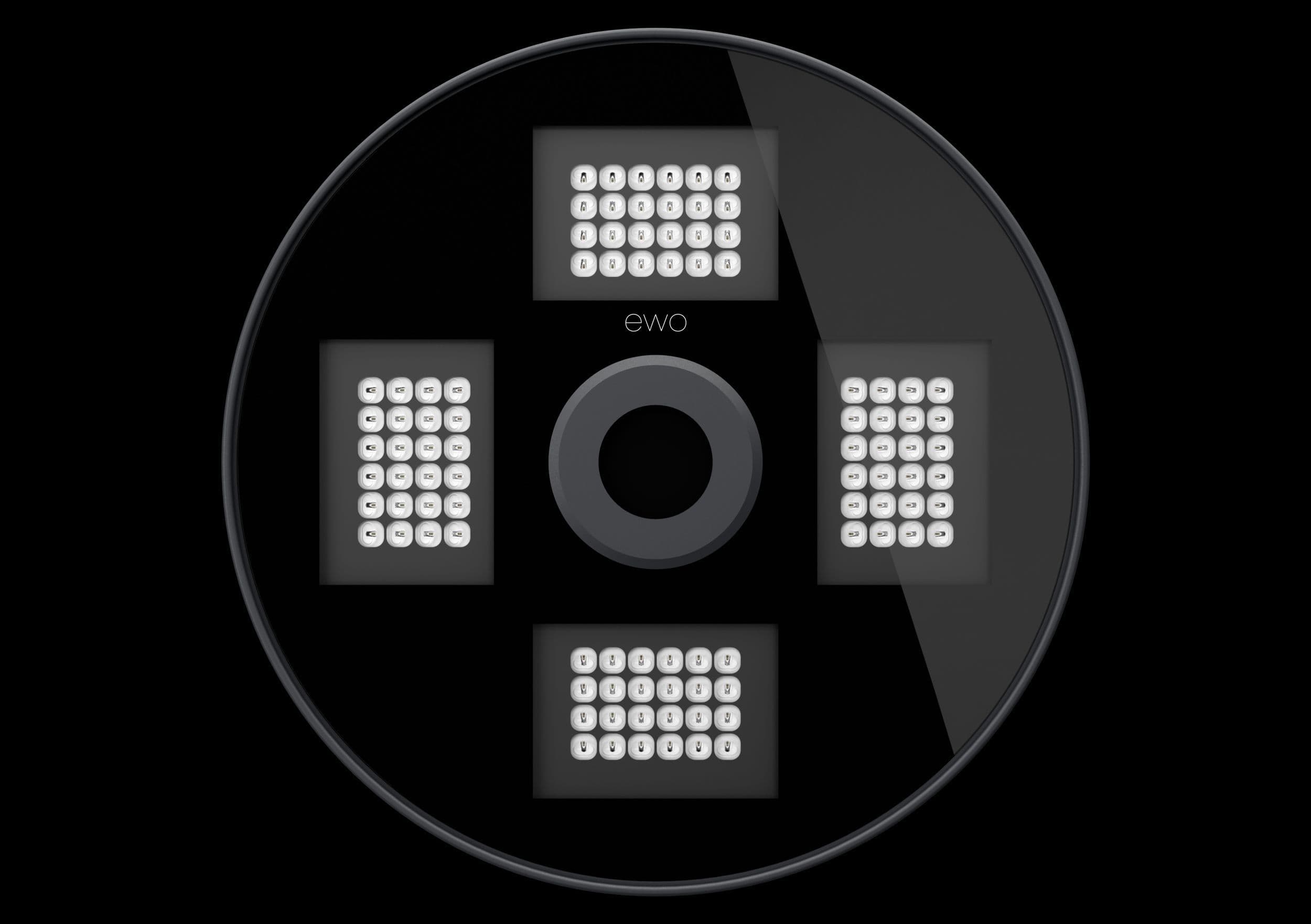

The CN product family can be equipped with up to 8 modules with 16 LEDs. It is therefore compatible with a wide range of light distributions—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. The light can also be additionally adapted to any requirements using systems such as ewoLightTile and ewoLightLayers.

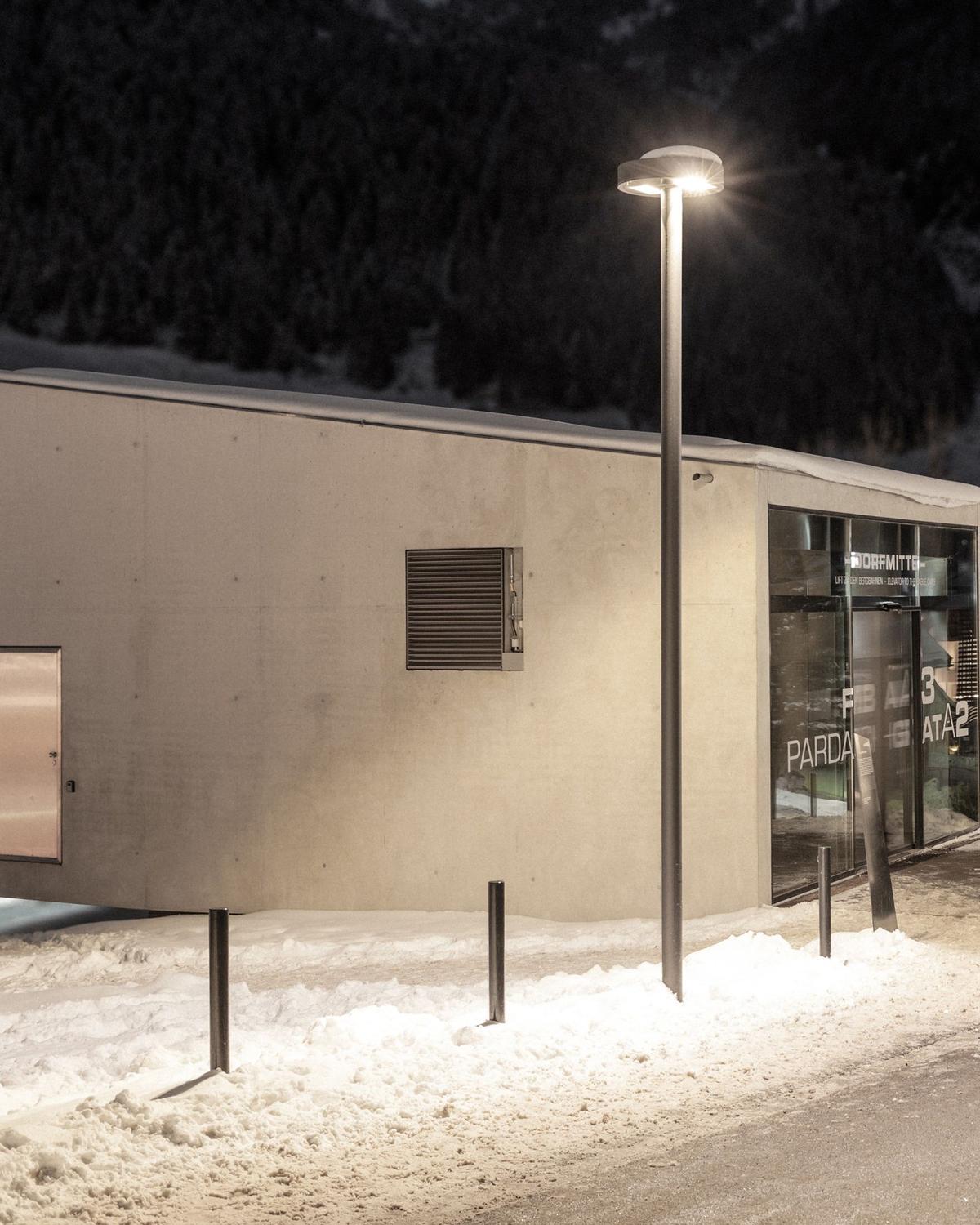

St. Nikolaus community culture center, Ischgl © Florian Brenner

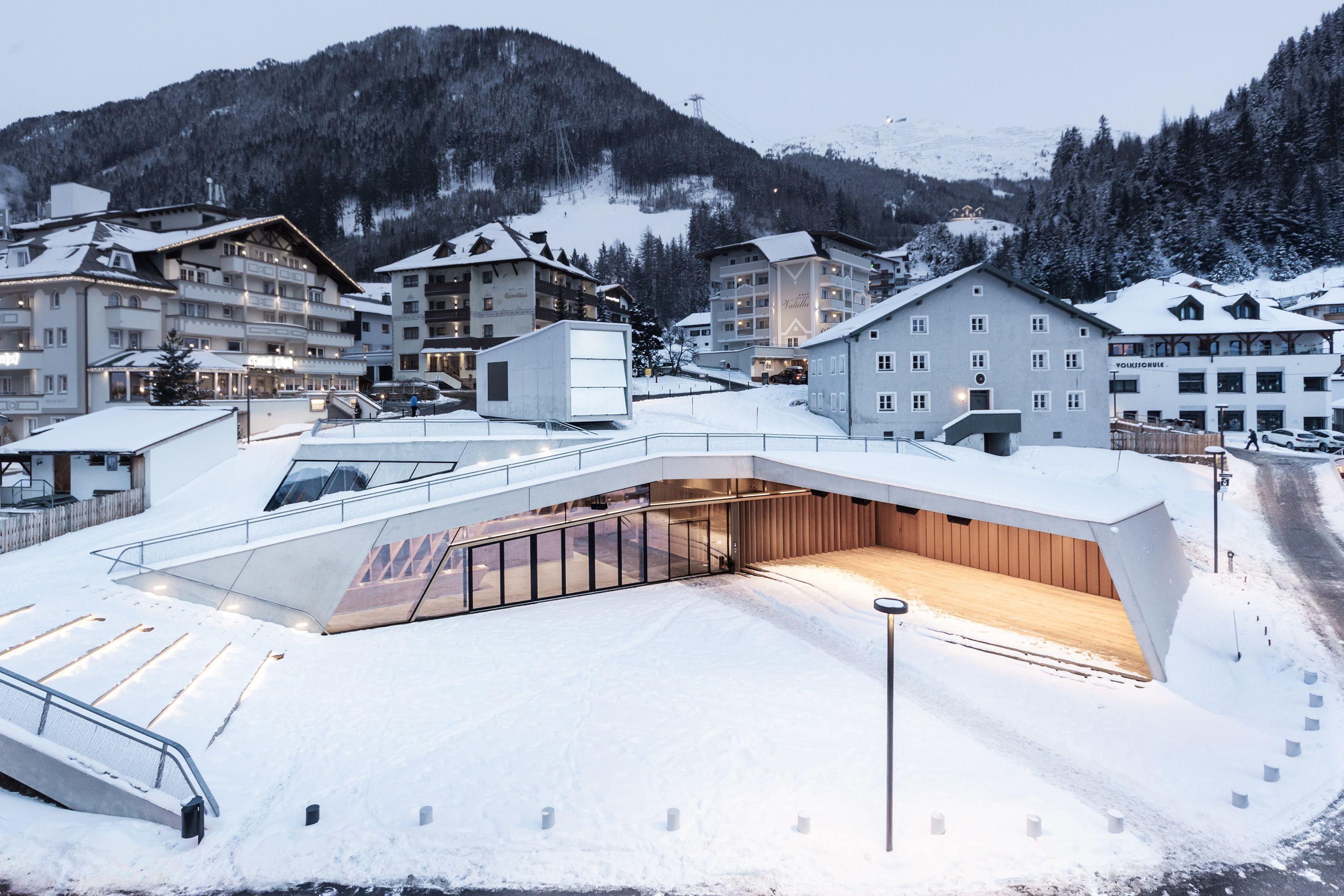

CN in the outdoor area of the St. Nikolaus community culture center in Ischgl, Austria

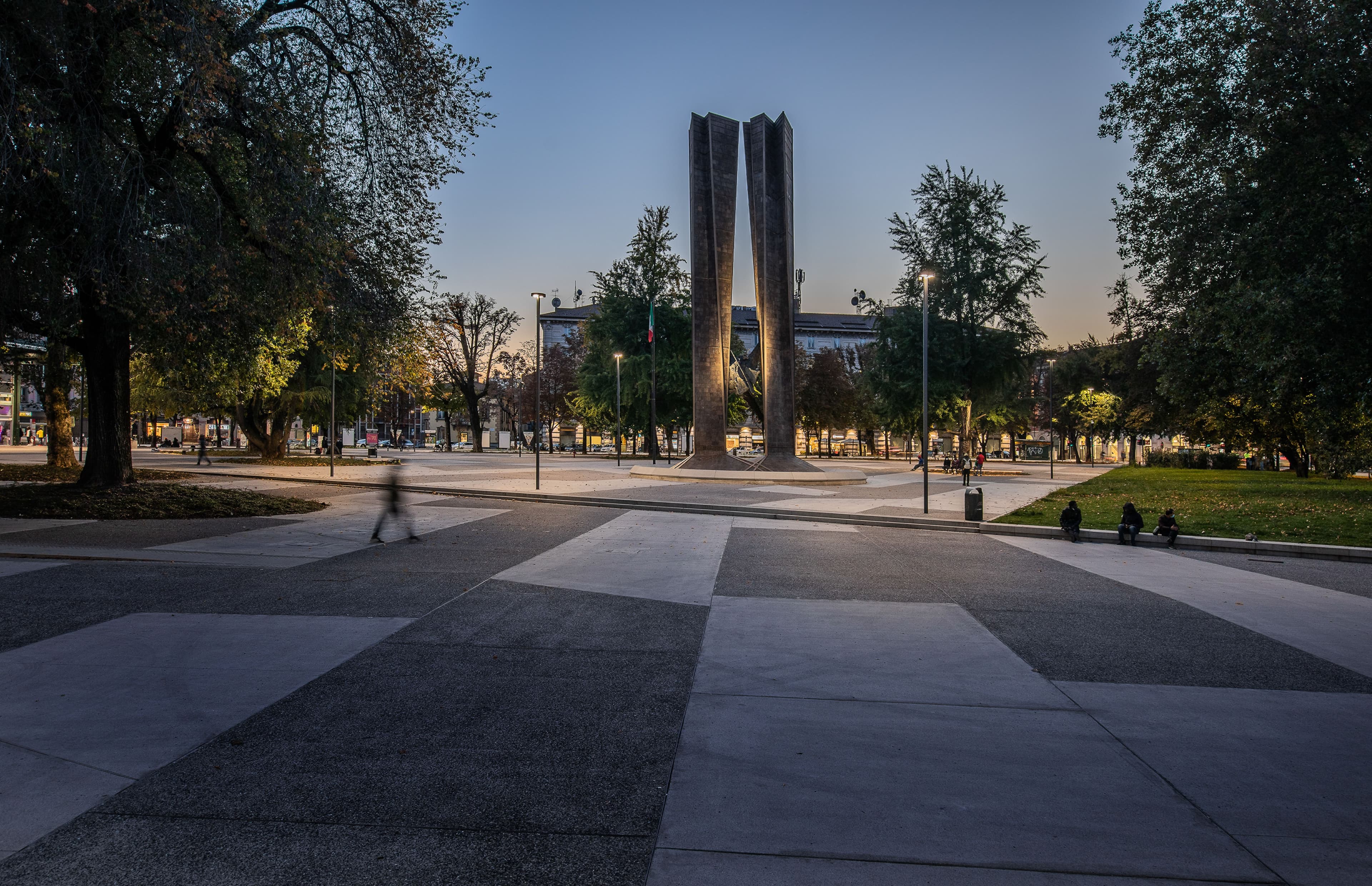

Piazzale Degli Alpini park, Bergamo © Paolo Stroppa

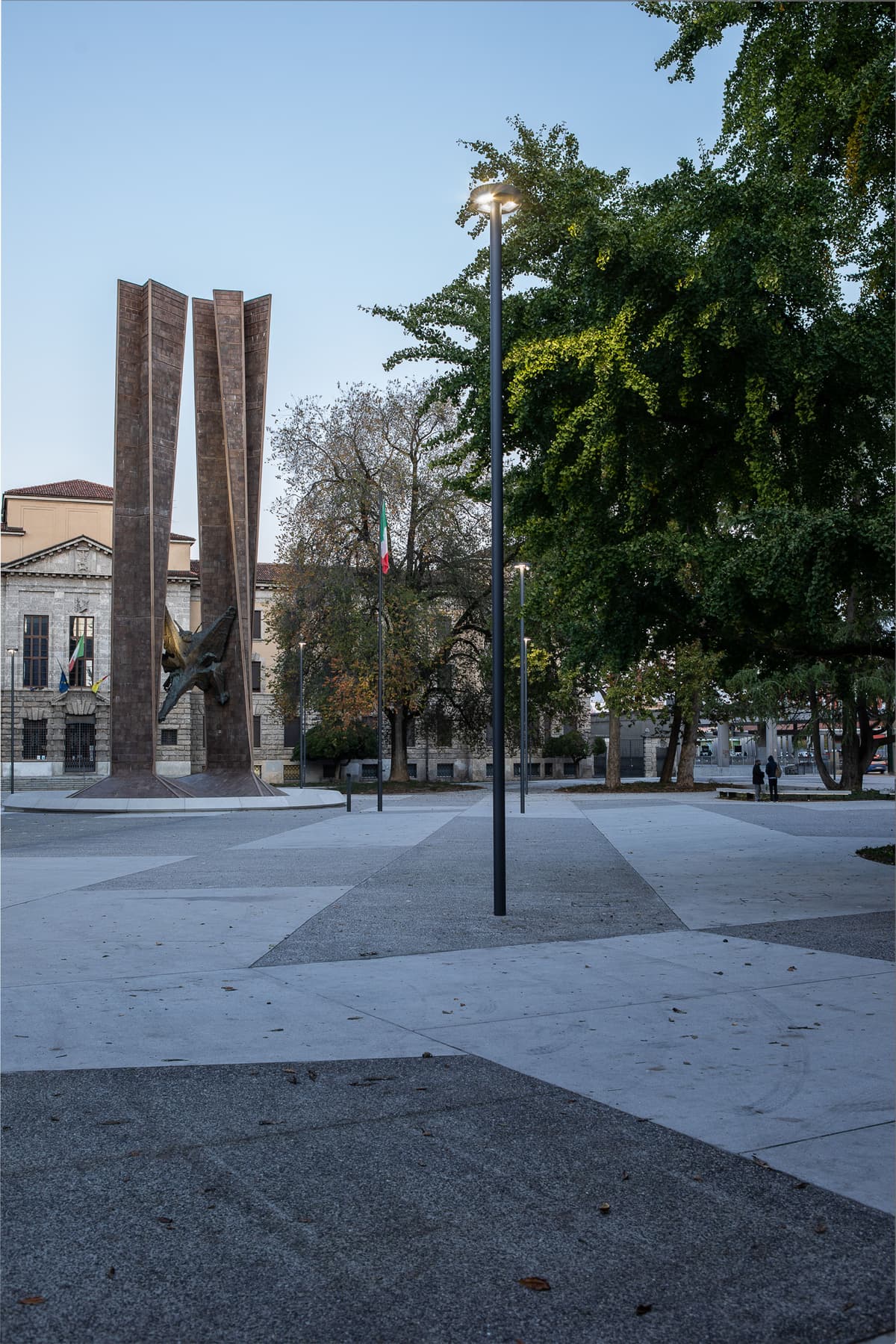

The Piazzale Degli Alpini park in Bergamo, Italy, is illuminated by CN

Intelligence of Light

The CN product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.
