EC is much more than just a luminaire. It’s a tool to transform city squares into stages, to start the visitor experience outside the venue, and to create a unique corporate lighting for brands.

EC

“EC lets you add an emotional lighting layer that can completely transform a space. That‘s when Urban Lighting becomes Identity Lighting.

What sets EC apart

4-in-1 Optic

Four segments, each individually controllable and with its own adjustable light distribution: thanks to its lens optics, EC is a strong choice for urban spaces where different lighting requirements converge.

Smart City Ready

From stand-alone to cloud service: Integrate sensors into EC to monitor luminaire data, or use environmental data to support urban planning.

Responsible Lighting at Night

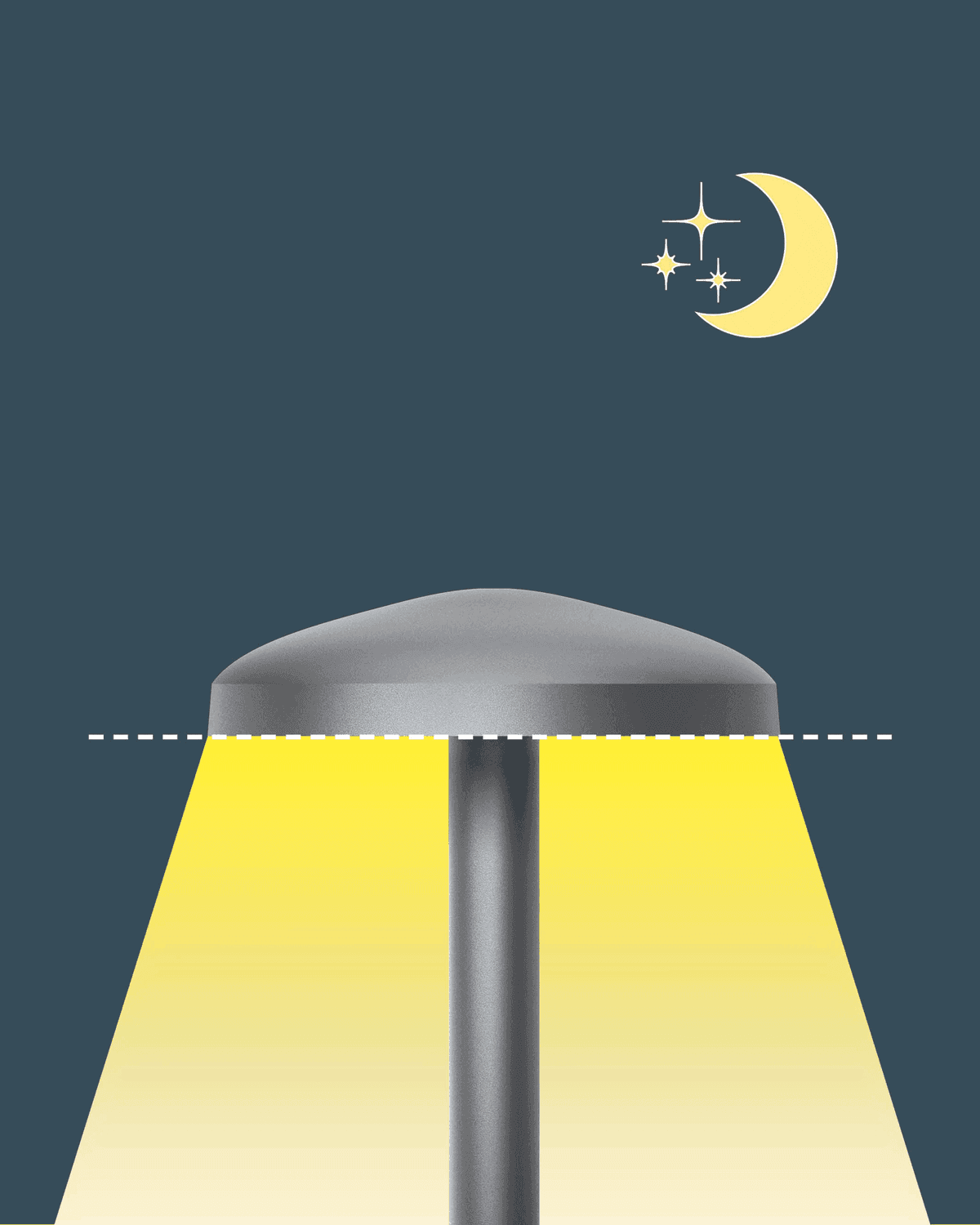

Maximum experience, minimum emission: no light above the horizontal and a glow function that can also be used for visual guidance when the lighting level is lowered.

Body of Light

Pole–mounted luminaires
Pole EC (M1 / M1-C / M1-H)

Wall luminaires

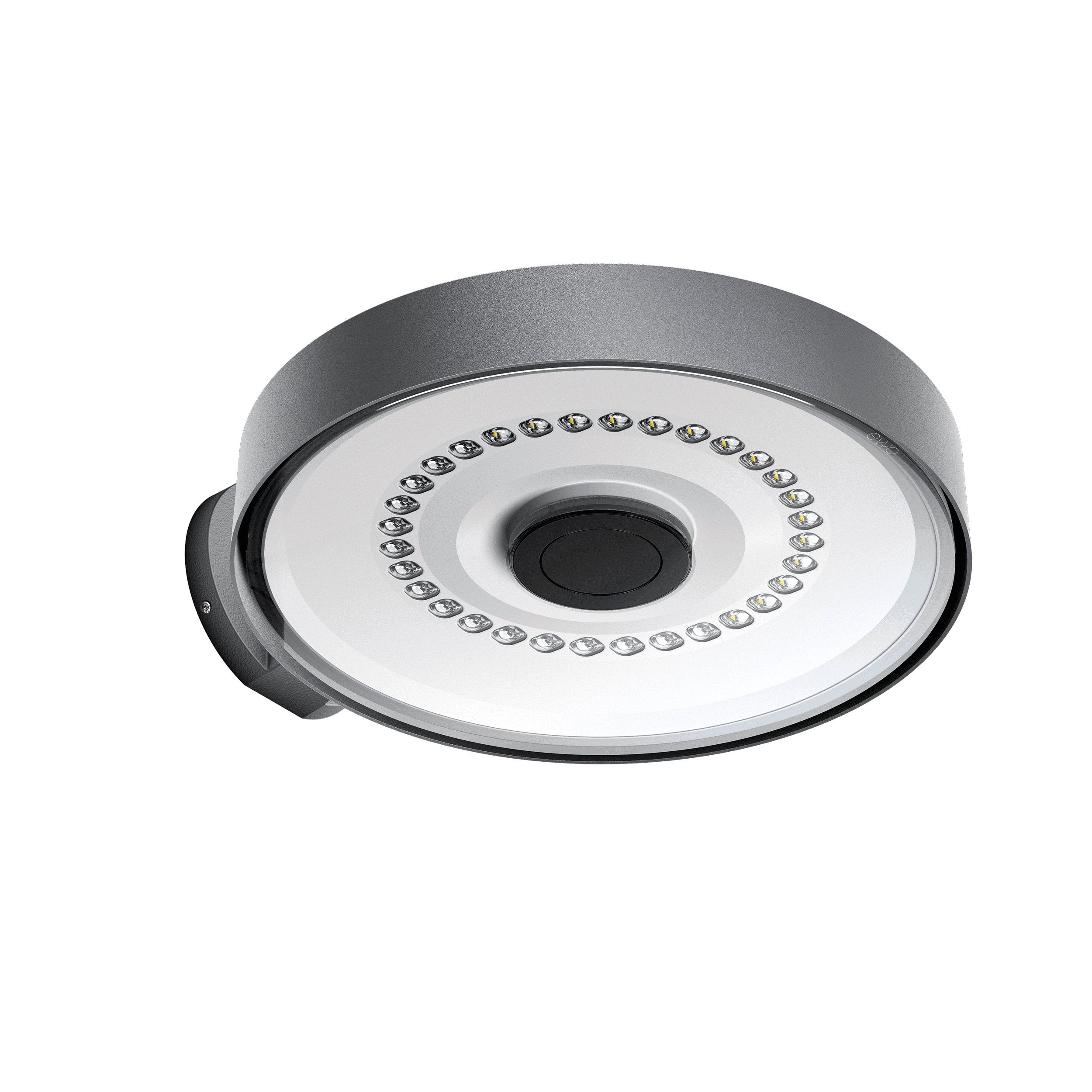

Wall EC

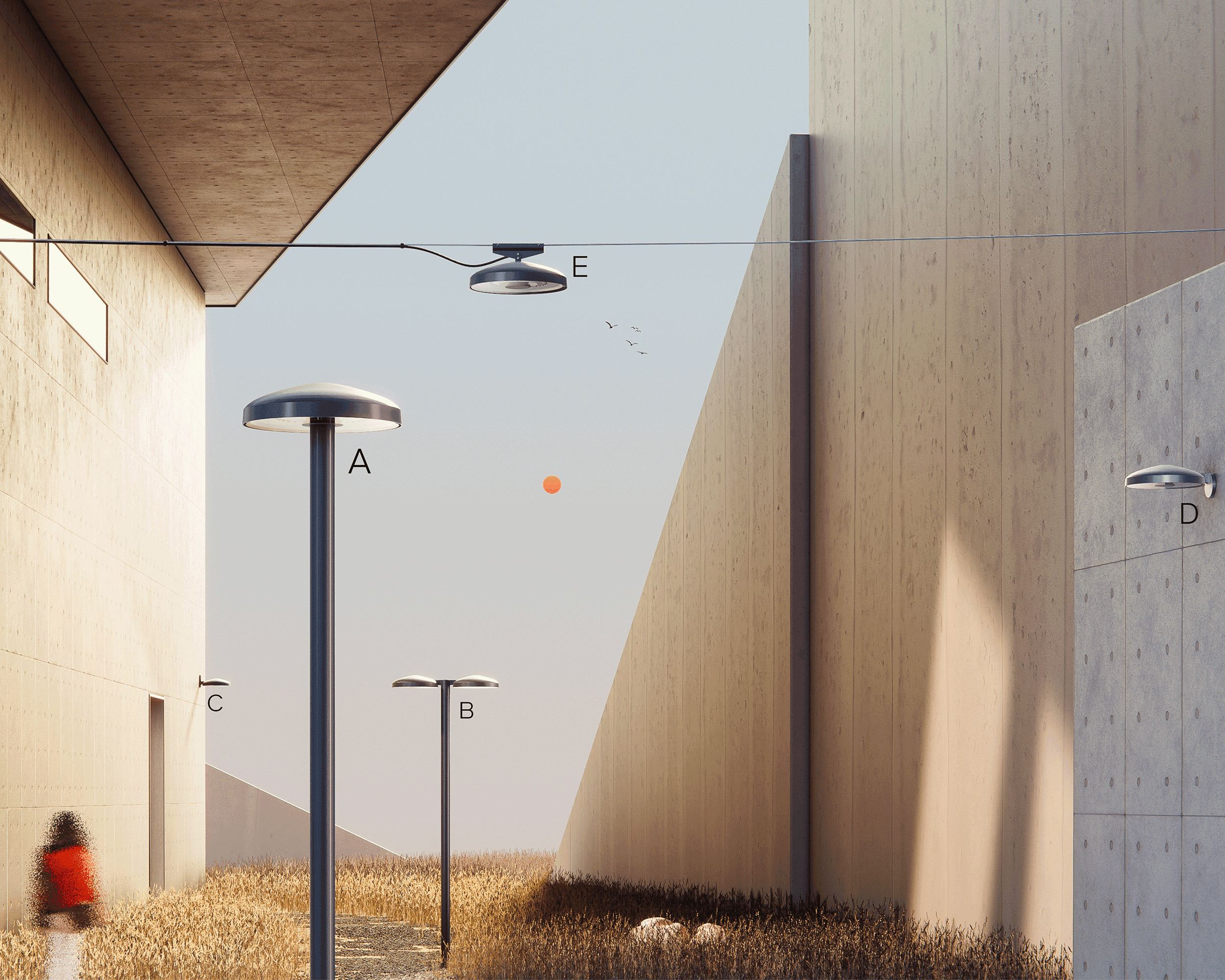

Fit EC into any environment by making use of its versatile mounting options ranging from a central pole top (A) and 90° pole top (B) version to side arm (C) and wall (D) mounting or using a catenary mounted version (E).

Shape of Light

4-in-1 Optic: Standard compliant Functional Lighting

To overcome the constant trade-offs between mounting location and light distribution, we designed EC with modular optics, giving you unprecedented design freedom for functional lighting.

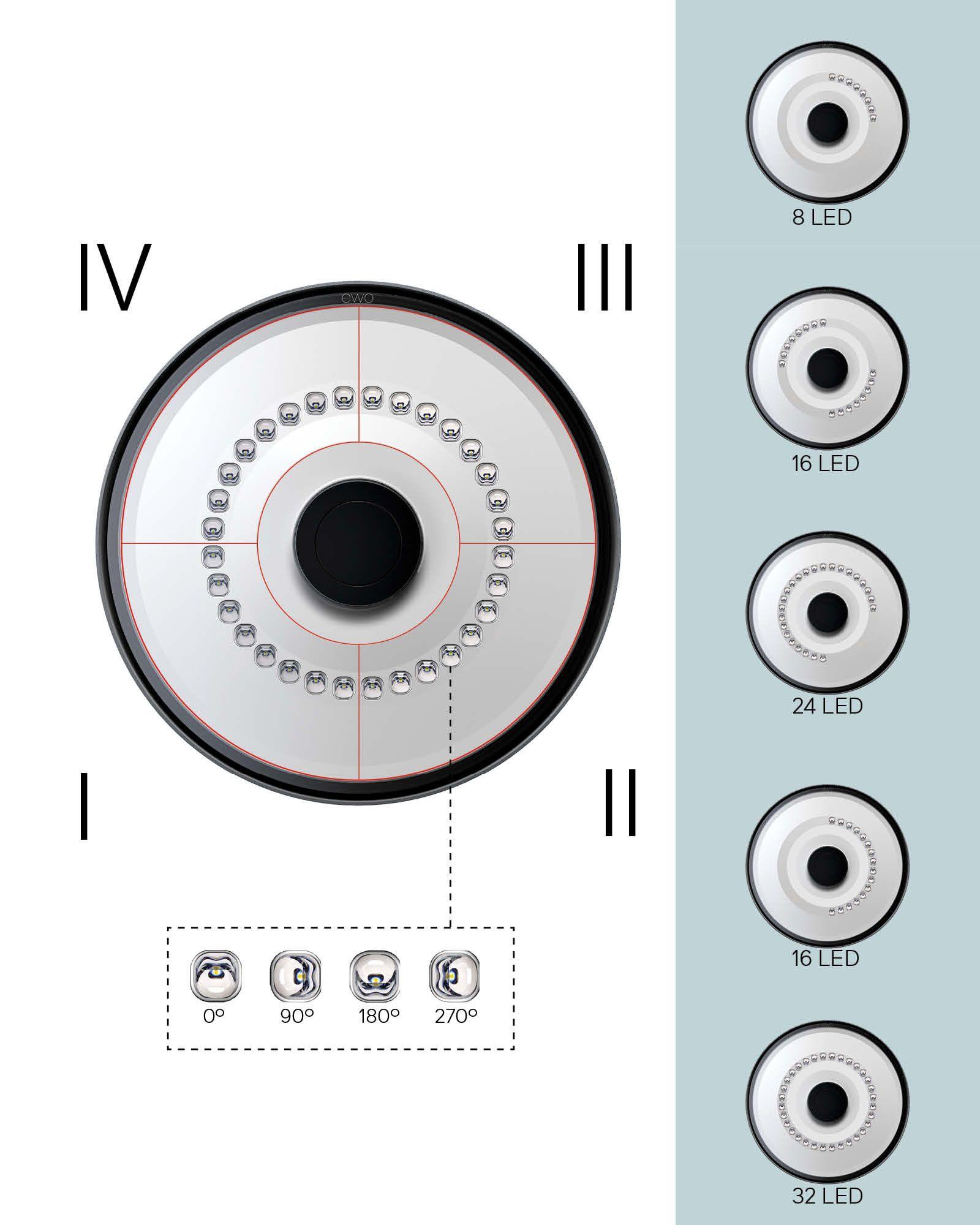

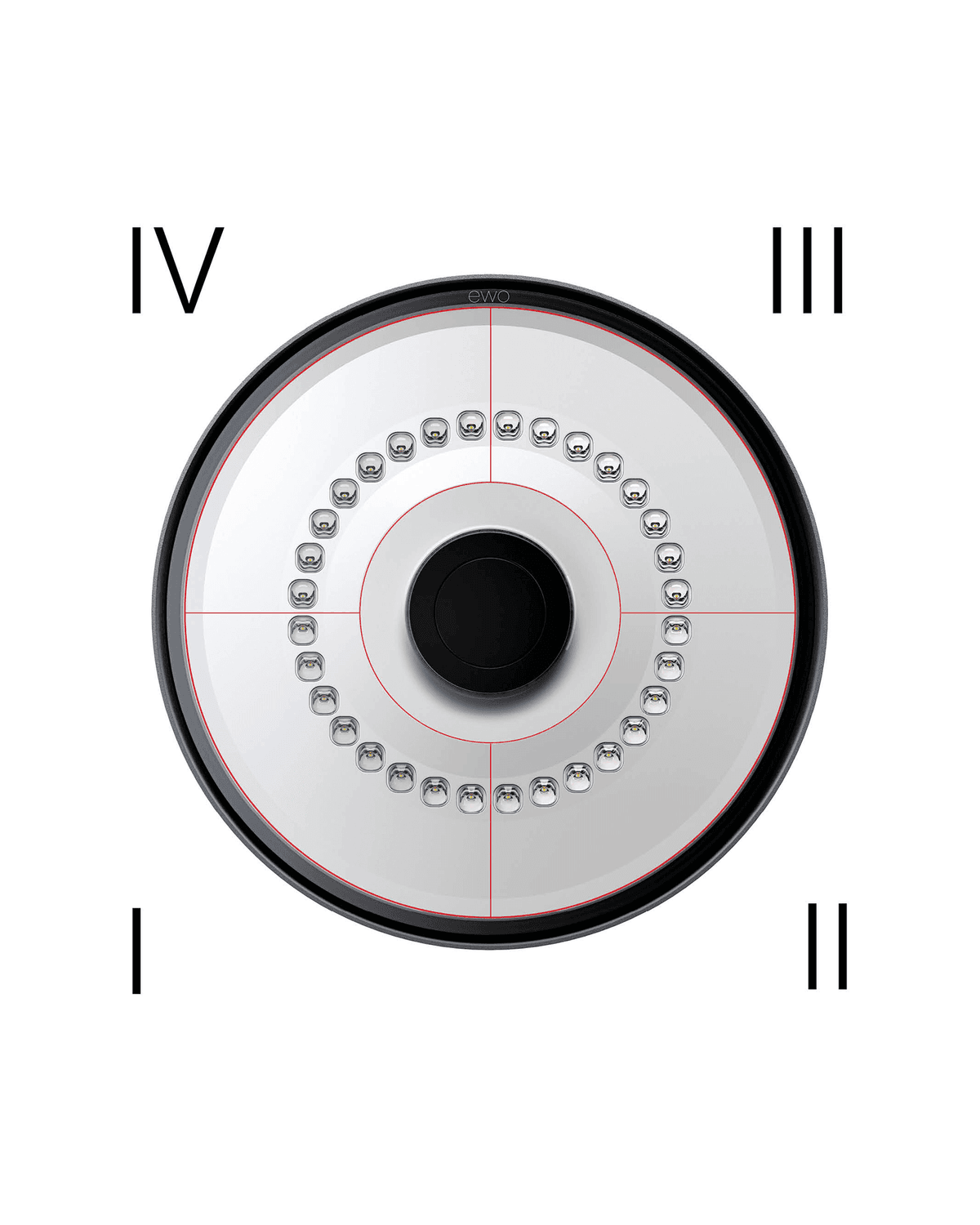

The EC lens array is divided into four segments. Each segment can be equipped with a different light distribution if needed. Thanks to the square footprint of the lenses, the light distributions can be rotated in 90° increments.

EC illuminating a footpath and street corner

Ignacio Merino

Glow-Ring: Transformative Identity Lighting

Add an emotional layer to your urban lighting scheme or expand the capabilities of your lighting concept by using the optional glow function.

Enhance the visitor experience by incorporating brand colours into the lighting scheme.
Transform the atmosphere of a space for events or seasonal festivities by using the RGBW glow.
Give directions or use the glow as a temporary marker for meeting points or emergency routes.
Remain visually oriented if the functional light is dimmed or switched off late at night.
Switch to a dimmed light with an insect-friendly spectrum when there is no traffic.

Intelligence of Light

Individual control

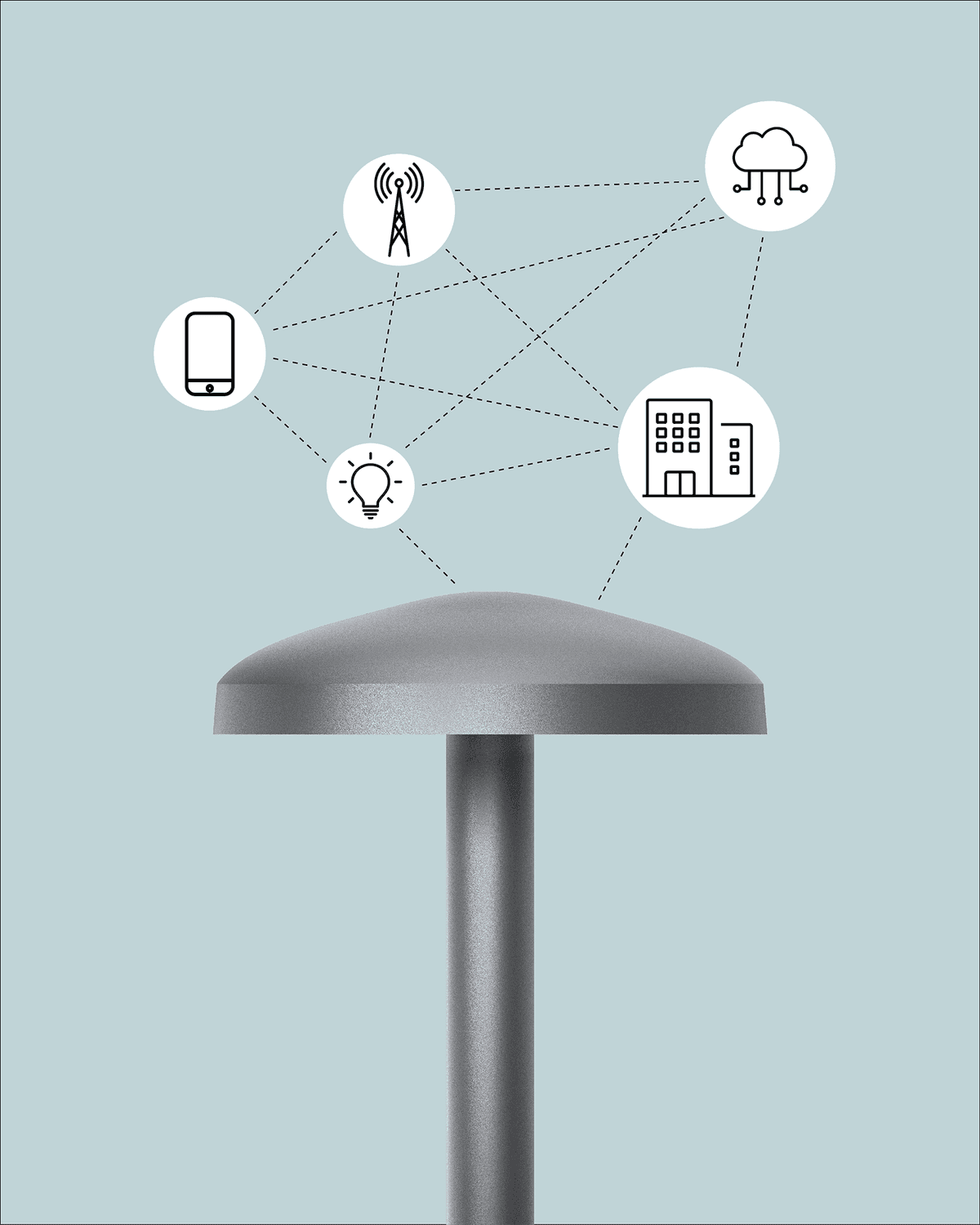

EC offers various control options for projects of different scales, whether set up as a local network, connected to a cloud service or integrated into a smart city grid. It also allows for the integration of third-party sensors. Within the luminaire, the glow function and each quadrant of the functional light can be controlled and monitored individually.

Program and control scenes either via app on site or remotely via a cloud service.
Choose between programmed scenes, sensor-triggered scenes, or commands passed on by public lighting or building management systems.

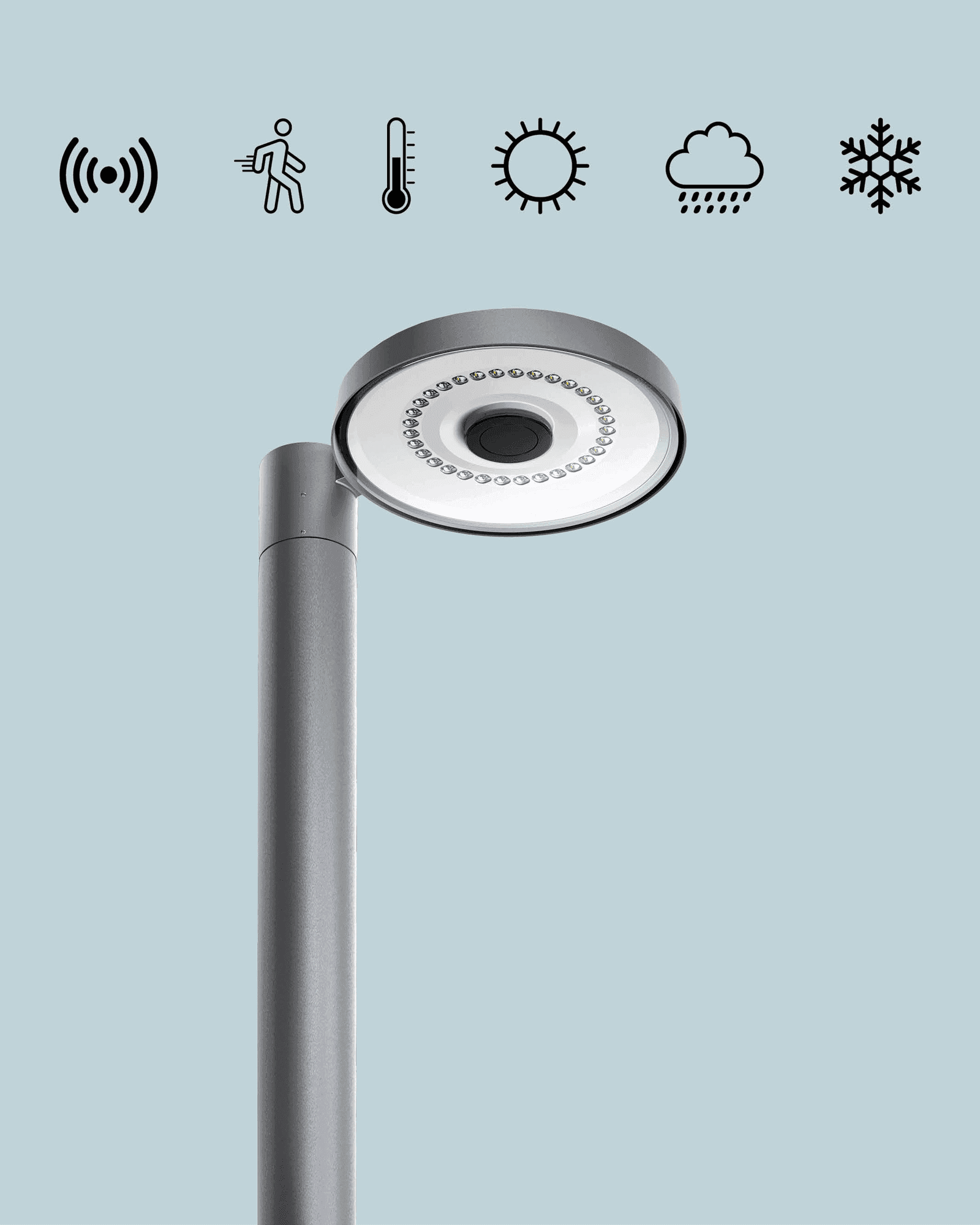

Integrate third-party sensors (upon request) to collect environmental data such as climate data or pedestrian frequency.

Are you looking for solutions to map pedestrian flows using heat maps, or to assess local conditions such as precipitation based on climate data? With our connex-X lighting control system, EC can act as a data source in urban areas.

connex-x is the intelligent lighting control system for outdoor areas. With the “connex-x Leitfeld” web application (A), you can define switching actuators and program luminaire-specific dimming curves and color sequences - all from the comfort of your desk. On site, an app gives you access via smartphone (B). Alternatively, you can call up pre-programmed scenes locally via sensor control or connex-x Smart Switch (C). Of course, EC can also be integrated into a lighting control system via DALI (D) and is available as a switchable (E) version.

Designed by Jörg Boner

EC was designed by Swiss designer Jörg Boner: "The rounded shape of EC, which is inspired by the traditional lampshade, evokes a sense of familiarity in the viewer on the one hand and blends perfectly into urban landscapes on the other."
