Product Family

Dynamic light transforms public spaces into refuges and improves people's well-being. EL creates precision even for problematic lighting schemes, without any unwanted glare and with excellent color mixing.

EL

“EL is a product family that provides pleasant light and a sense of well-being outdoors both independently and as an additional lighting unit that can be integrated into other products.

What sets EL apart

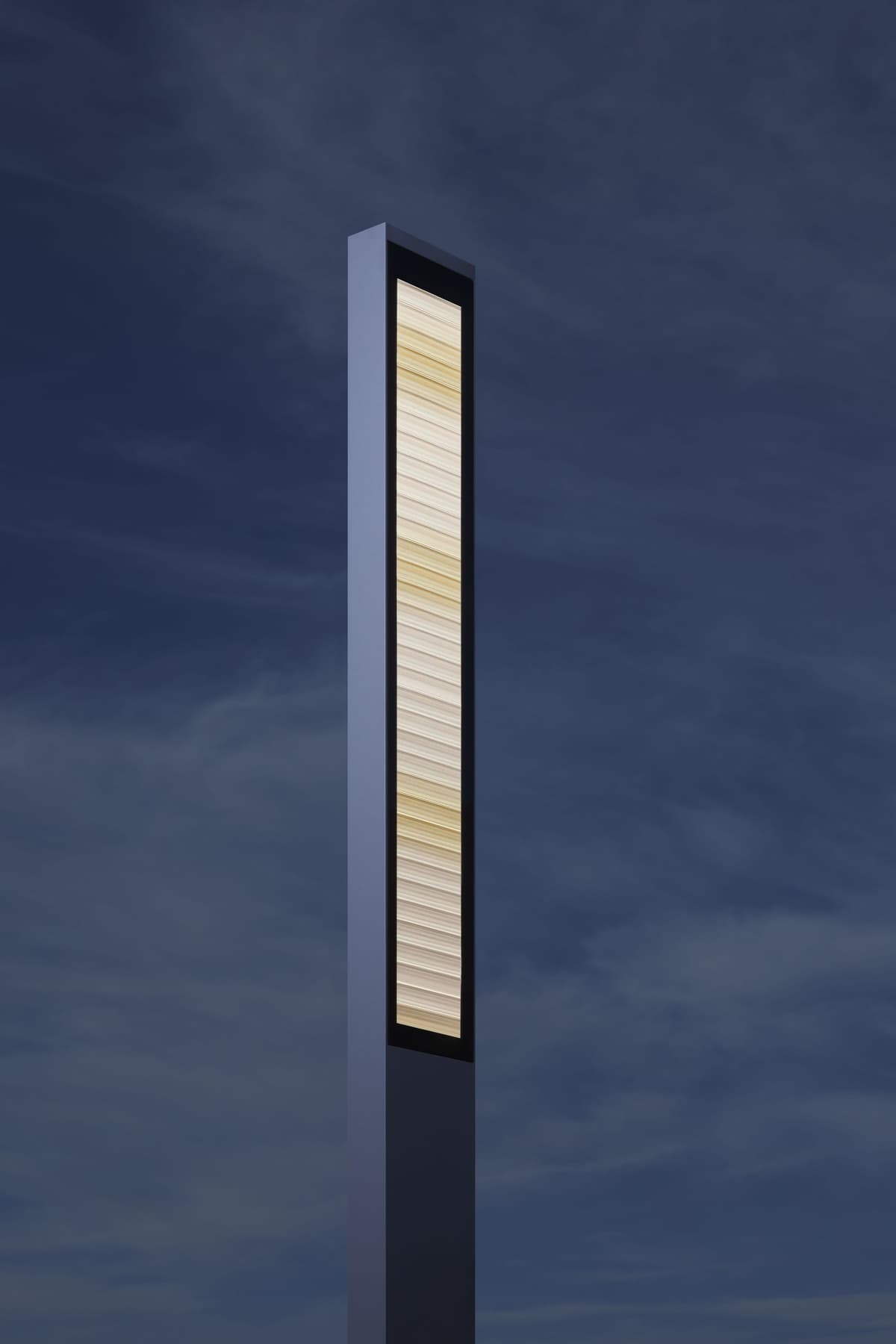

Architectural column solution

With its slim, linear design, EL is designed to illuminate pathways, pedestrian areas and facades from a vertical position. It is the ideal product for projects that require a minimal linear design without compromising the optical lighting performance.

Visual comfort with the T–Series

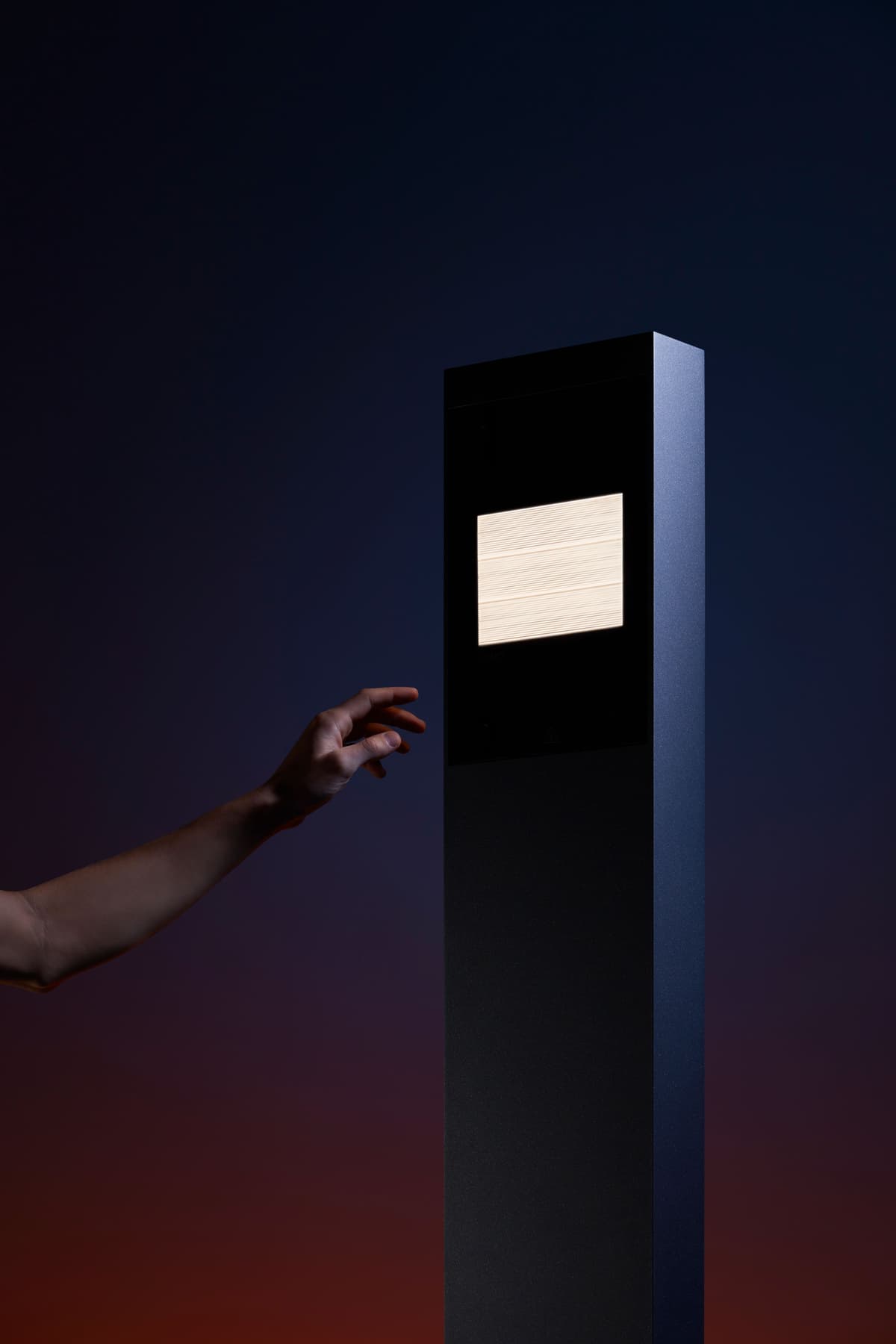

When using ewoLightTile, EL can offer a high level of visual comfort even though the light is emitted from a vertical position.

Low copper, high resistance

Housing with low copper content ≤ 0.08% and the option of adding additional corrosion protection (ECP).

Technical data

A–Series

Current feed: 200 mA–600 mA, depending on ambient temperature

Max. luminous flux 45,500 lm

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request

Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request

Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature

Max. Luminous flux 2,700 lm

Color temperature Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90

Electronic operating device with DALI T8 interface

Body of Light

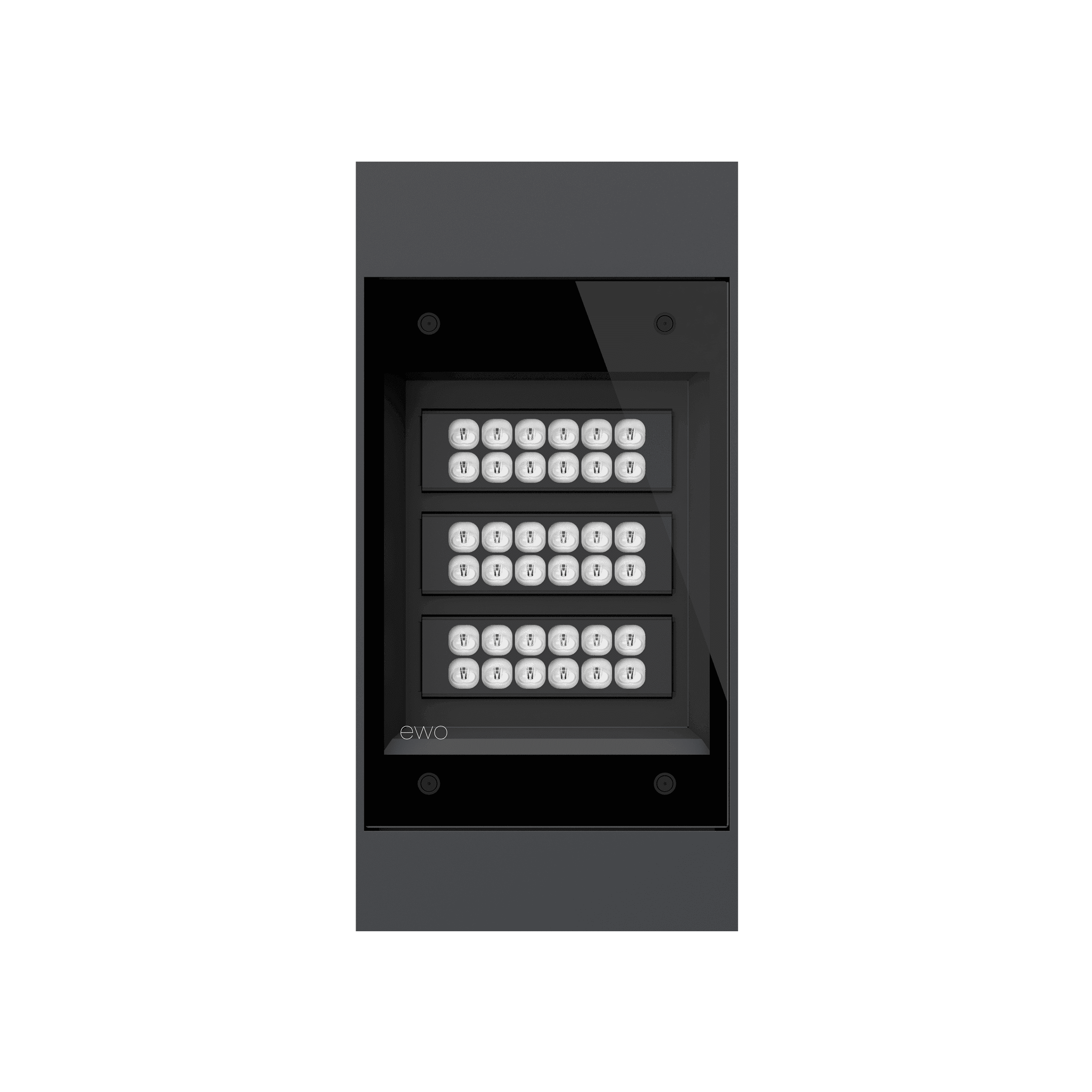

Wall luminaires
Wall EL

Wall
Recessed
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

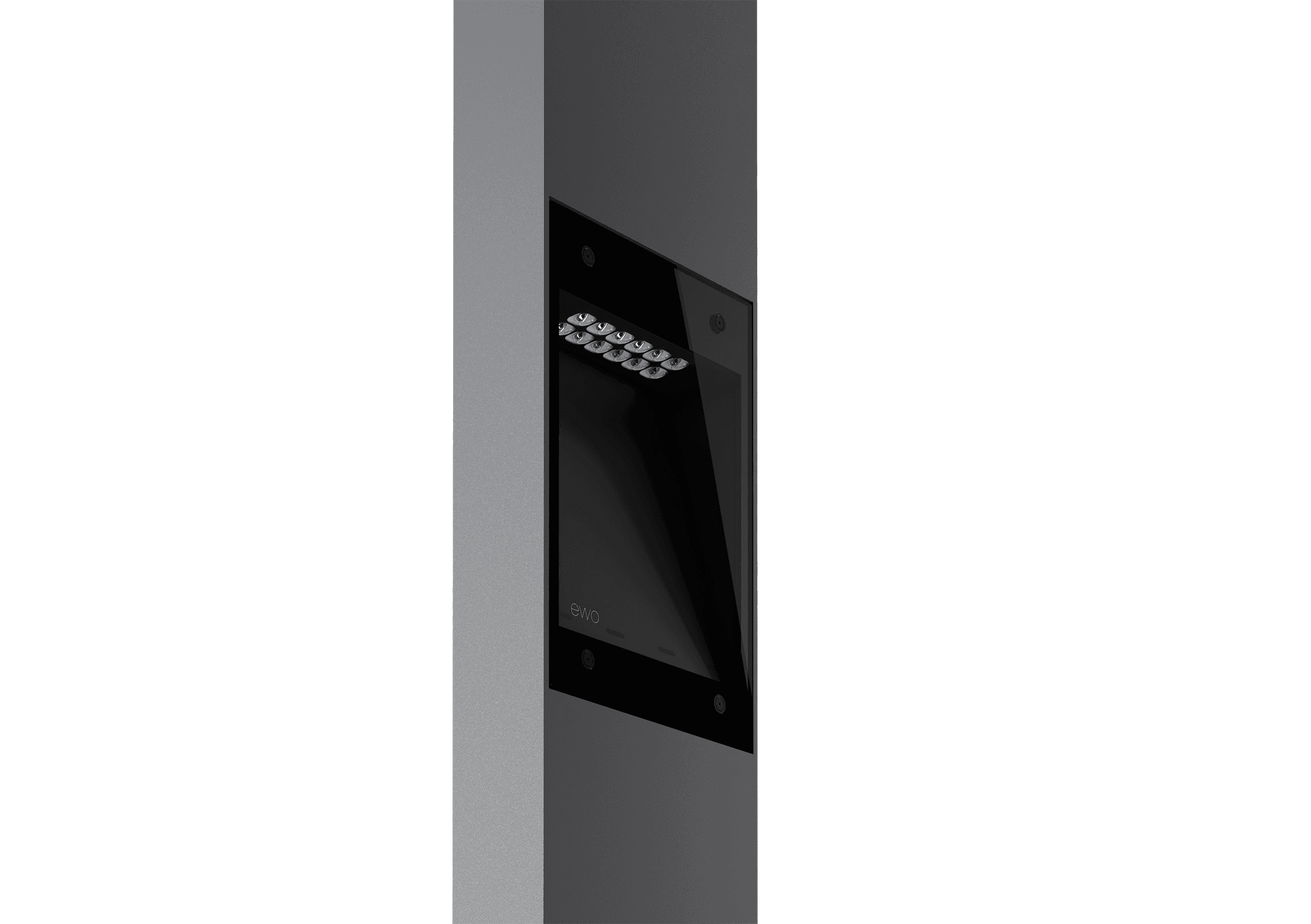

Light columns
Column EL

Pole
Recessed
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

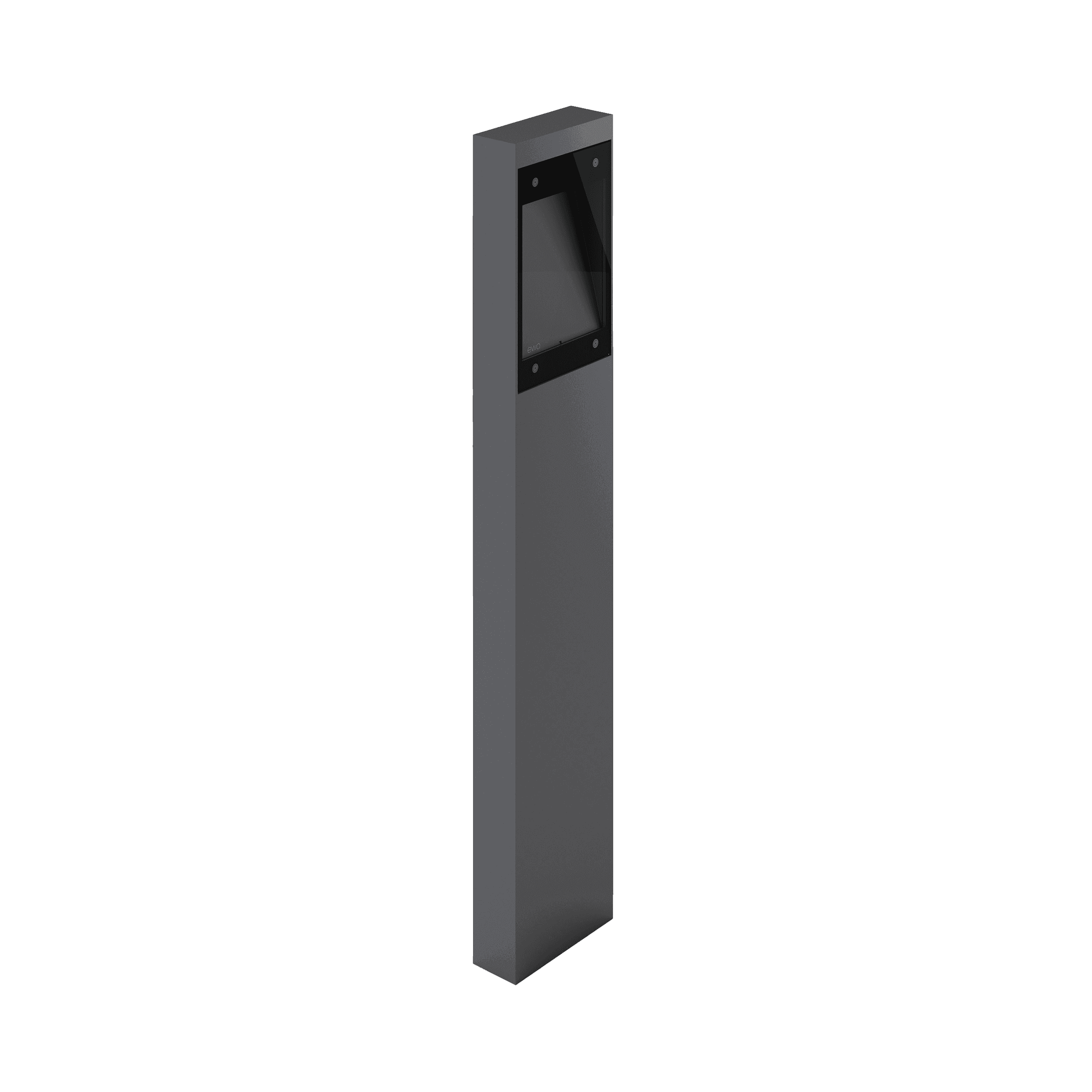

Bollards
Bollard EL

Pole
Surface–mounted
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

Shape of Light

The EL product family is compatible with a wide range of light distributions thanks to our modular system - the A–Series product range alone allows 1,799,866,966 lens combinations for unbeatable illumination. Furthermore, by using ewoLightTile, EL can provide a high level of visual comfort even though the light is emitted from a vertical position. With ewoLightLayers, the light can also be adapted to any requirements.

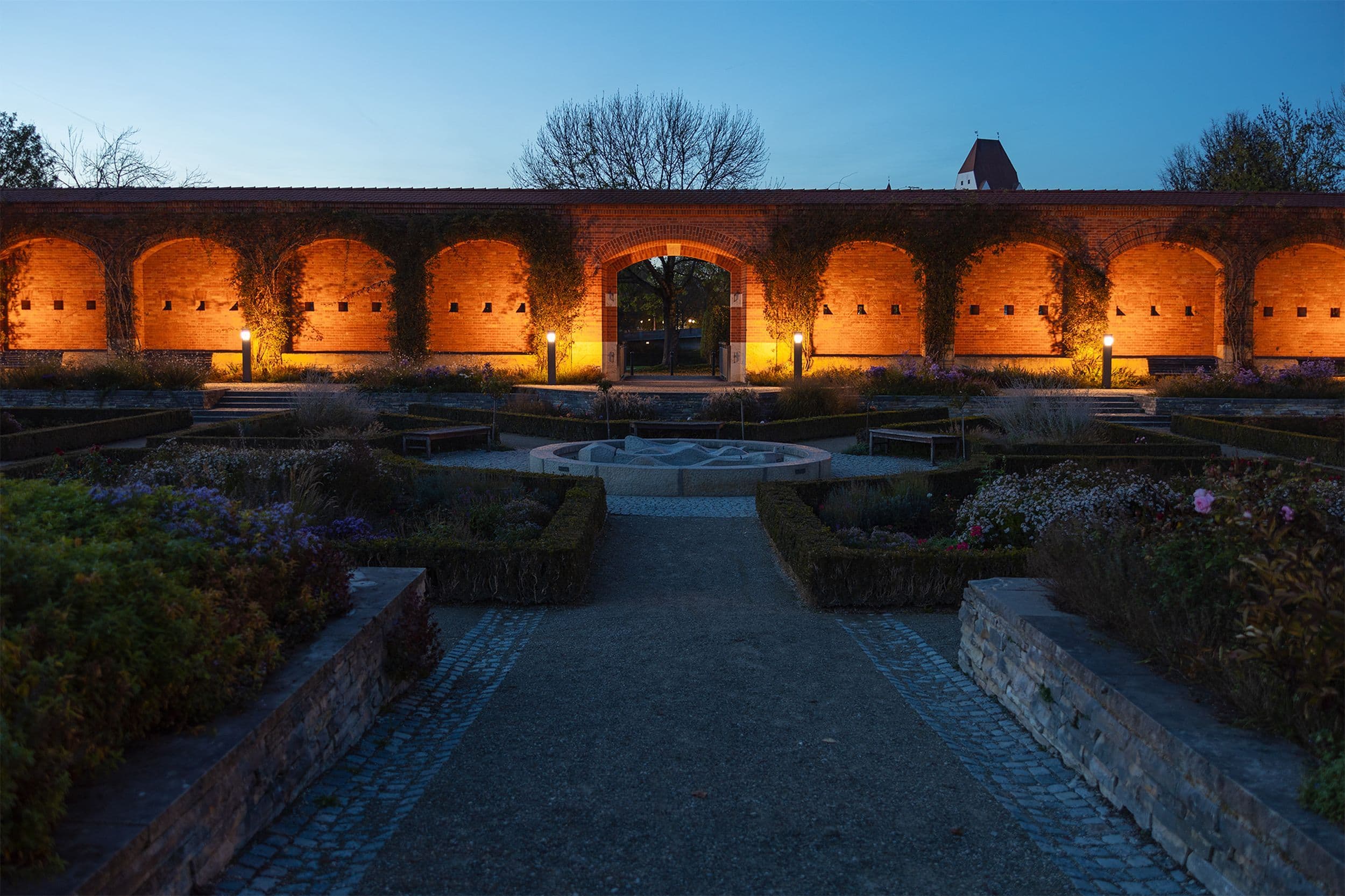

Klenzepark, Ingolstadt © Hans Lichtl

EL sets atmospheric lighting accents in Klenzepark in Ingolstadt, Germany

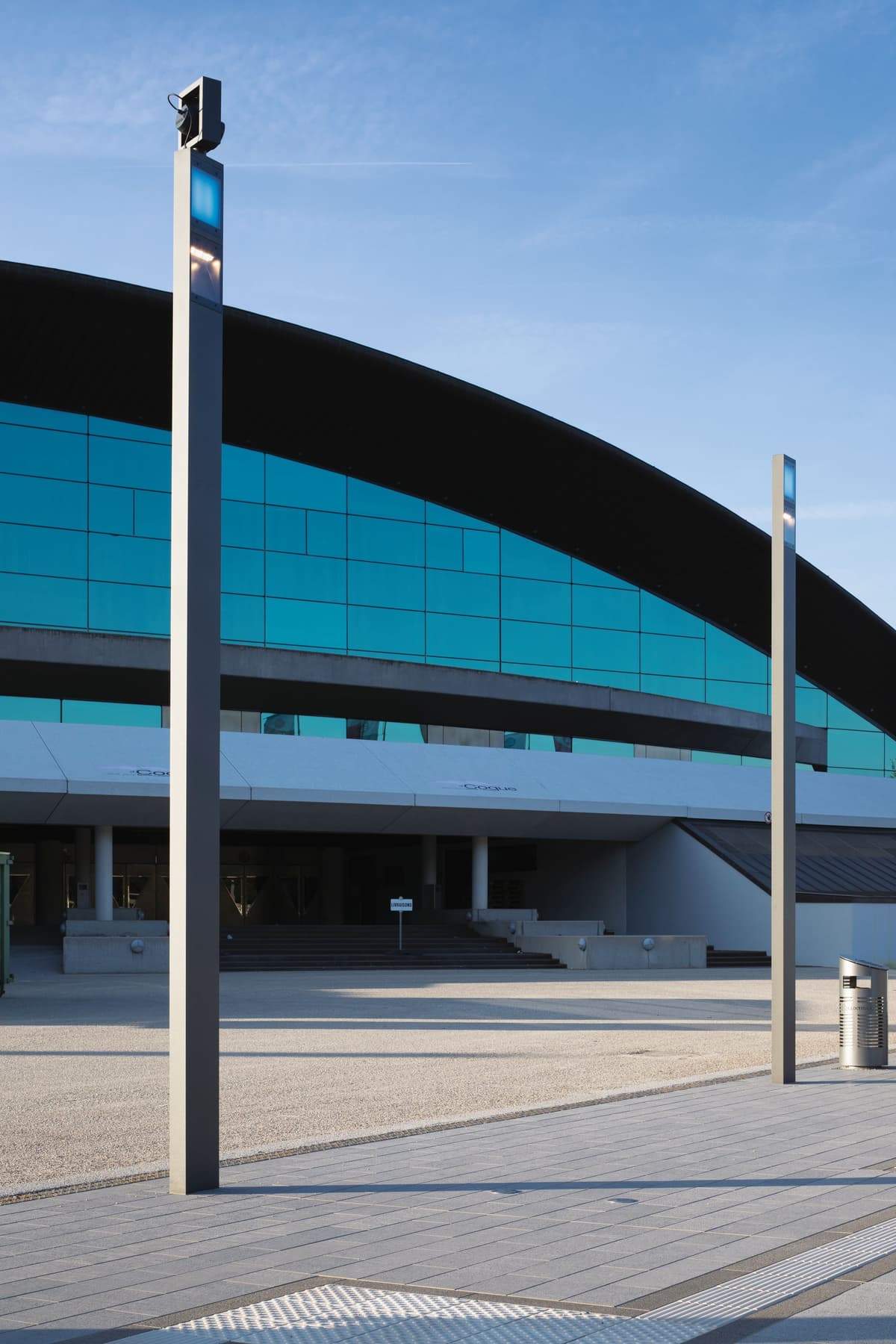

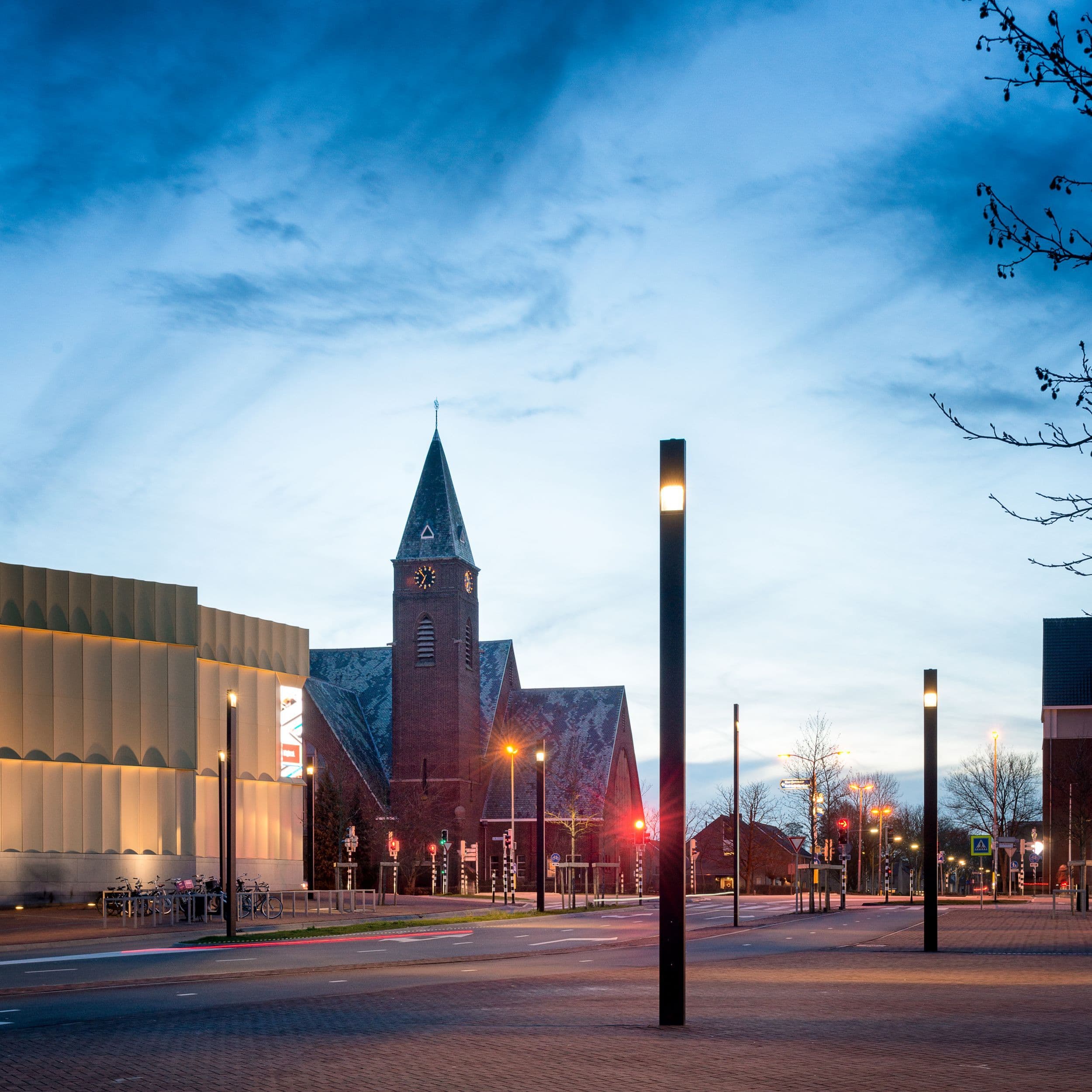

Binnenlandse Baan, Barendrecht © Nathalie Peters

During renovation work on the Binnenlandse Baan in Barendrecht in the Netherlands, the traffic area was equipped with EL luminaires

Intelligence of Light

With DALI, 1-10 V and standalone programming, EL luminaires can be easily controlled to maximize both safety and energy savings. Controlling dynamic EL lighting solutions with DALI T8 enables scenarios, automatic lighting settings and novel circadian night lighting. The EL light columns can also be equipped with Zhaga interface for smart city integration and intelligent centralized lighting control.
