Product Family

The FA product family is a versatile lighting system that is suitable for all urban spaces and has a consistent design language despite design options.

FA

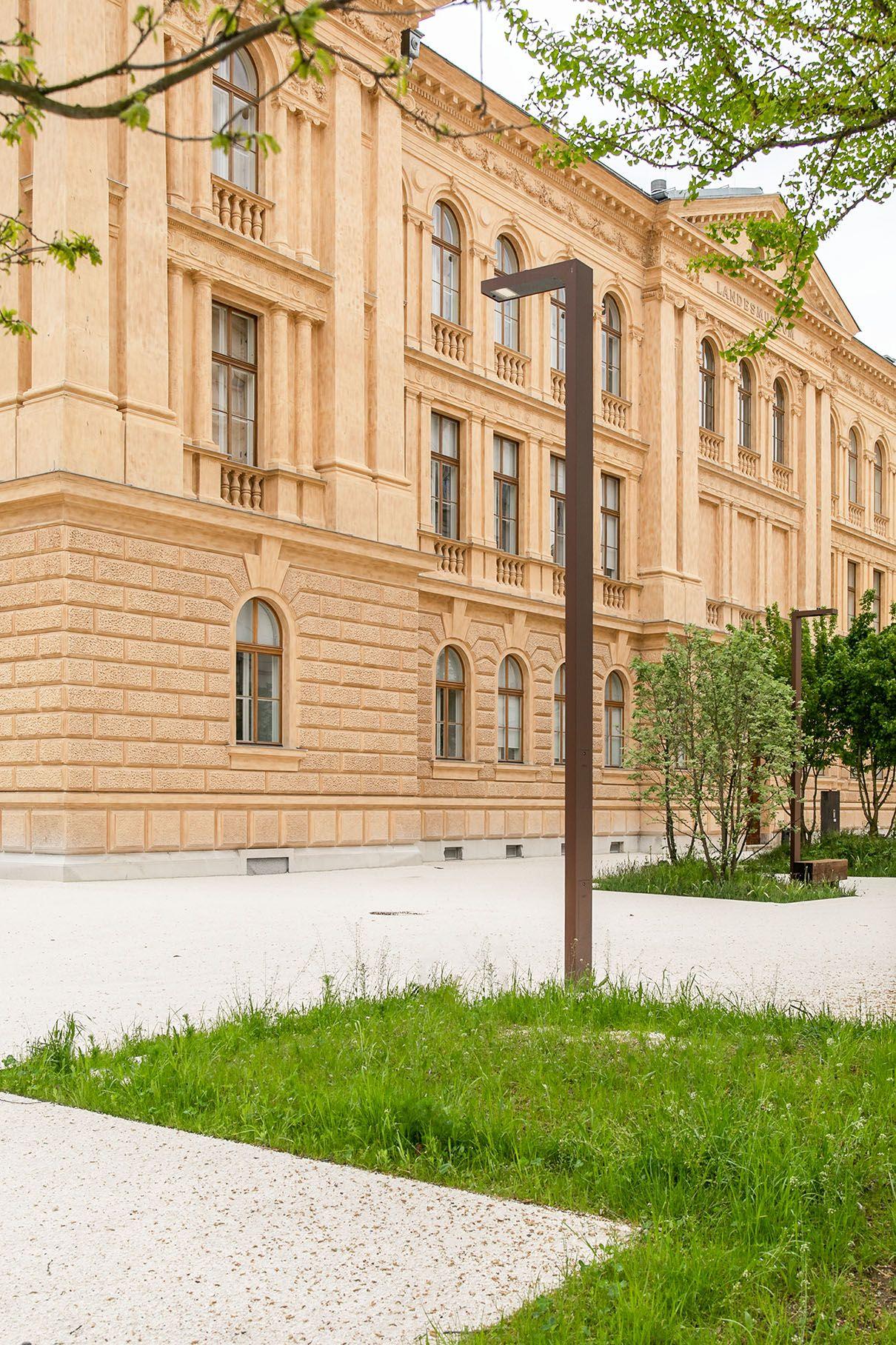

“The FA product family is as versatile as the requirements of planners. The luminaire range is suitable for illuminating roads, surfaces, sidewalks and road crossings as well as for vertical visual elements.

What sets FA apart

Possibility of integrating EL

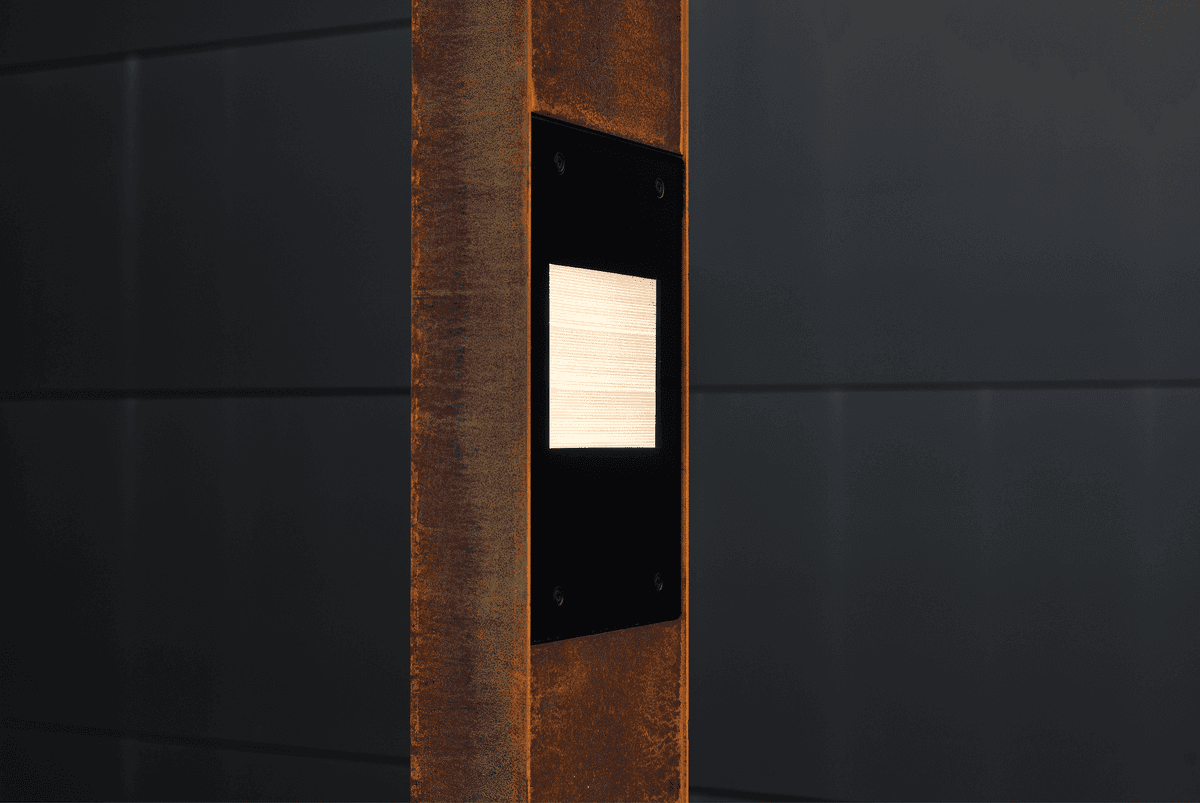

The FA mast top versions (FA770 and FA1070) are also suitable for accommodating the EL module in the column, which represents a unique solution for the project.

Complete family

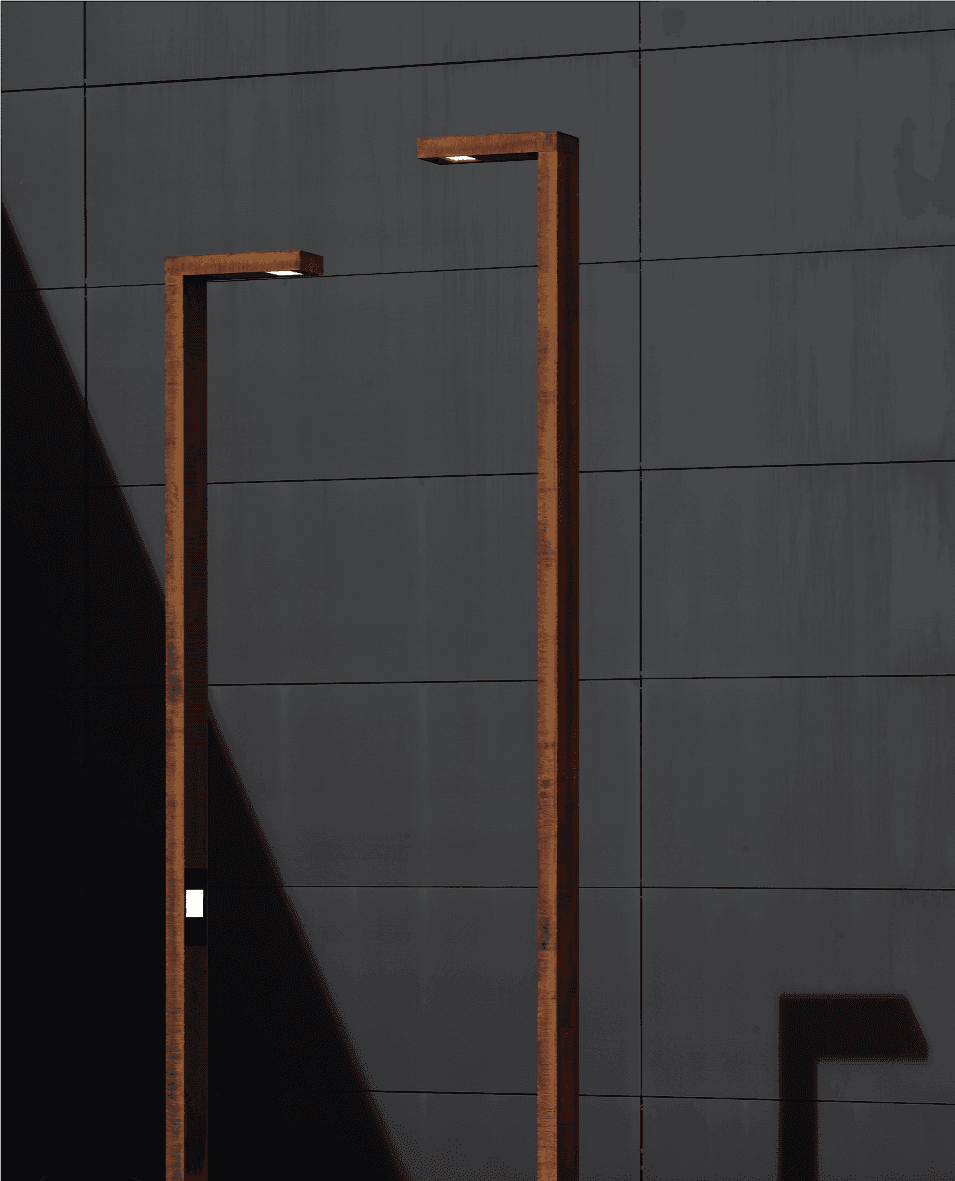

With pole-top, bollard, wall and ceiling mounted versions, FA is a complete family that maintains a linear, consistent look throughout the project and can easily adapt to any outdoor environment. FA can be powder coated or made from COR-TEN with the option of having no visible screws on the glass. Enclosure with low copper content ≤ 0.08% and the option to add additional corrosion protection (ewoECP).

Flexible Shape of Light

By using up to 5 LED modules (FA1070) and being compatible with the A–Series and T–Series lenses, the FA offers a wide range of luminous fluxes and light distributions as well as the option of adding factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (glare protection).

Technical data

FA770 pole-mounted luminaire with A–Series optics

Max. luminous flux 18,883 lm

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80 and other color rendering indexes on request

Electronic operating unit available on request with DALI, 1–10 V interface, standalone programming or line switch

Features for constant lumen output (CLO) and emergency power operation (AC/DC) on request

Smart lighting: Control modules for different communication standards can be integrated or supplied externally via Zhaga interface.

FA770 pole-mounted luminaire with T–Series optics

Max. luminous flux 5,500 lm

Color temperatures: 2,200 K - 6,500 K, standard CRI ≥ 80, CRI ≥ 90 on request

Electronic operating unit with DALI T8 interface

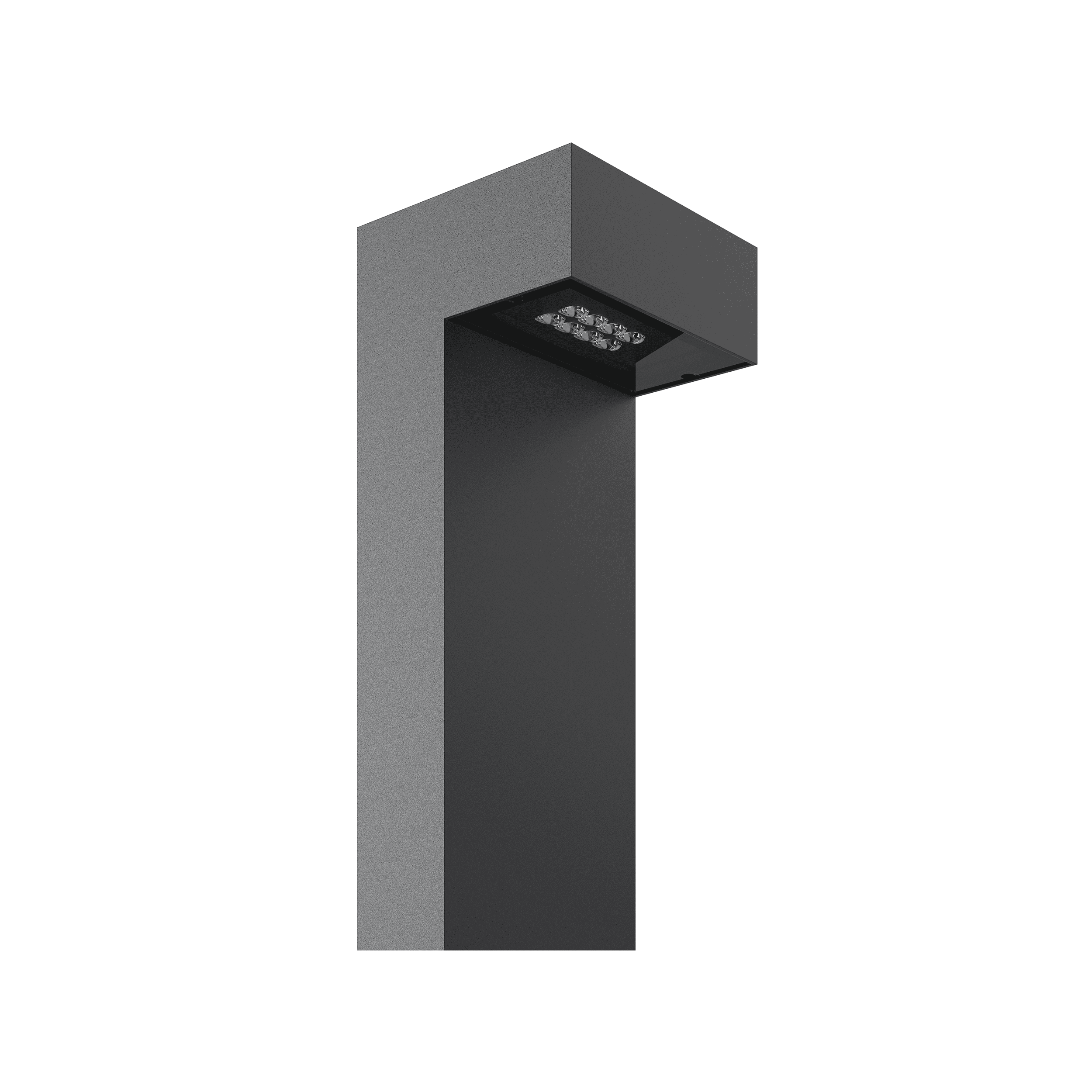

FA170 bollard with A–Series optics

Max. luminous flux 2,550 lm

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80 and other color rendering indexes on request

Electronic operating unit available on request with DALI, 1–10 V interface, standalone programming or line switch

Features for constant lumen output (CLO) and emergency power operation (AC/DC) available on request

Smart lighting: Control modules for different communication standards can be integrated or provided externally via Zhaga interface.

FA770 bollard with T–Series optics

Max. luminous flux 1,000 lm

Color temperatures: 2,200 K - 6,500 K, standard CRI ≥ 80, CRI ≥ 90 on request

Electronic operating unit with DALI T8 interface

Body of Light

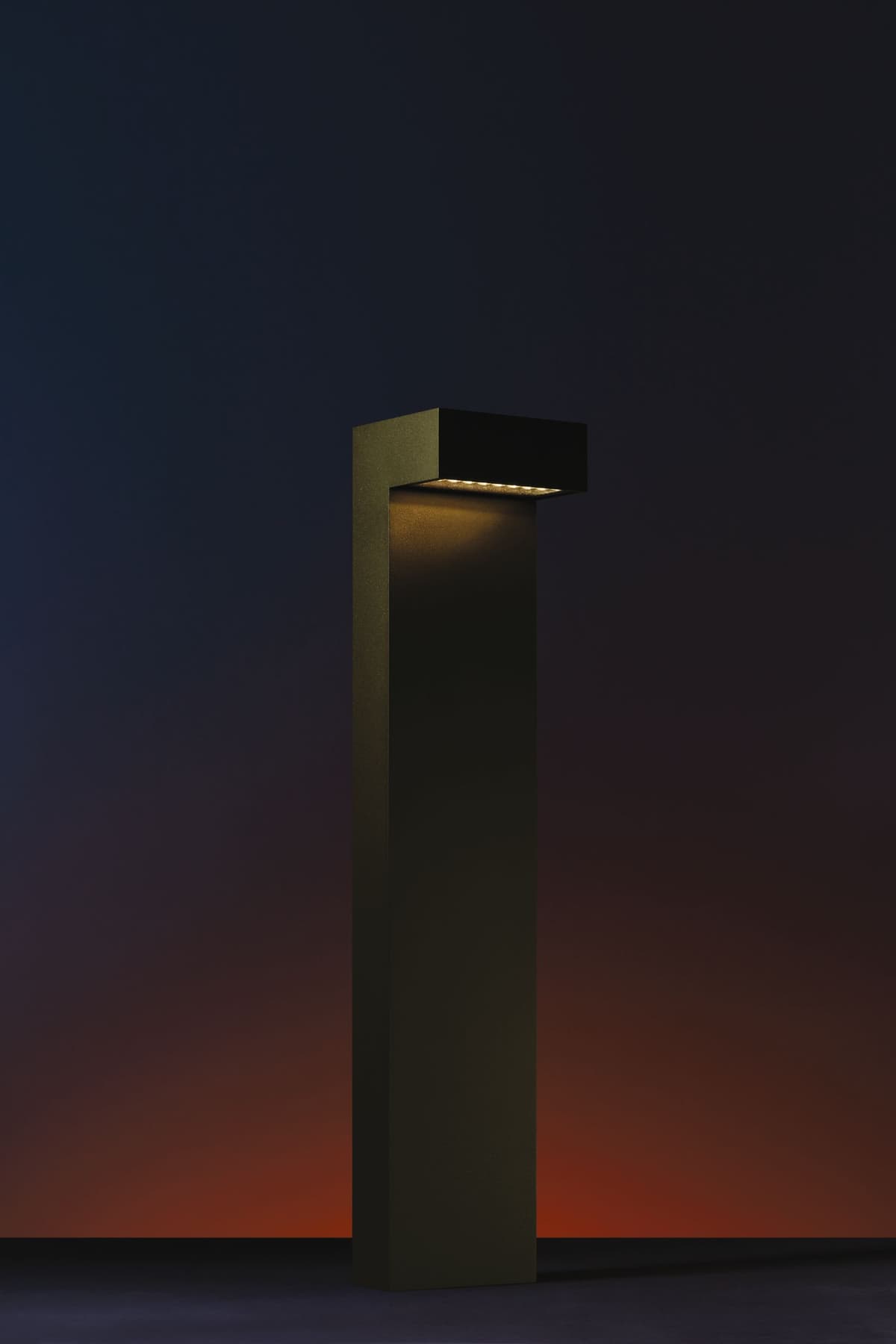

Bollards
Bollard FA

Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

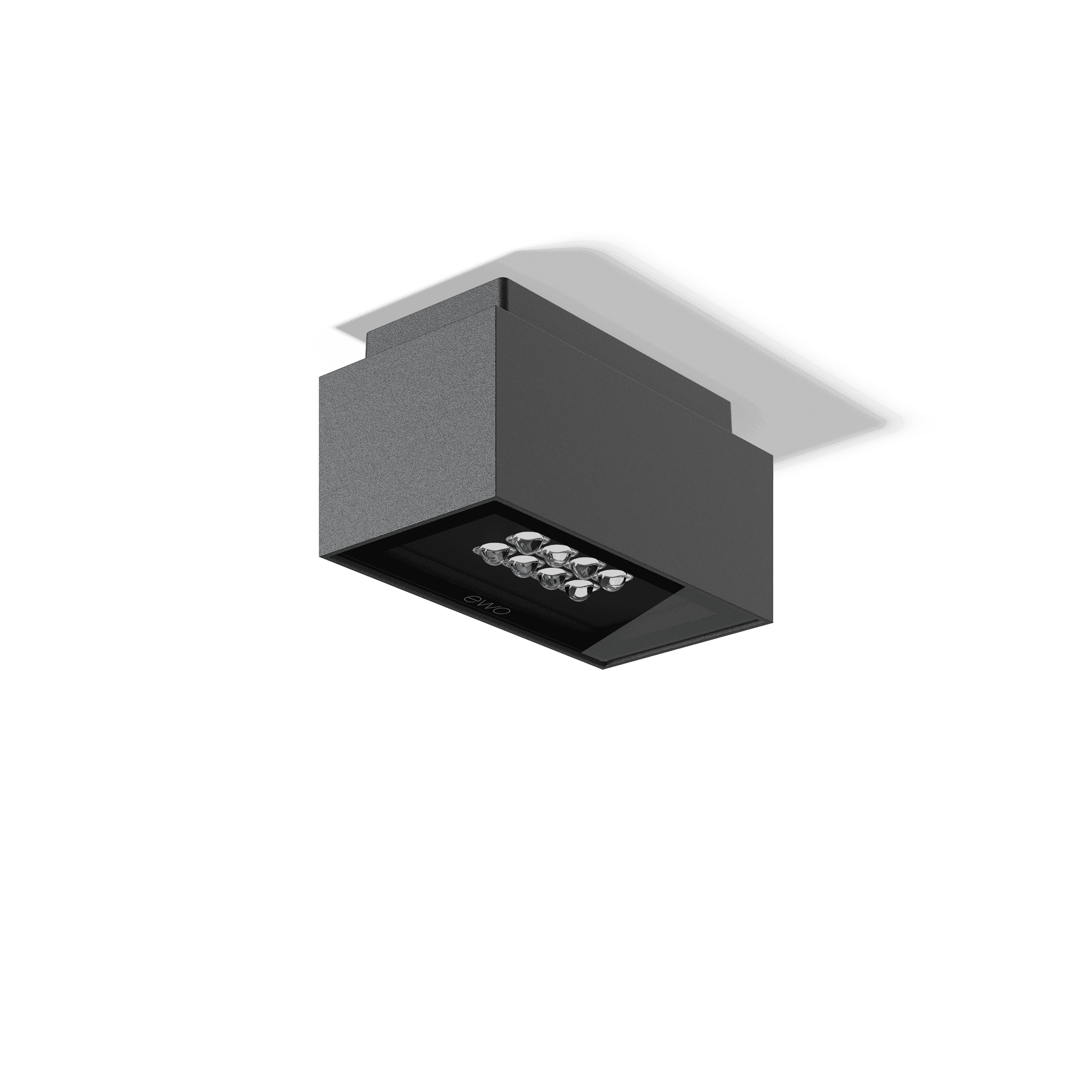

Ceiling luminaires
Ceiling FA

Ceiling
Surface–mounted
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

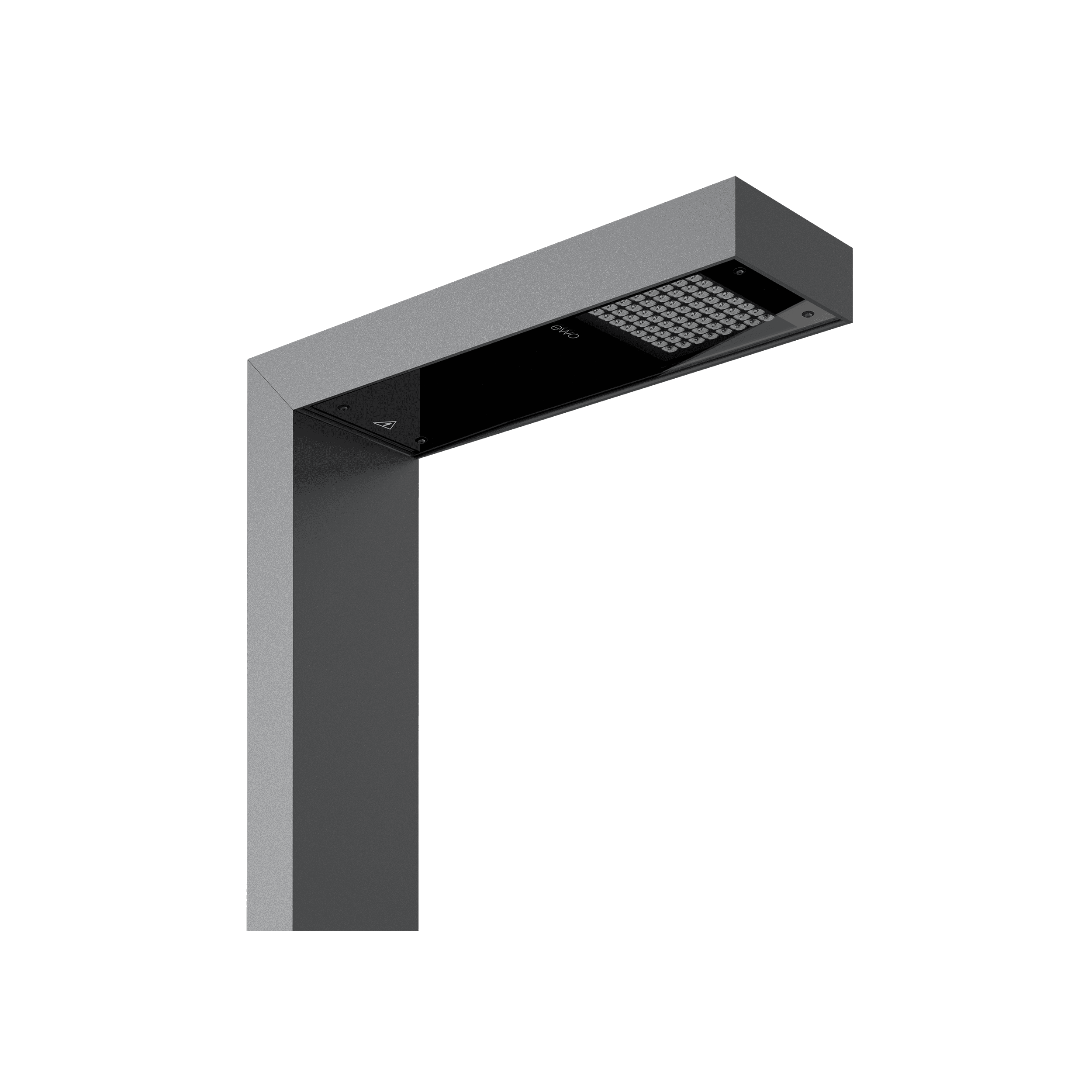

Pole–mounted luminaires
Pole FA

Pole
Pole–mounted
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

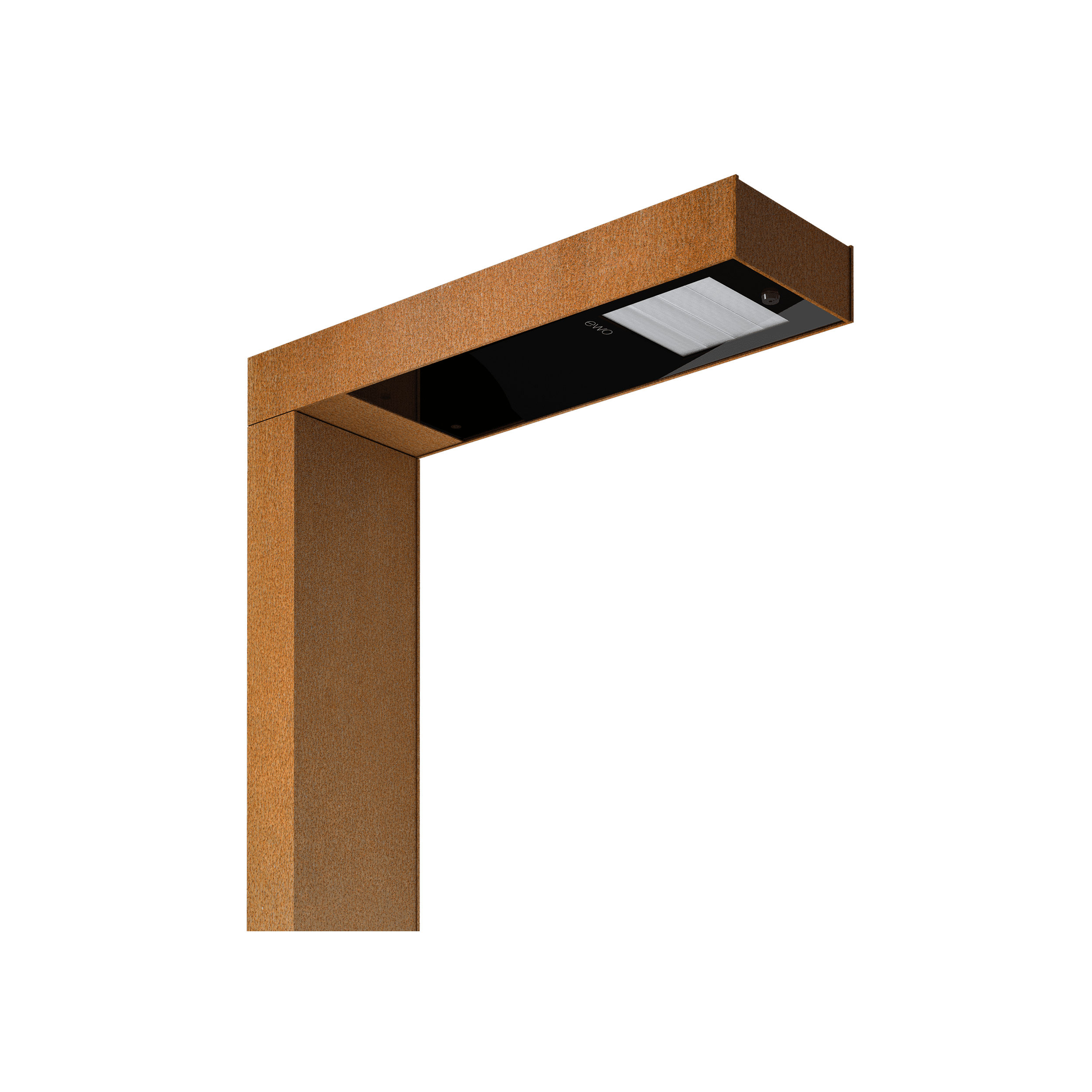

Pole–mounted luminaires
Pole FA COR TEN

Pole
Pole–mounted
Rectangular
Corten steel
Monochrome
General illumination
Architecture and the arts

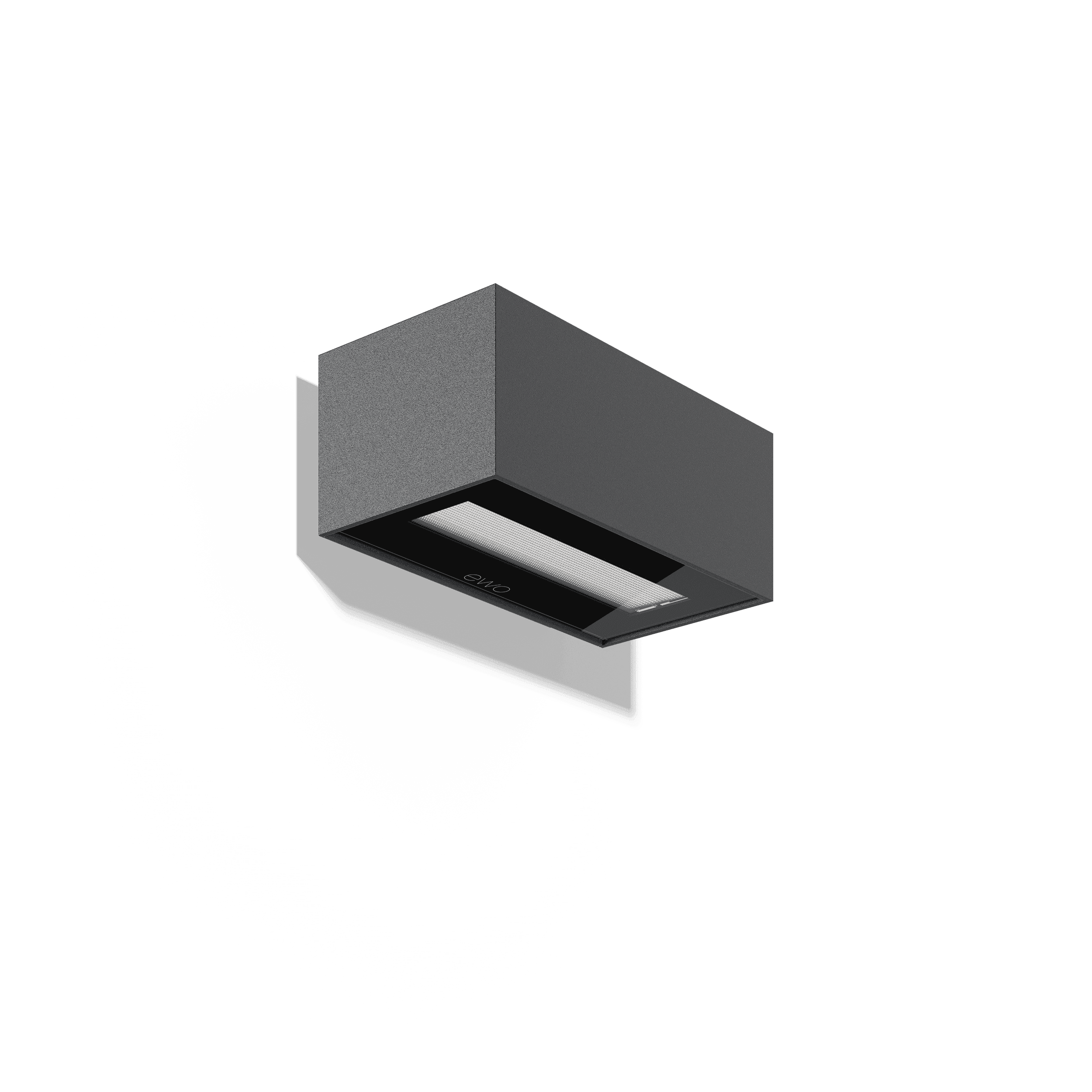

Wall luminaires
Wall FA

Wall
Surface–mounted
Rectangular
Powder coated
Monochrome
General illumination
Architecture and the arts

Shape of Light

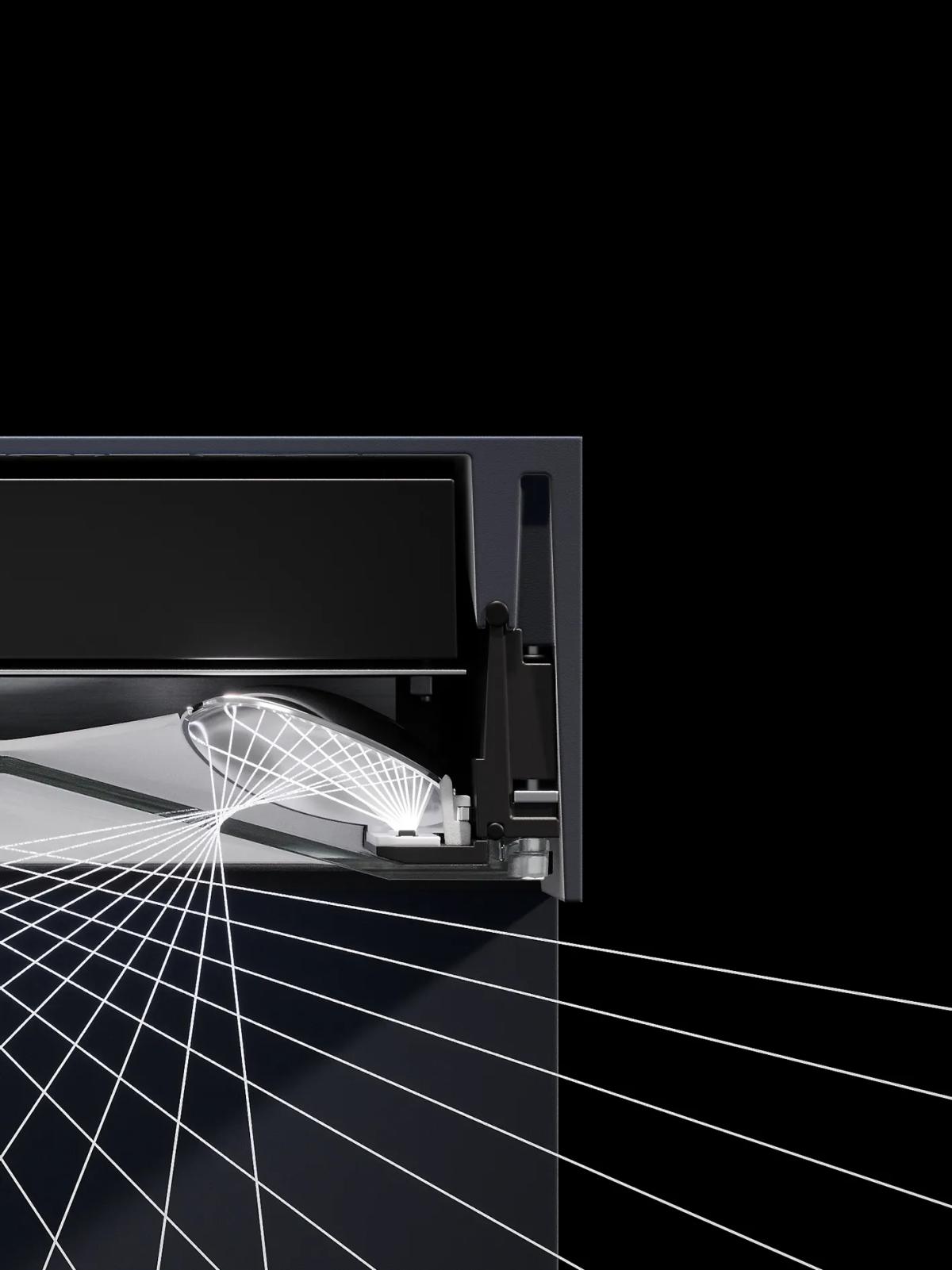

The FA product family can be equipped with up to 5 LED modules and is compatible with the A–Series and T–Series lenses—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

Intelligence of Light

Equipped with smart lighting, FA can be integrated into any intelligent control system or smart city technology and controlled in groups or individually. The luminaire can also be equipped with intelligence in a second moment.
