Product Family

The FO product family is a versatile lighting system with a timeless design. The wall and pole-mounted luminaire can be adapted for a wide range of applications thanks to variable light distributions and lens options.

FO

“The FO luminaire is a versatile product that is the ideal choice in a wide variety of situations thanks to its multiple configuration options.

What sets FO apart

Cost-effective and powerful

FO is available in 420 and 600 mm versions and is designed for pole or wall mounting. The design of the housing is clean and cost-effective without compromising performance.

Flexible Shape of Light

By using up to 5 LED modules (FO600), FO offers a wide range of luminous fluxes and light distributions, with the option of adding factory-installed ewoLightLayers such as an integrated RBL (backlight shield) and AGR (anti-glare protection).

Solid construction

Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).

Technical data

A–Series

Current feed: 200 mA–650 mA, depending on ambient temperature (FO600 max. 550 mA)

Max. luminous flux 15,900 lm

Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request

Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature

Max. Luminous flux 4,600 [lm]

Electronic operating device with DALI T8 interface

Color temperatures: Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90.

Body of Light

Pole and wall–mounted luminaires
Pole FO

Pole
Pole–mounted
Rectangular
Powder coated
Monochrome
General illumination
Urban life

Pole and wall–mounted luminaires

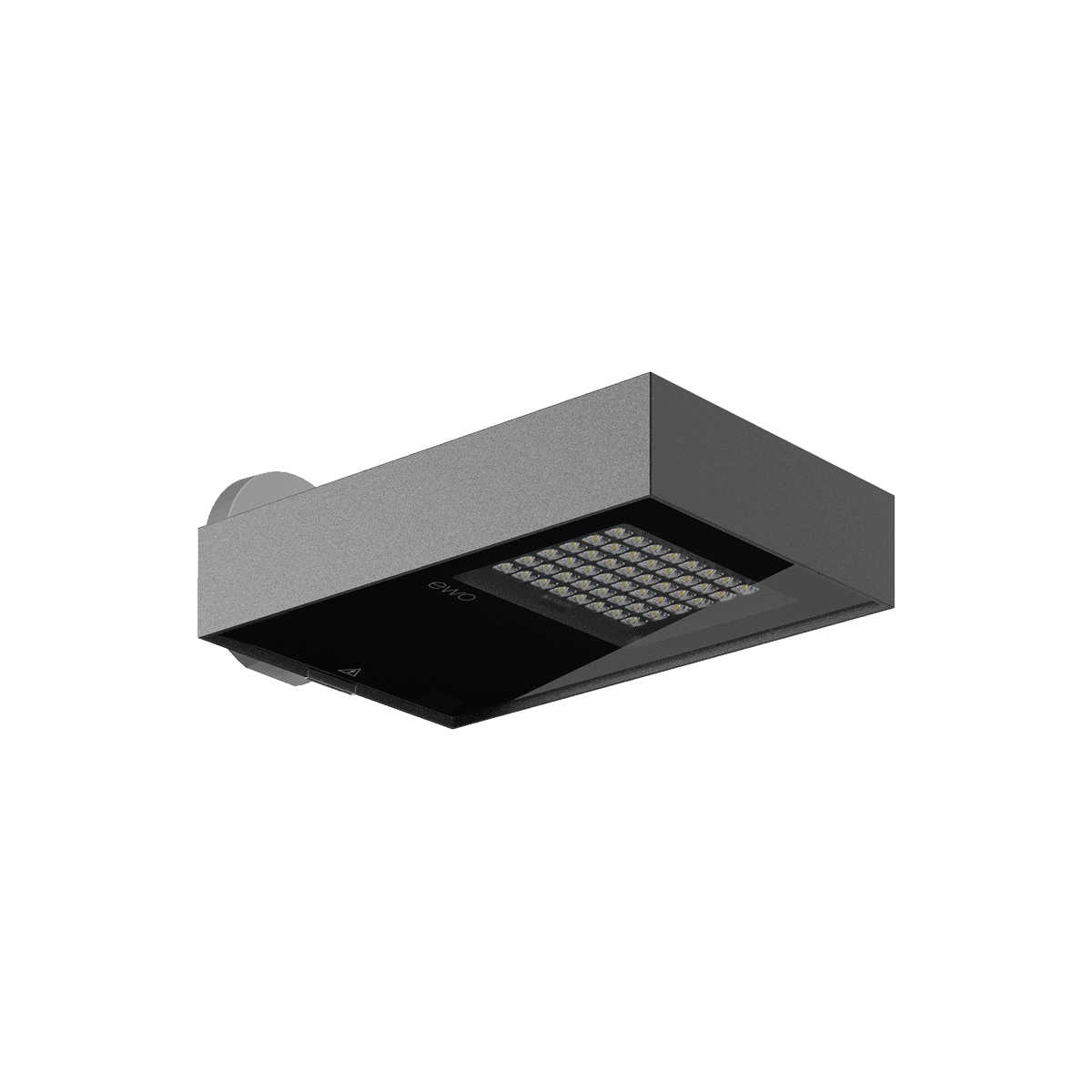

Wall FO

Wall
Surface–mounted
Rectangular
Powder coated
Monochrome
General illumination
Urban life

Shape of Light

The FO product family can be equipped with up to 5 LED modules and is therefore compatible with a wide range of light distributions—the A–Series product family alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

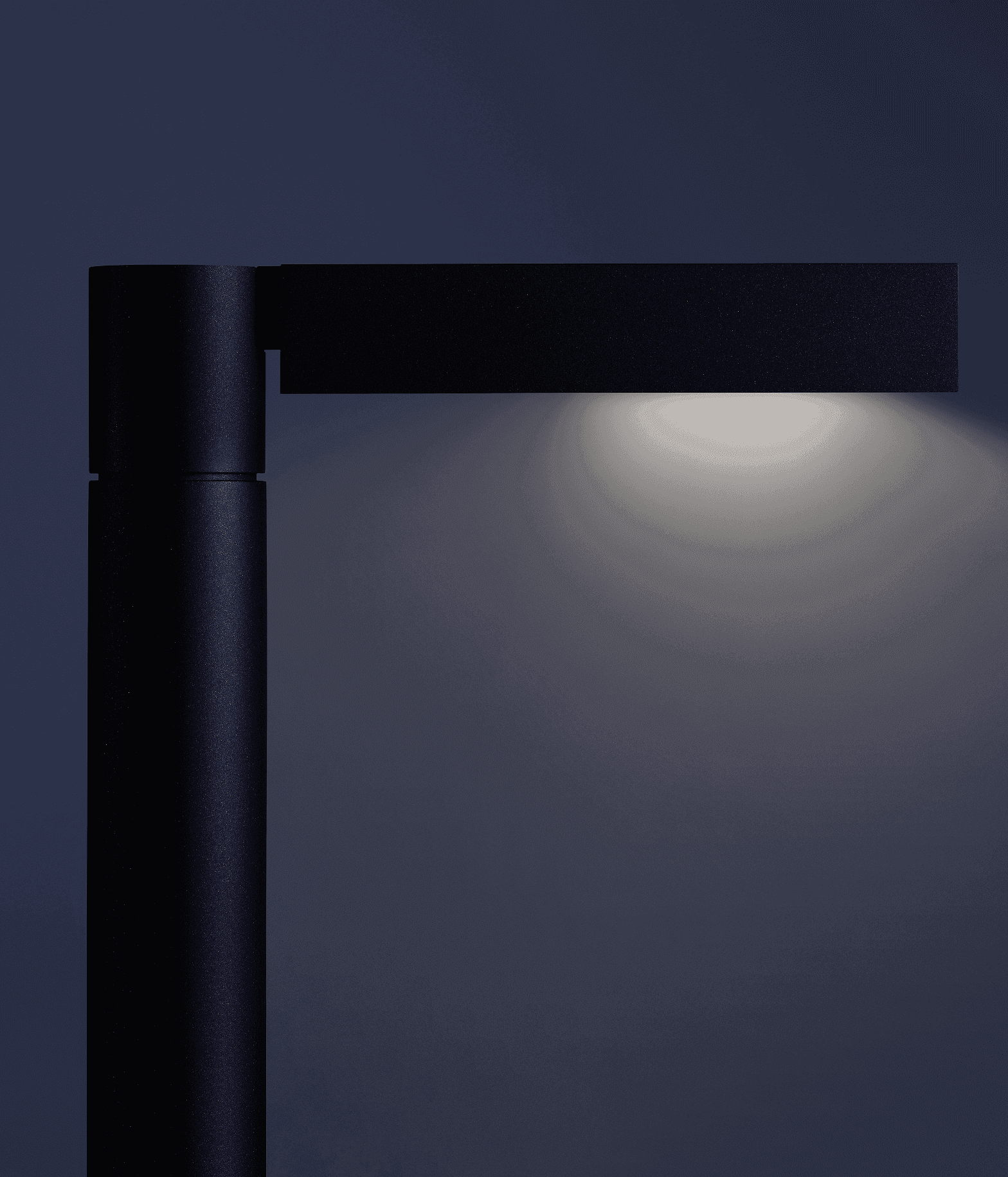

FO with AGR70 © Mattia Balsamini

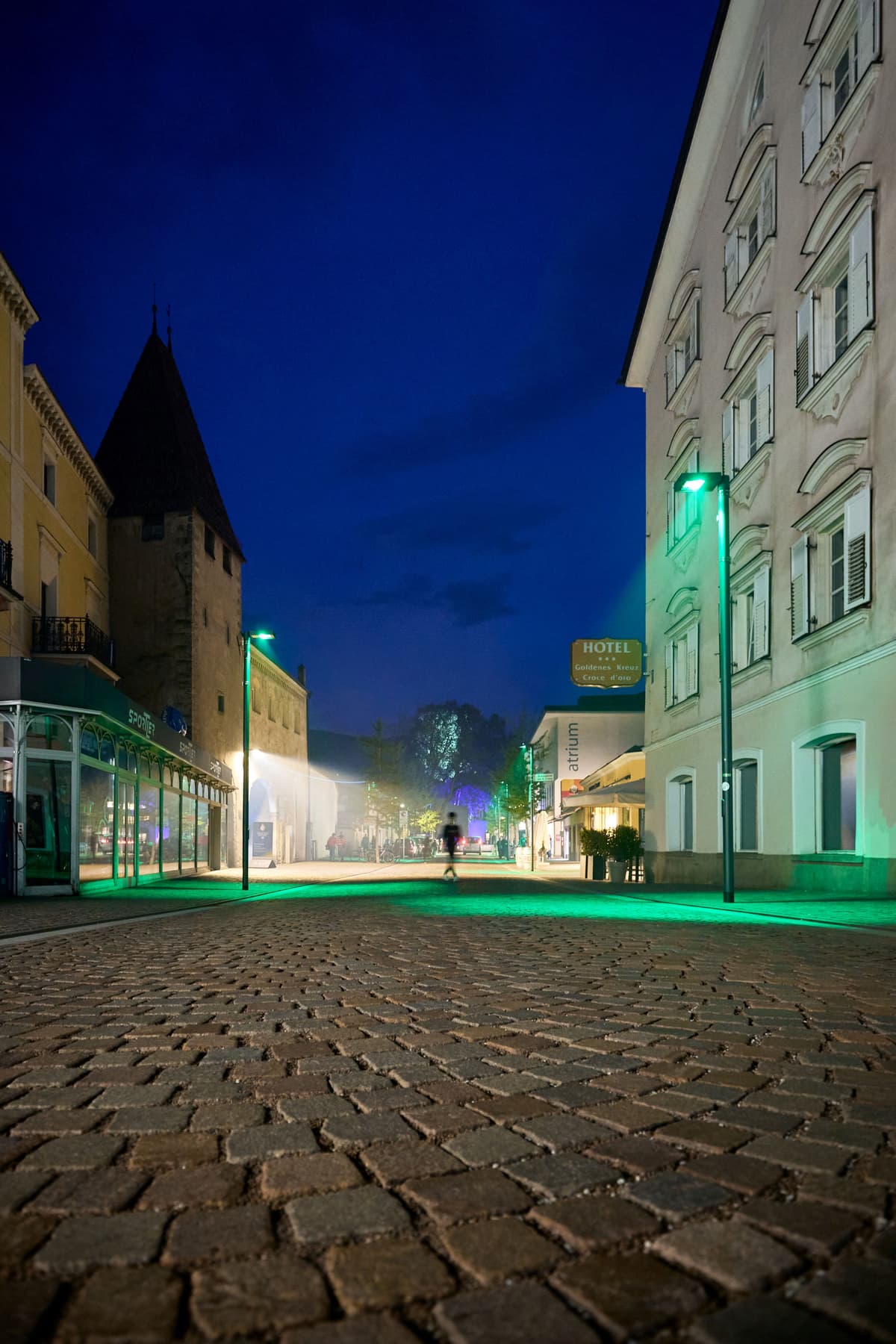

City of Bressanone © Brixen Tourismus, Michael Pezzei

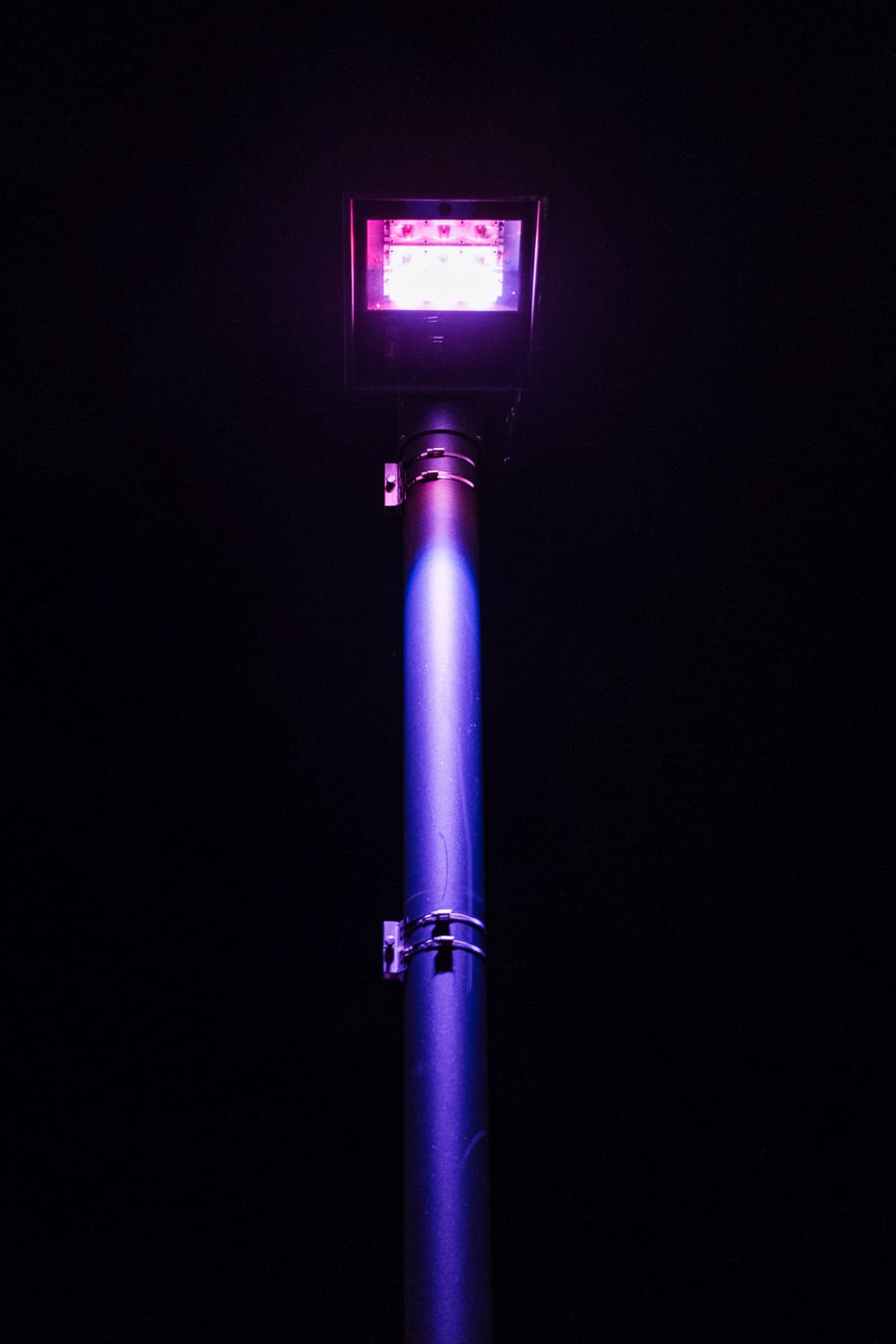

FO with smart lighting and RGBW illuminate parts of the center of the Italian city of Bressanone

Intelligence of Light

Intelligent lighting control modules for different communication standards or an external Zhaga interface can be optionally integrated into the FO luminaire, allowing it to be recessed into smart city networks.
