Product Family
The FO product family is a versatile lighting system with a timeless design. The wall and pole-mounted luminaire can be adapted for a wide range of applications thanks to variable light distributions and lens options.
FO
Wall FO
Pole and wall–mounted luminaires
“The FO luminaire is a versatile product that is the ideal choice in a wide variety of situations thanks to its multiple configuration options.
What sets FO apart
Cost-effective and powerful
FO is available in 420 and 600 mm versions and is designed for pole or wall mounting. The design of the housing is clean and cost-effective without compromising performance.
Flexible Shape of Light
By using up to 5 LED modules (FO600), FO offers a wide range of luminous fluxes and light distributions, with the option of adding factory-installed ewoLightLayers such as an integrated RBL (backlight shield) and AGR (anti-glare protection).
Solid construction
Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).
Technical data
A–Series
- Current feed: 200 mA–650 mA, depending on ambient temperature (FO600 max. 550 mA)
- Max. luminous flux 15,900 lm
- Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
- Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
- Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.
T–Series
- Current feed up to 225 mA, depending on ambient temperature
- Max. Luminous flux 4,600 [lm]
- Electronic operating device with DALI T8 interface
- Color temperatures: Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90.
Body of Light
Pole and wall–mounted luminaires

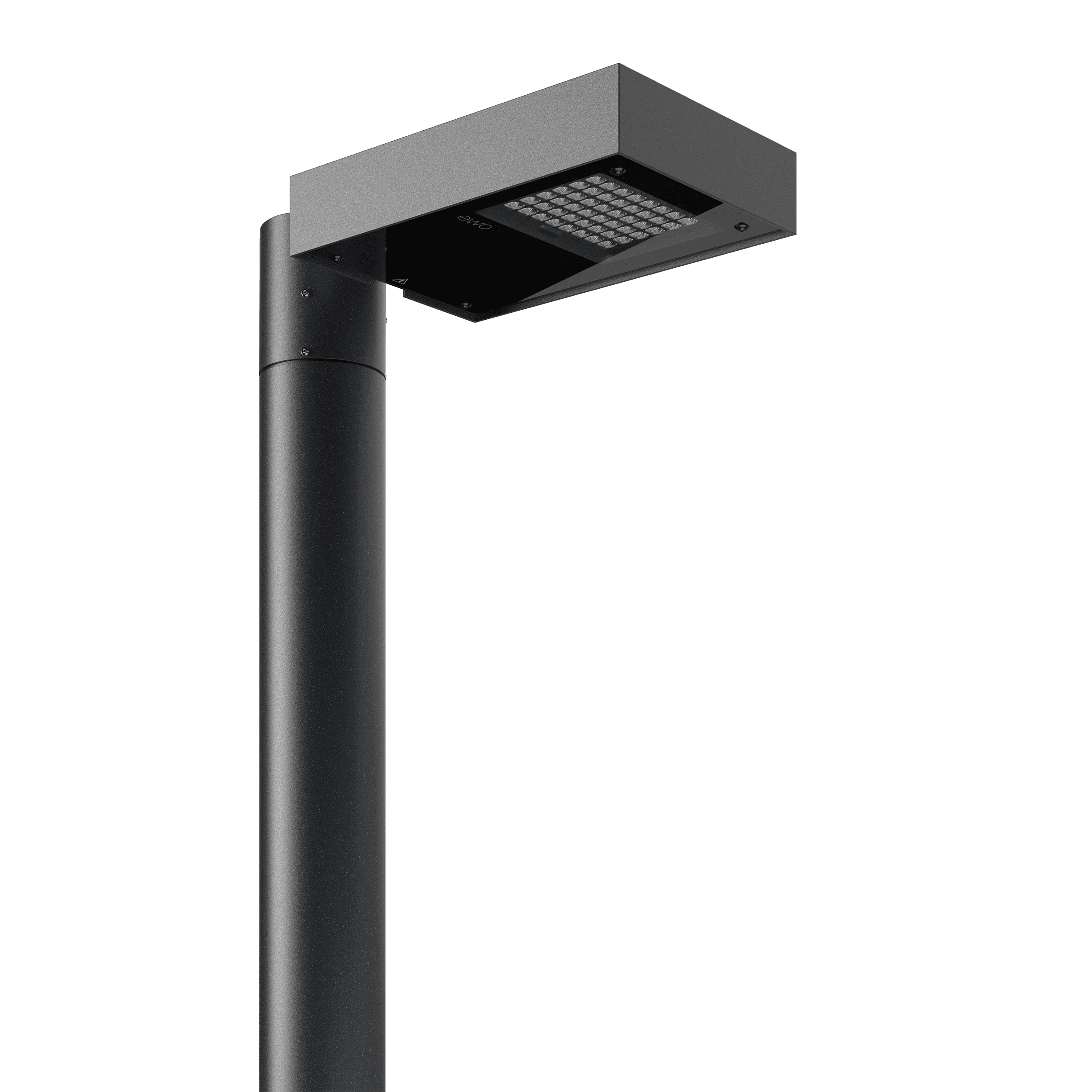

Pole FO
- Pole
- Pole–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Urban life
Pole and wall–mounted luminaires

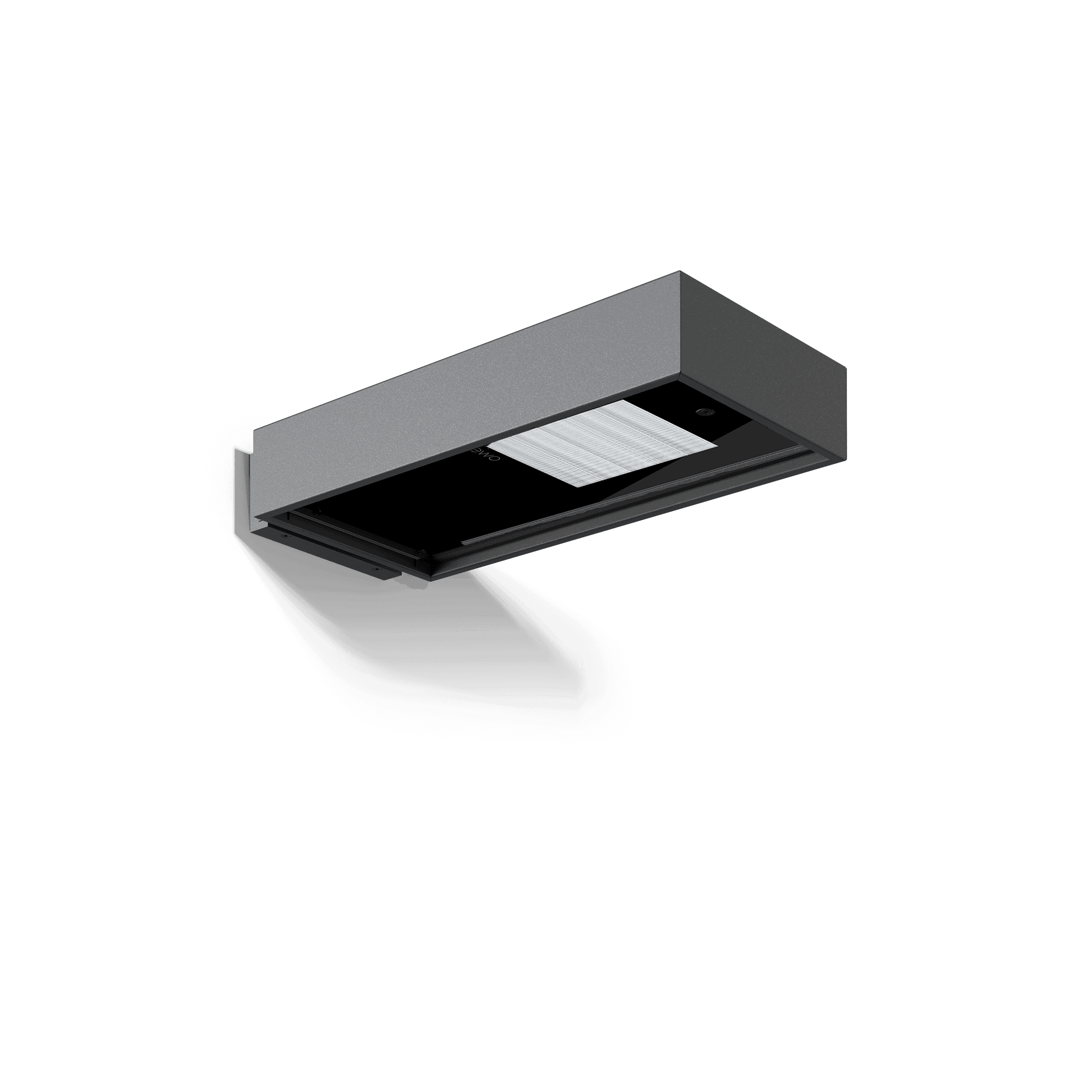

Wall FO
- Wall
- Surface–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Urban life
Shape of Light
The FO product family can be equipped with up to 5 LED modules and is therefore compatible with a wide range of light distributions—the A–Series product family alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

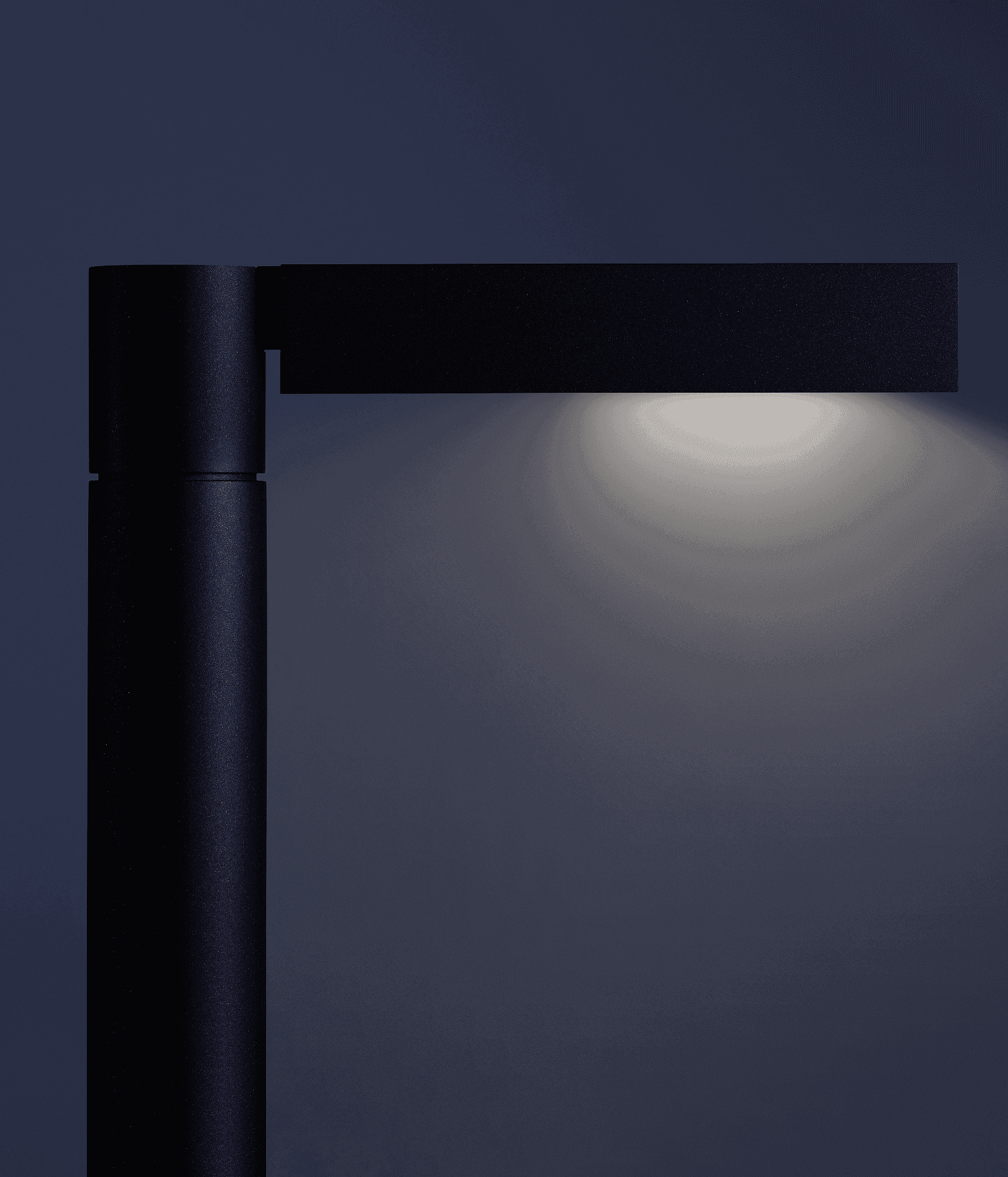

FO with AGR70 © Mattia Balsamini

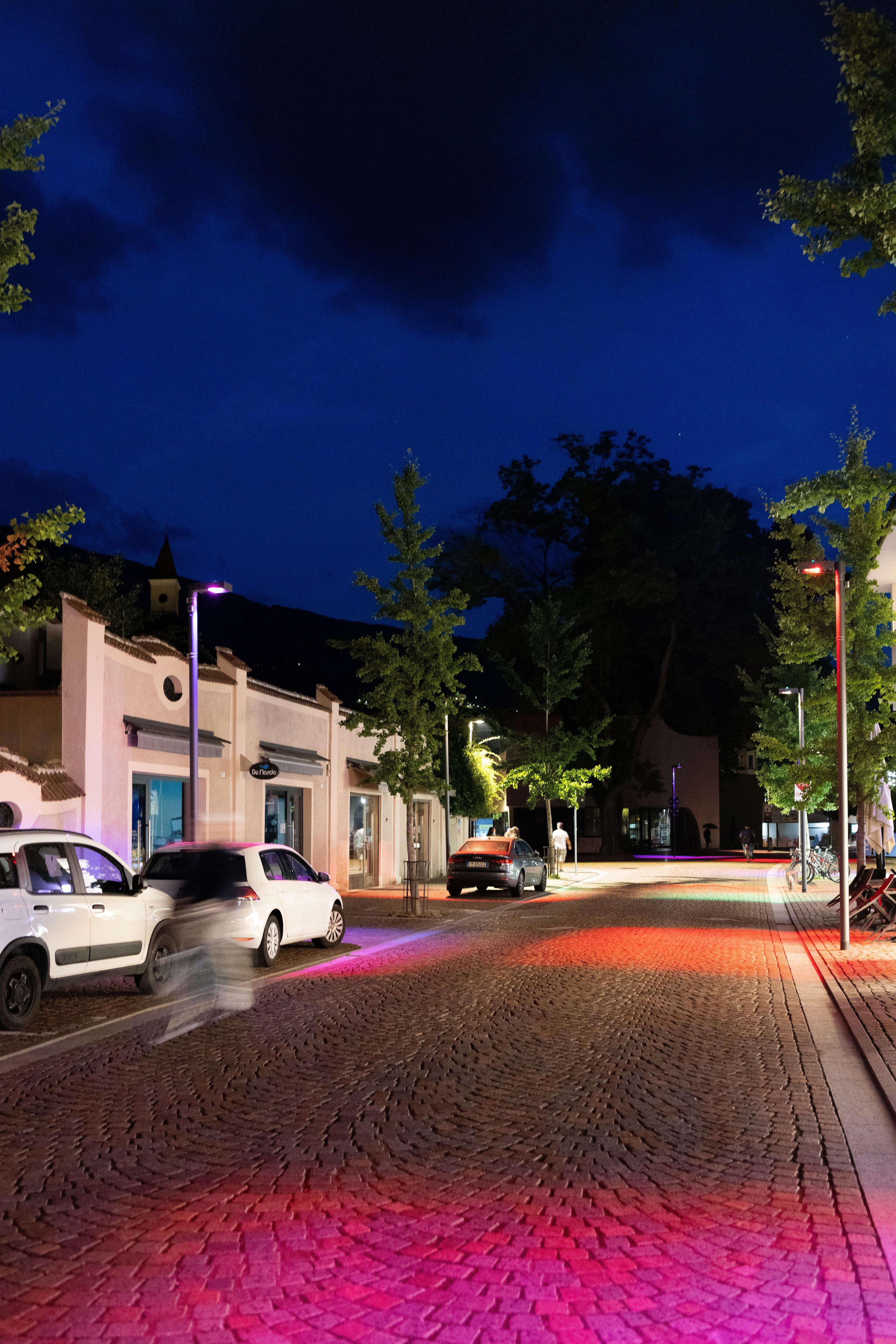

City of Bressanone © Brixen Tourismus, Michael Pezzei
FO with smart lighting and RGBW illuminate parts of the center of the Italian city of Bressanone
Intelligence of Light
Intelligent lighting control modules for different communication standards or an external Zhaga interface can be optionally integrated into the FO luminaire, allowing it to be recessed into smart city networks.

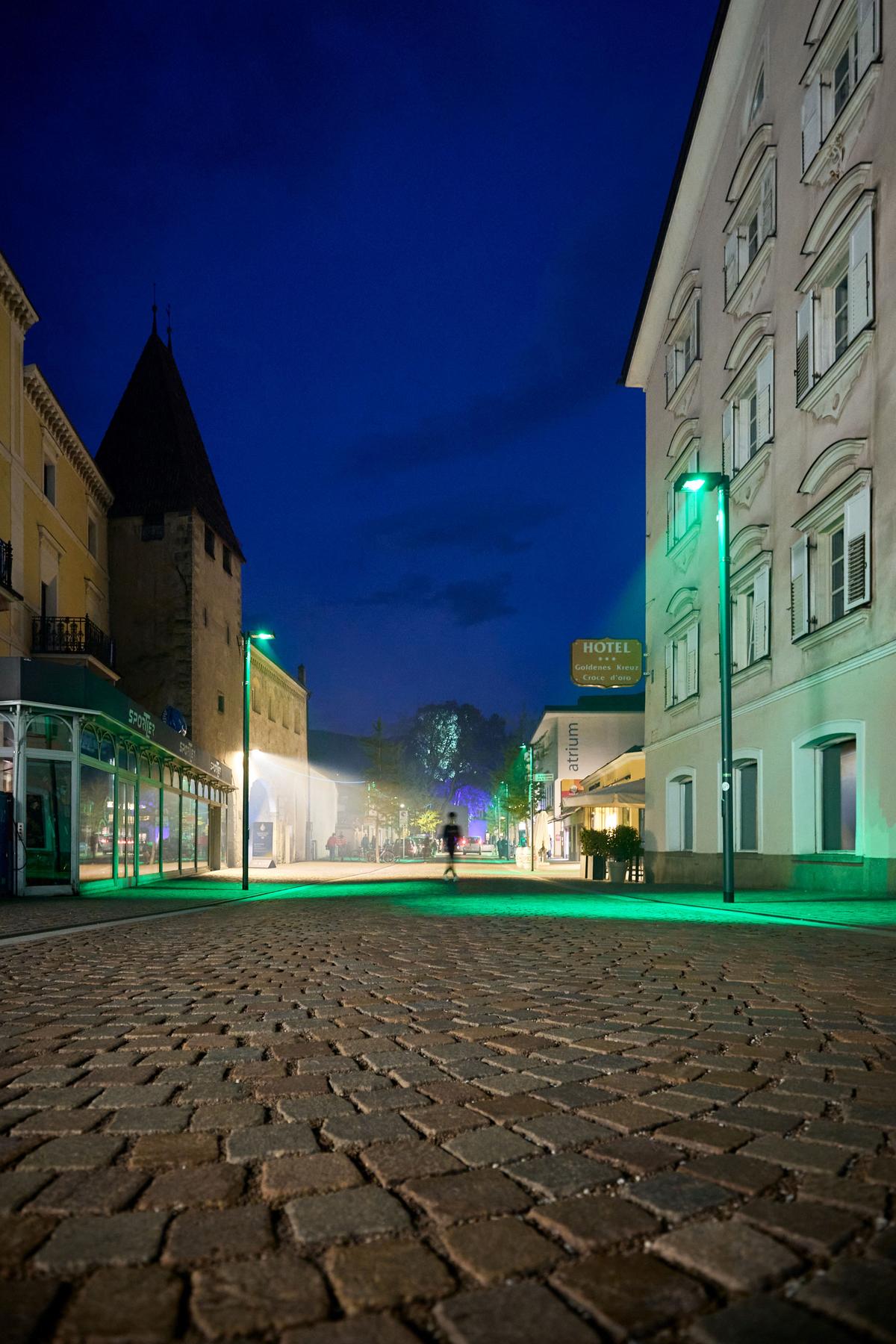

City of Bressanone © Brixen Tourismus, Andreas Tauber

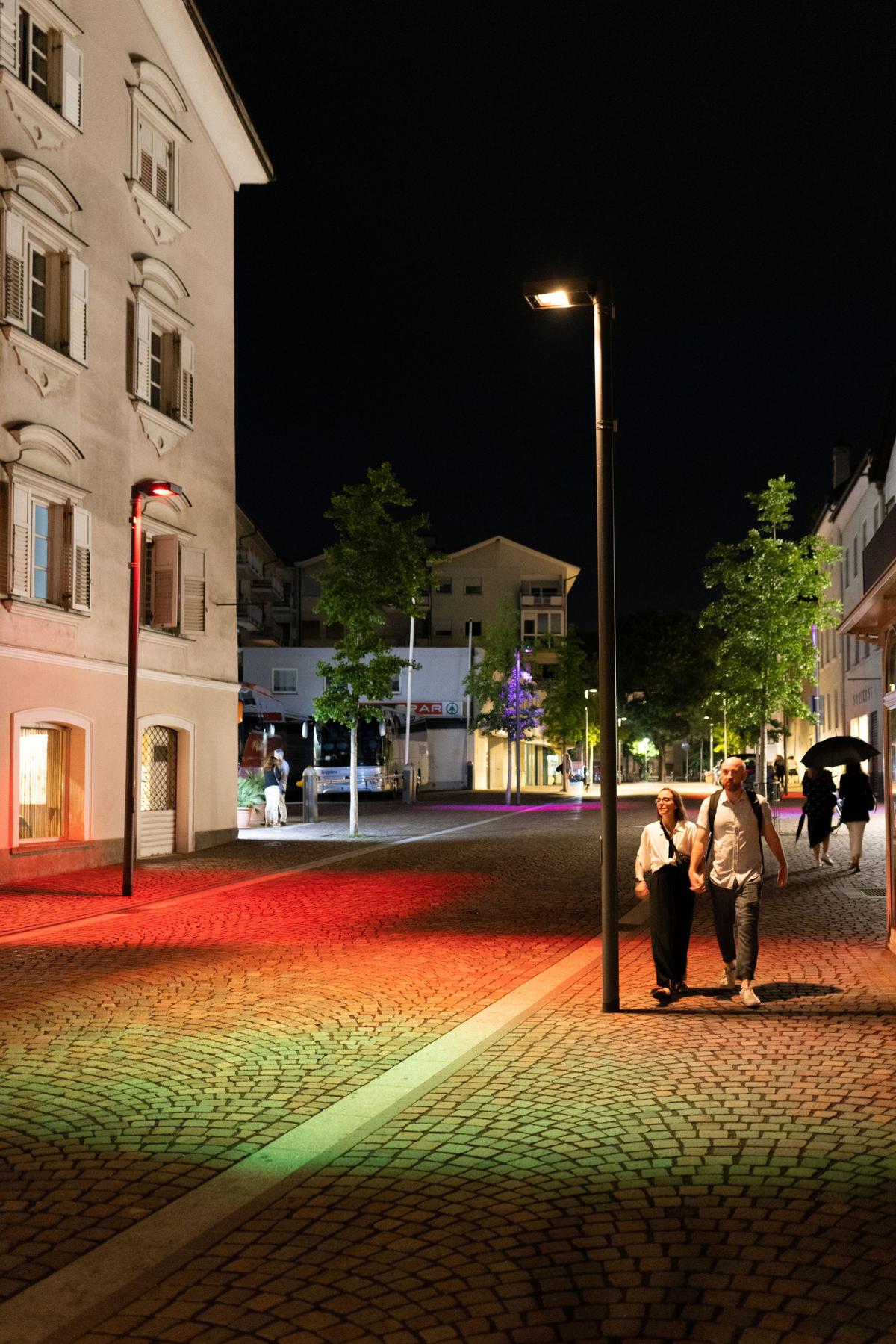

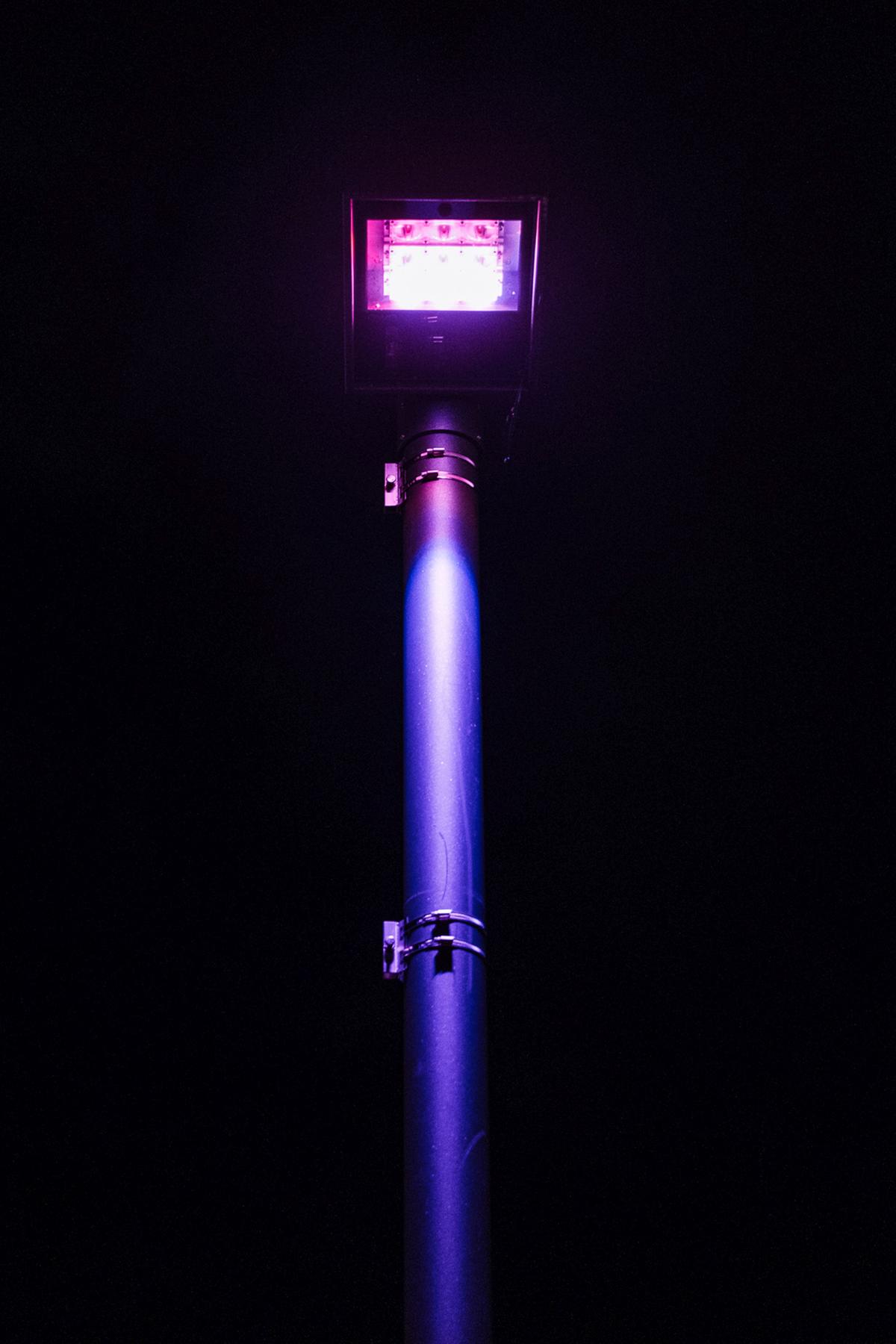

Thanks to RGBW optics, the FO lights create the right atmosphere for special occasions

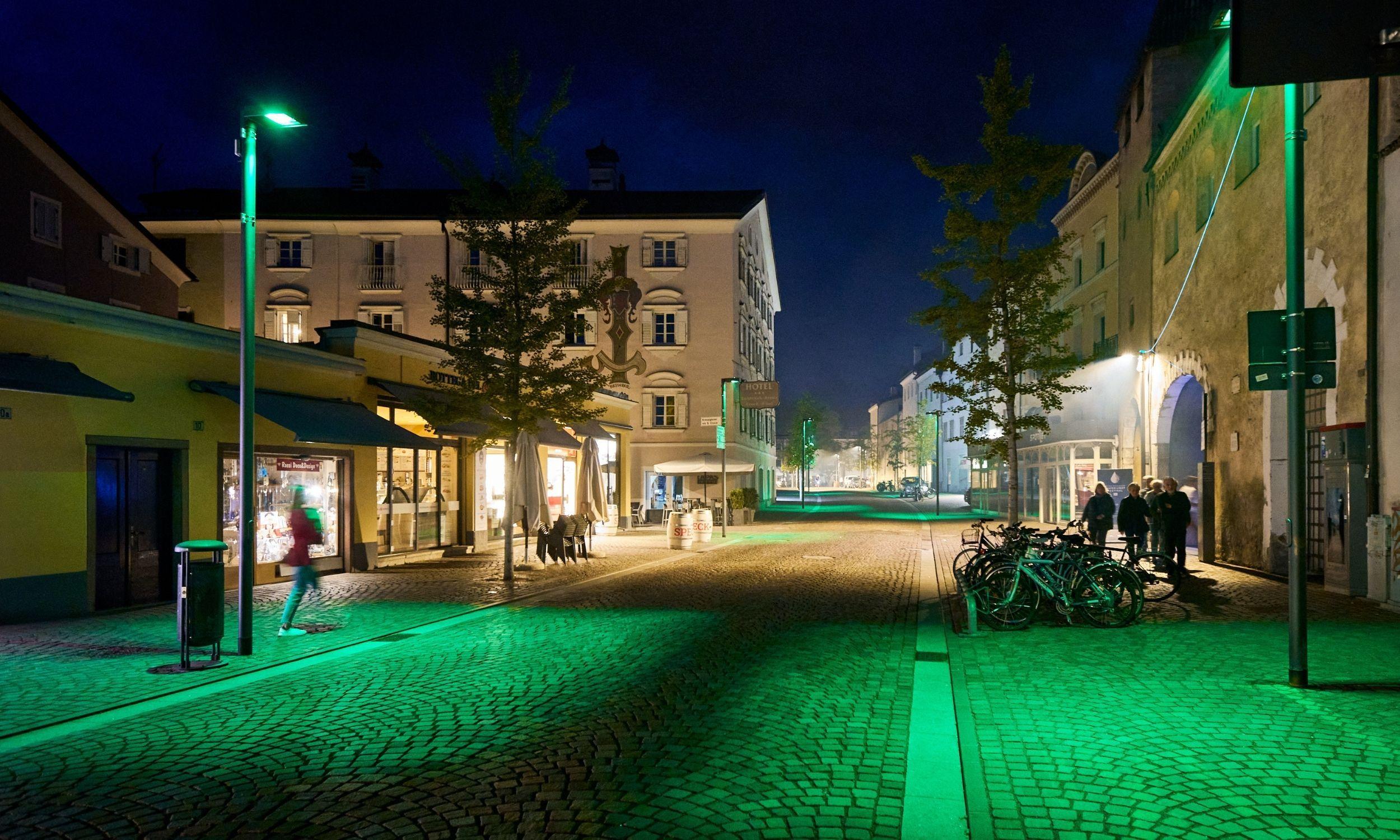

City of Bressanone © Brixen Tourismus, Andreas Tauber

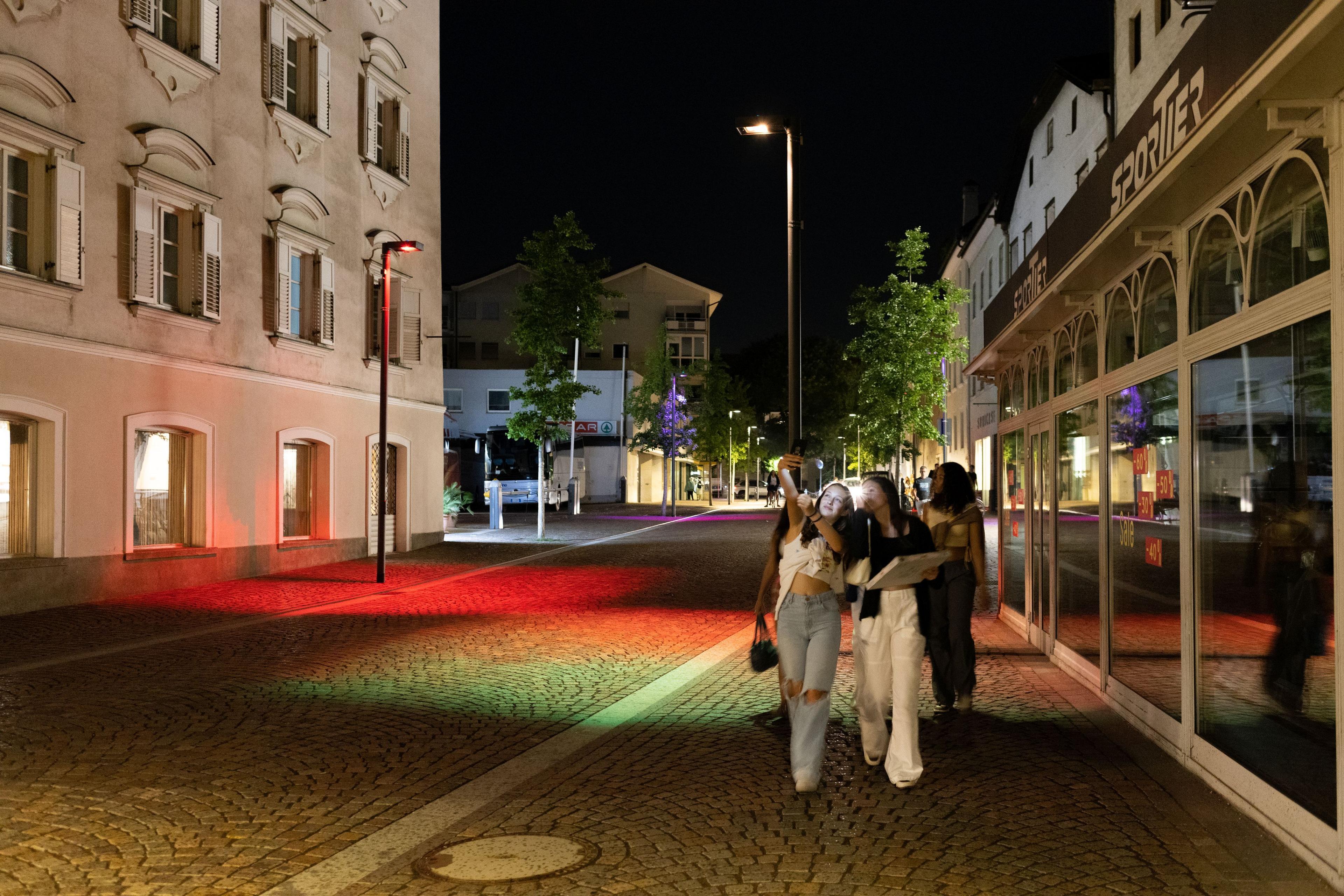

FO ensures safety and atmosphere in the dark
Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
FO downloads
Would you like to find out more about FO? Here you will find all product-specific documents, from images to data sheets.
