Product Family

The if round product family is the round version of the if product family. It is the perfect solution for directional light on walkways, in gardens and on squares in architectural surroundings. With its uniform illumination, it also meets the highest requirements of clients, architects and planners.

ifround

“Our motivation was to develop a simple bollard luminaire that can be integrated unobtrusively into any environment thanks to its slim elegance. In terms of design, if round harmonizes opposites: soft radii in the vertical and clear edges in the horizontal.
Moritz Kessler, Designer

What sets if round apart

Compact, round design

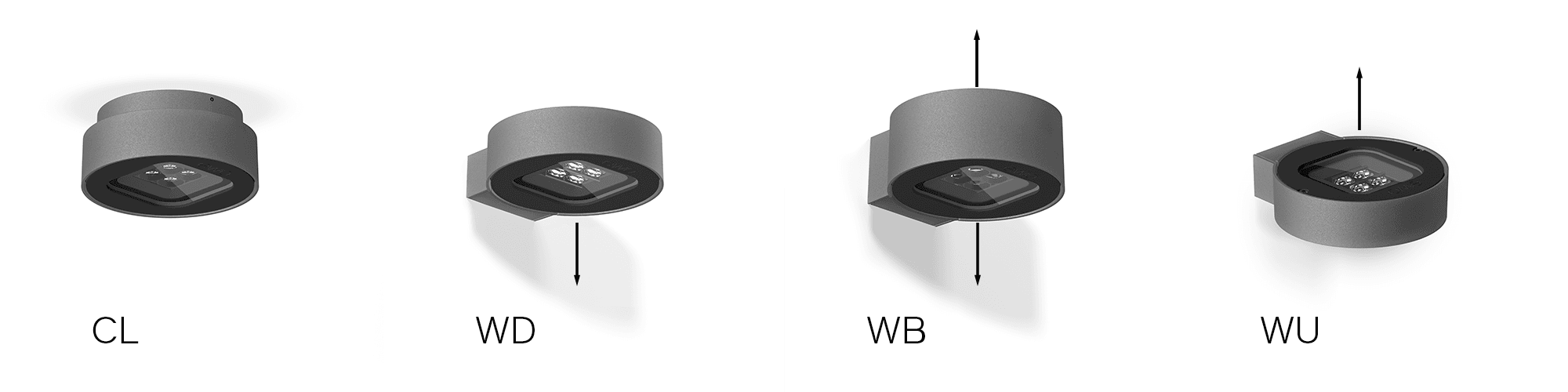

if round is available in bollard, wall-mounted (with and without uplight) and ceiling-mounted versions and is characterized by compact dimensions and an elegant, modern and round design.

Flexible Shape of Light

By using a single LED module with 4 LEDs, if round offers a range of light distributions as well as the option of adding factory-installed ewoLightLayers such as an integrated RBL (backlight shield) and AGR (anti-glare shield) as well as a visor to conceal the light source.

Solid construction

Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).

Technical data

Housing accommodates 1 lighting unit (LU), 4 LEDs
Current feed: 200–700 mA, depending on ambient temperature
Product compatible with A–Series
Electronic control gear integrated
Various light distributions for walkway lighting
Lens made from PMMA
Cover in single-pane safety glass (ESG), satin-finished
Die-cast aluminum housing
Pole made of extruded aluminum profile
Diffuser only for "down" lighting (optional)
Finish: polyester powder coating, silver grey (RAL 9007 / DB 702), other colors upon request

Body of Light

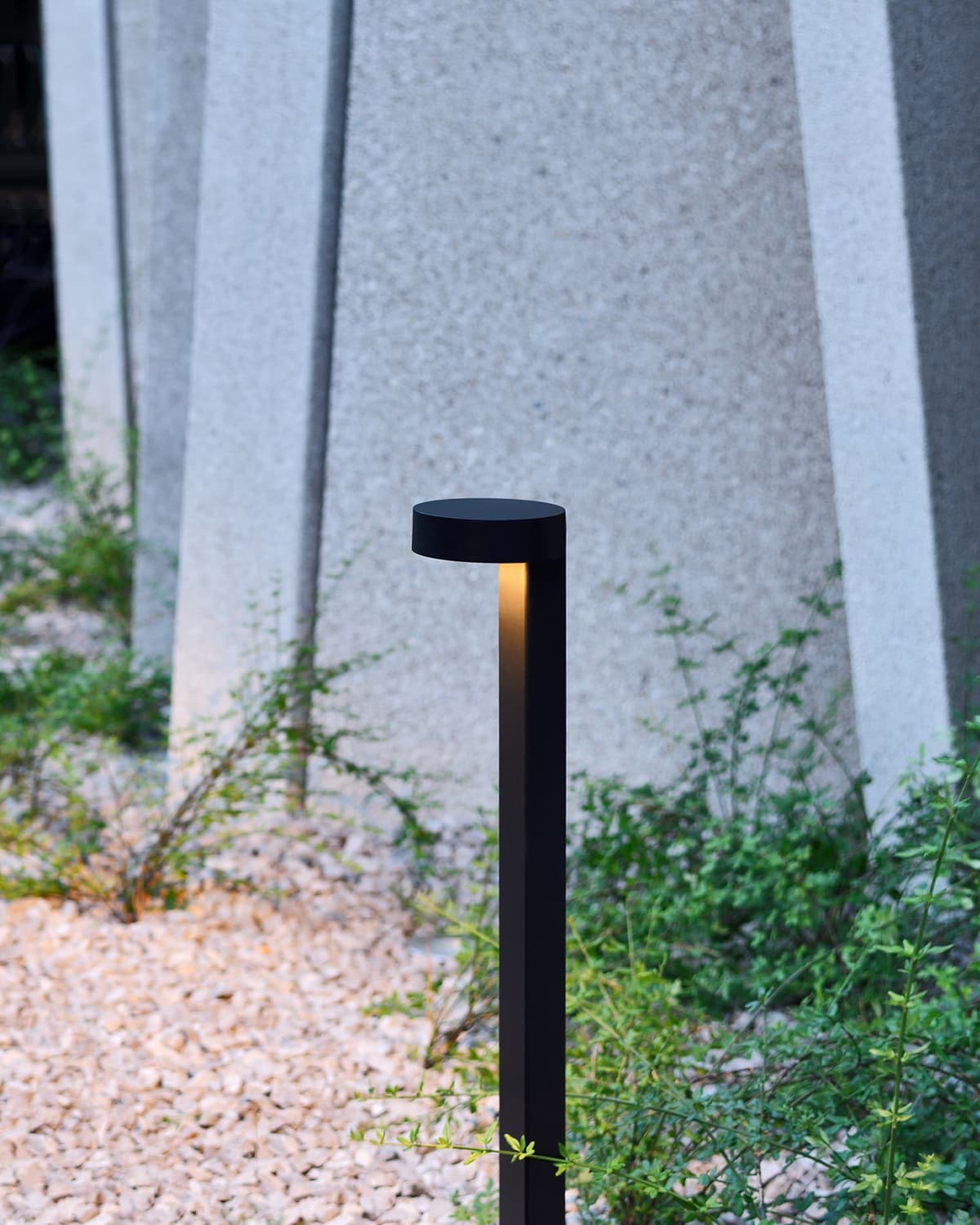

Bollards

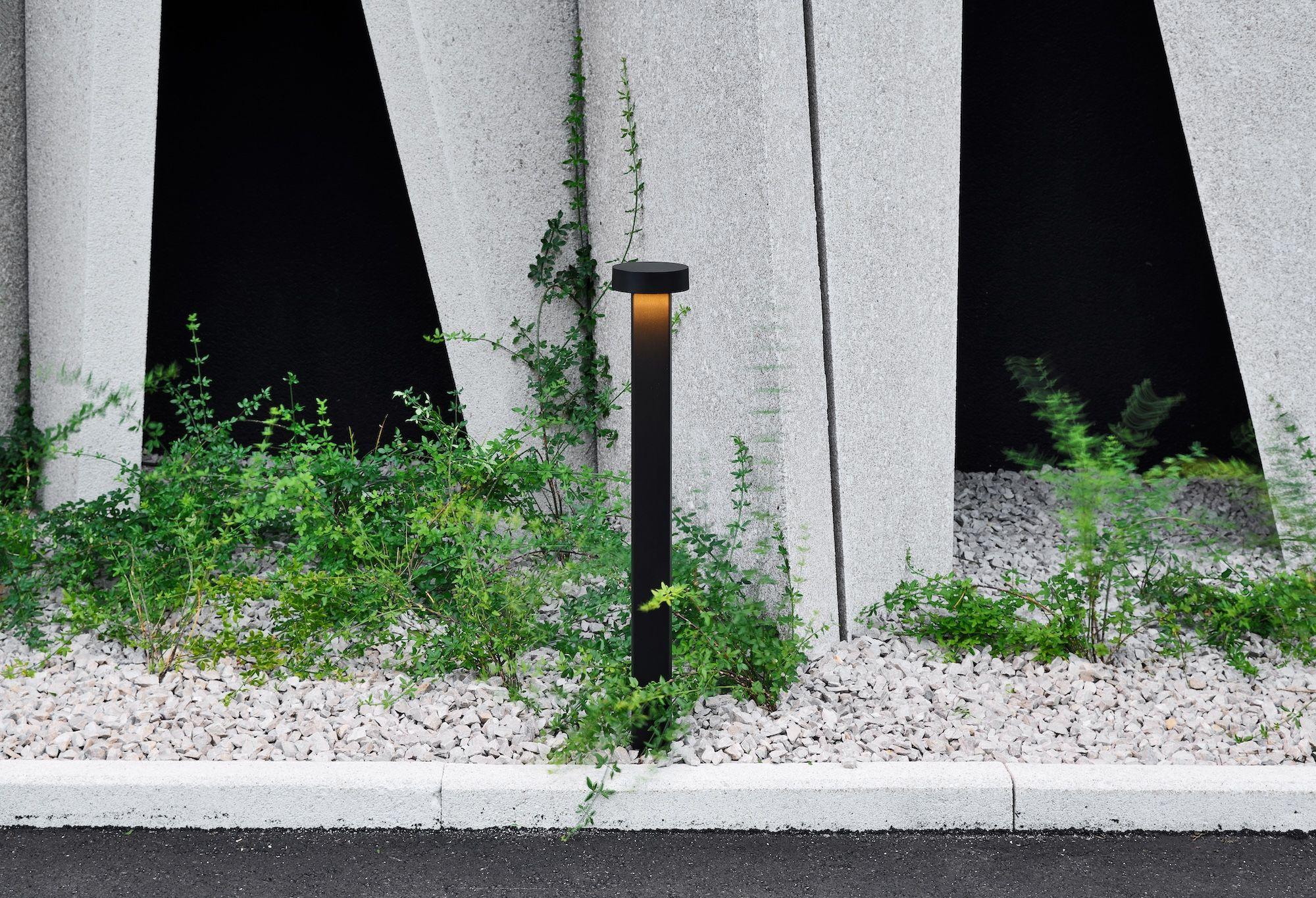

Bollard ifround

Pole
Surface–mounted
Round
Powder coated
Monochrome
General illumination
Architecture and the arts

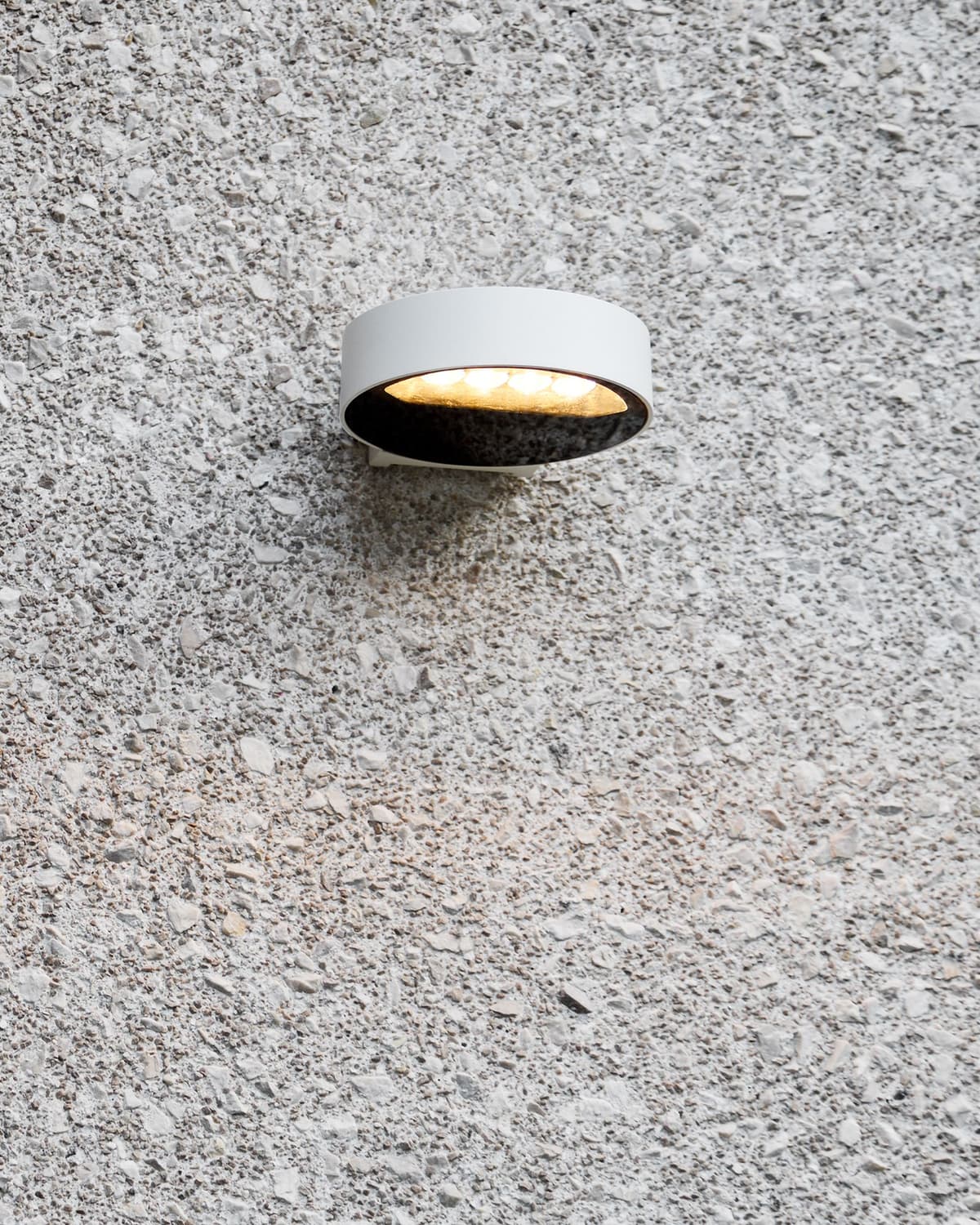

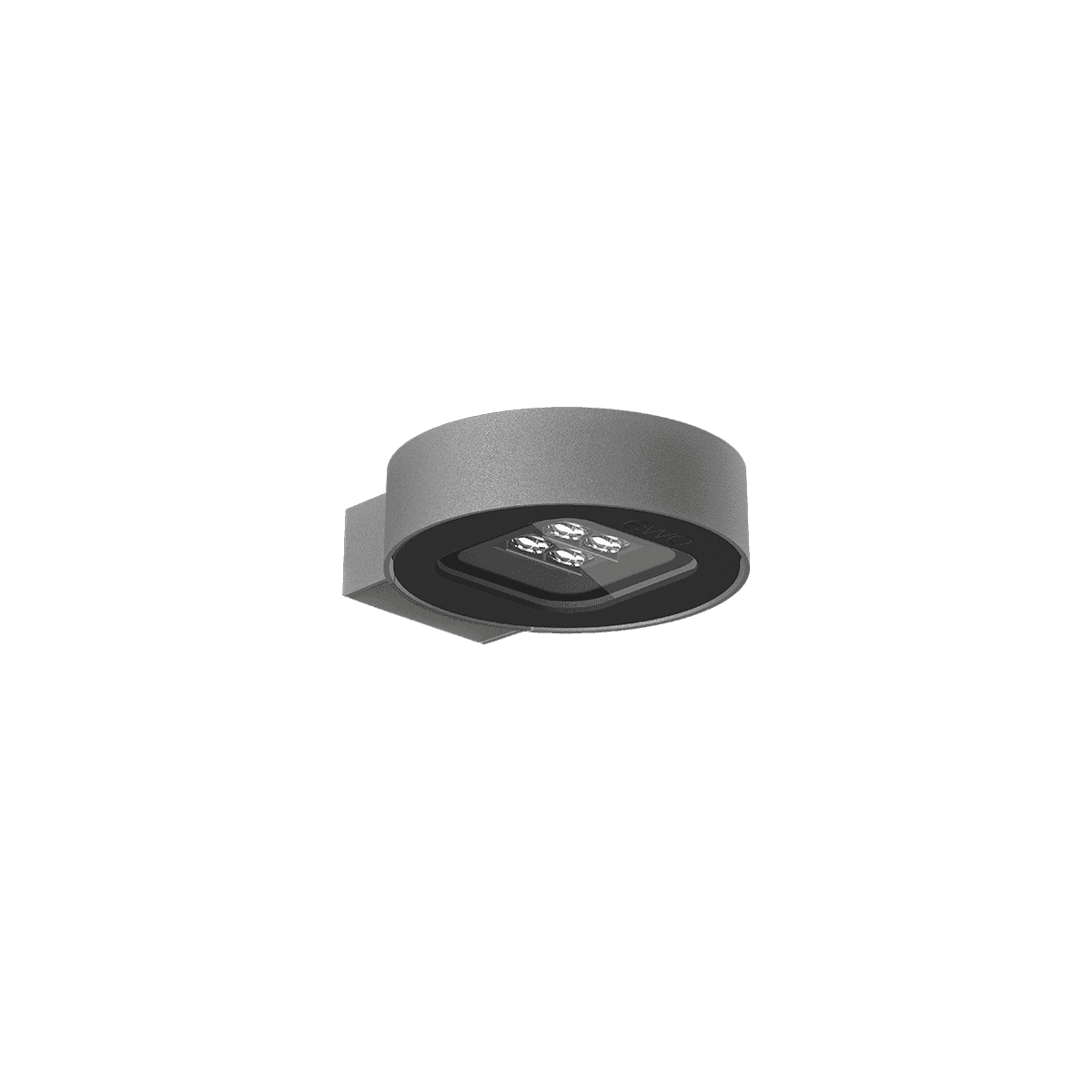

Wall luminaires

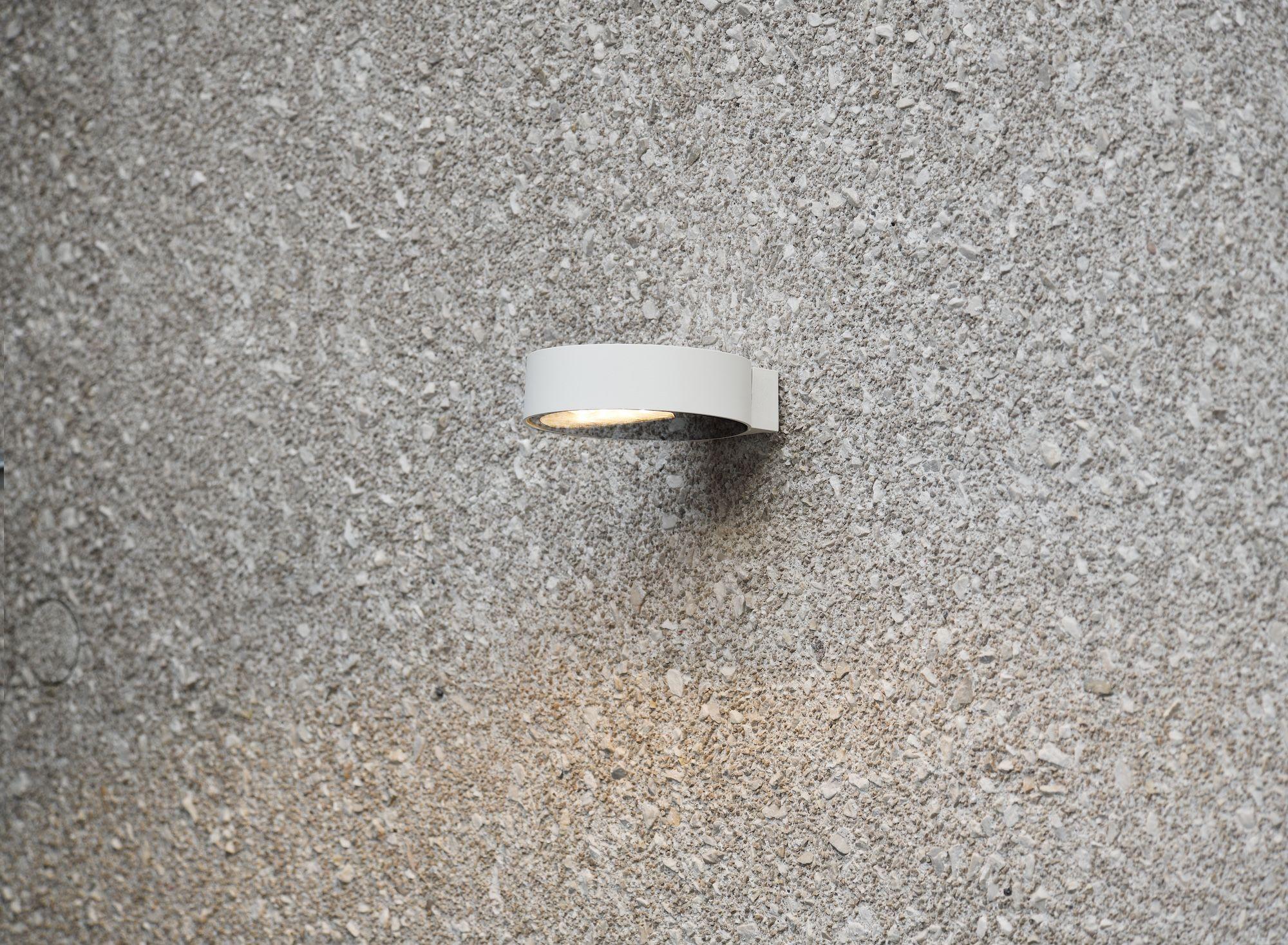

Wall ifround

Wall
Surface–mounted
Round
Powder coated
Monochrome
General illumination
Architecture and the arts

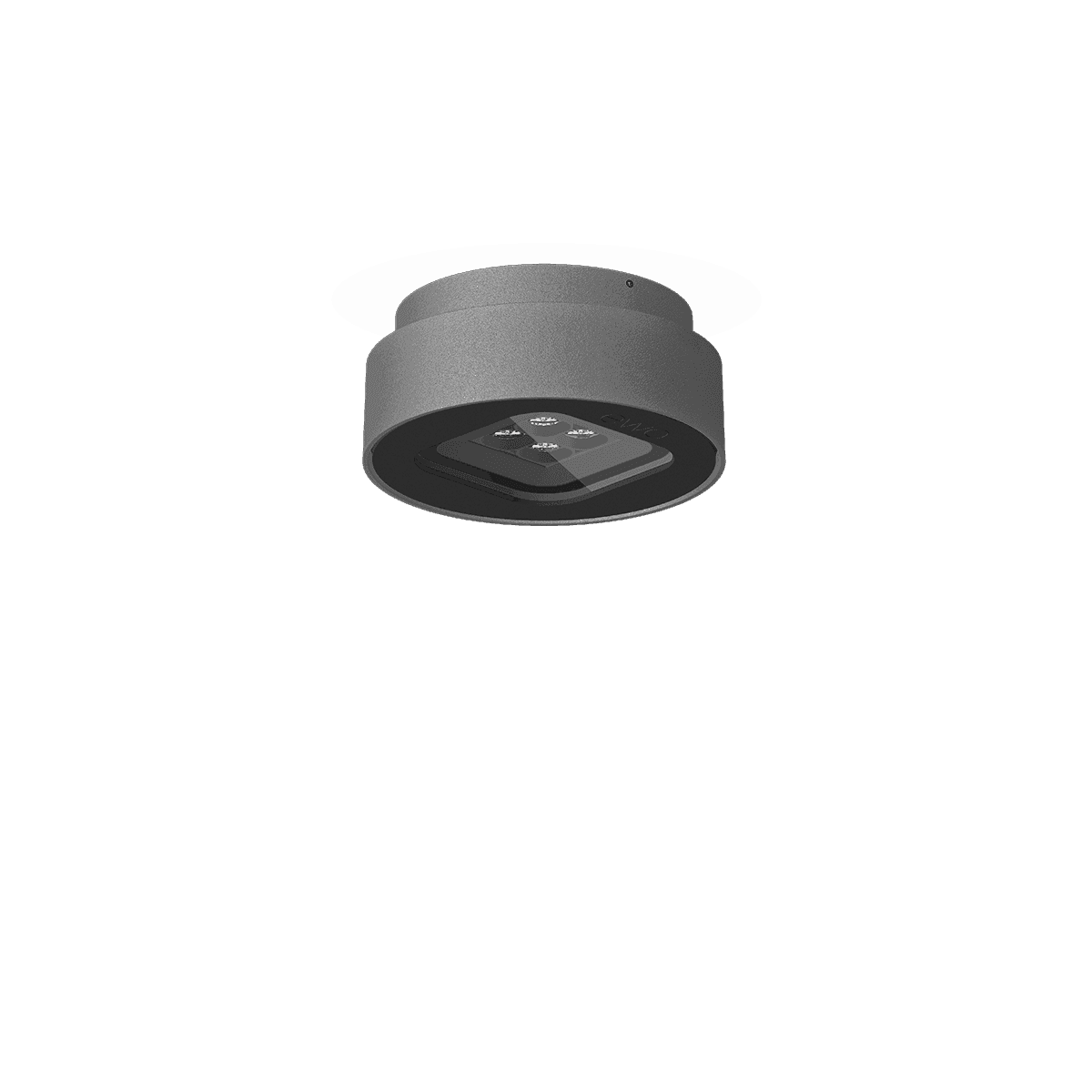

Ceiling luminaires
Ceiling ifround

Ceiling
Surface–mounted
Round
Powder coated
Monochrome
General illumination
Architecture and the arts

Shape of Light

The luminaire head of the if round can accommodate 4 A–Series LEDs in one module. This opens up the entire modular system of our lightshaping technology to planners, from symmetrical and asymmetrical light distributions to individual configurations. The A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

Intelligence of Light

The if round product family can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. Control via DALI is possible with an external control gear (accessory).

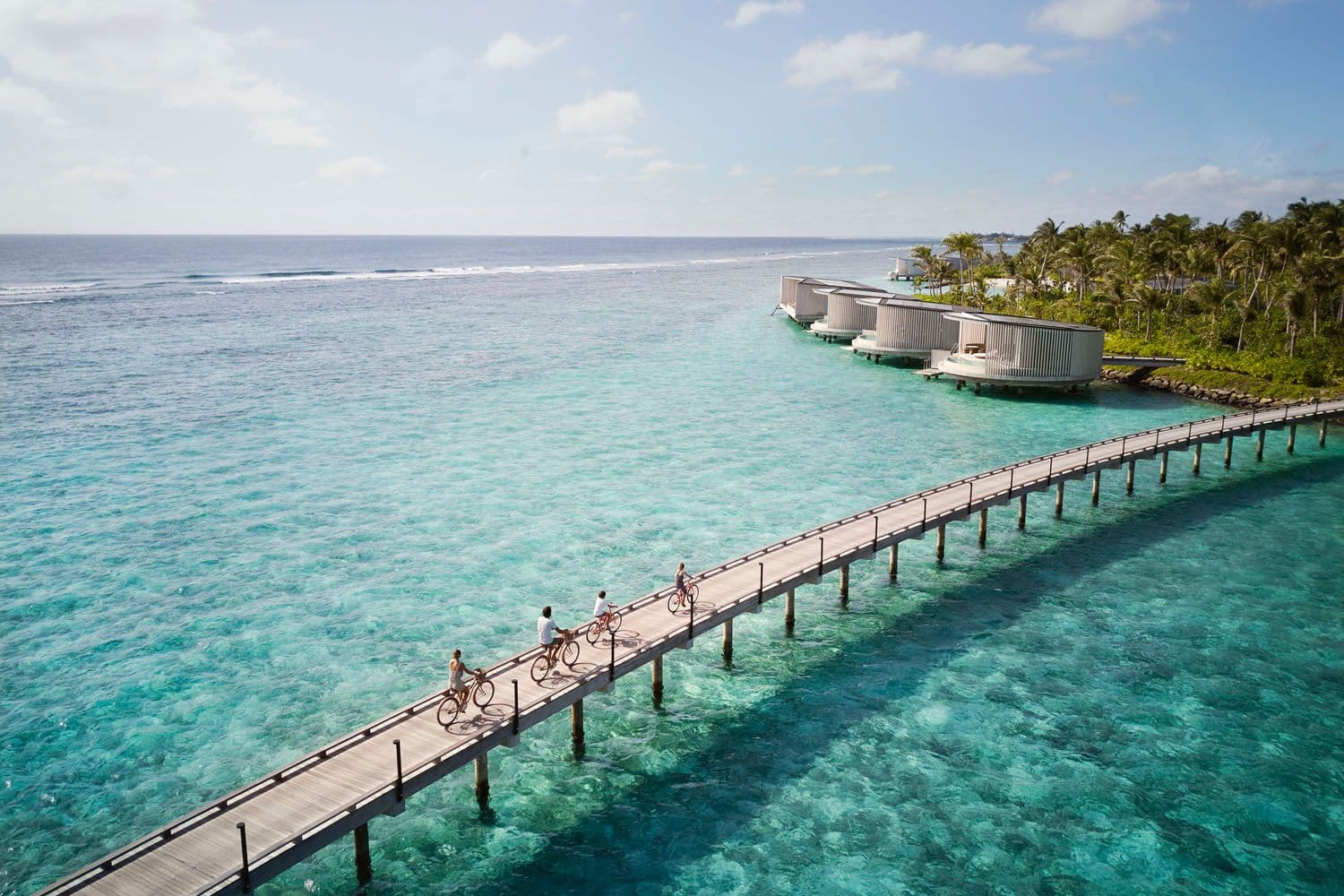

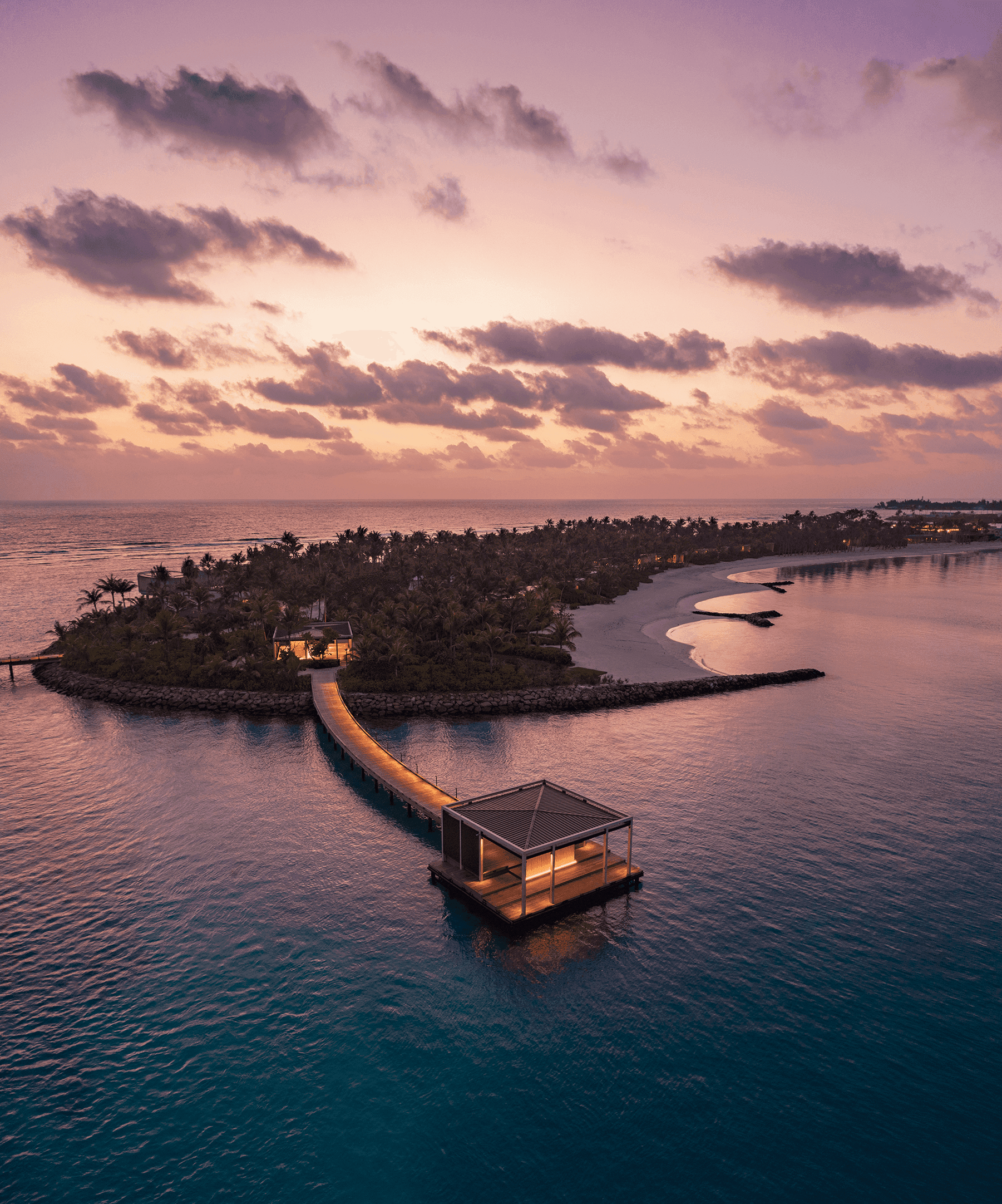

Ritz Carlton, Fari Islands, Maldives © Sonia Graupera

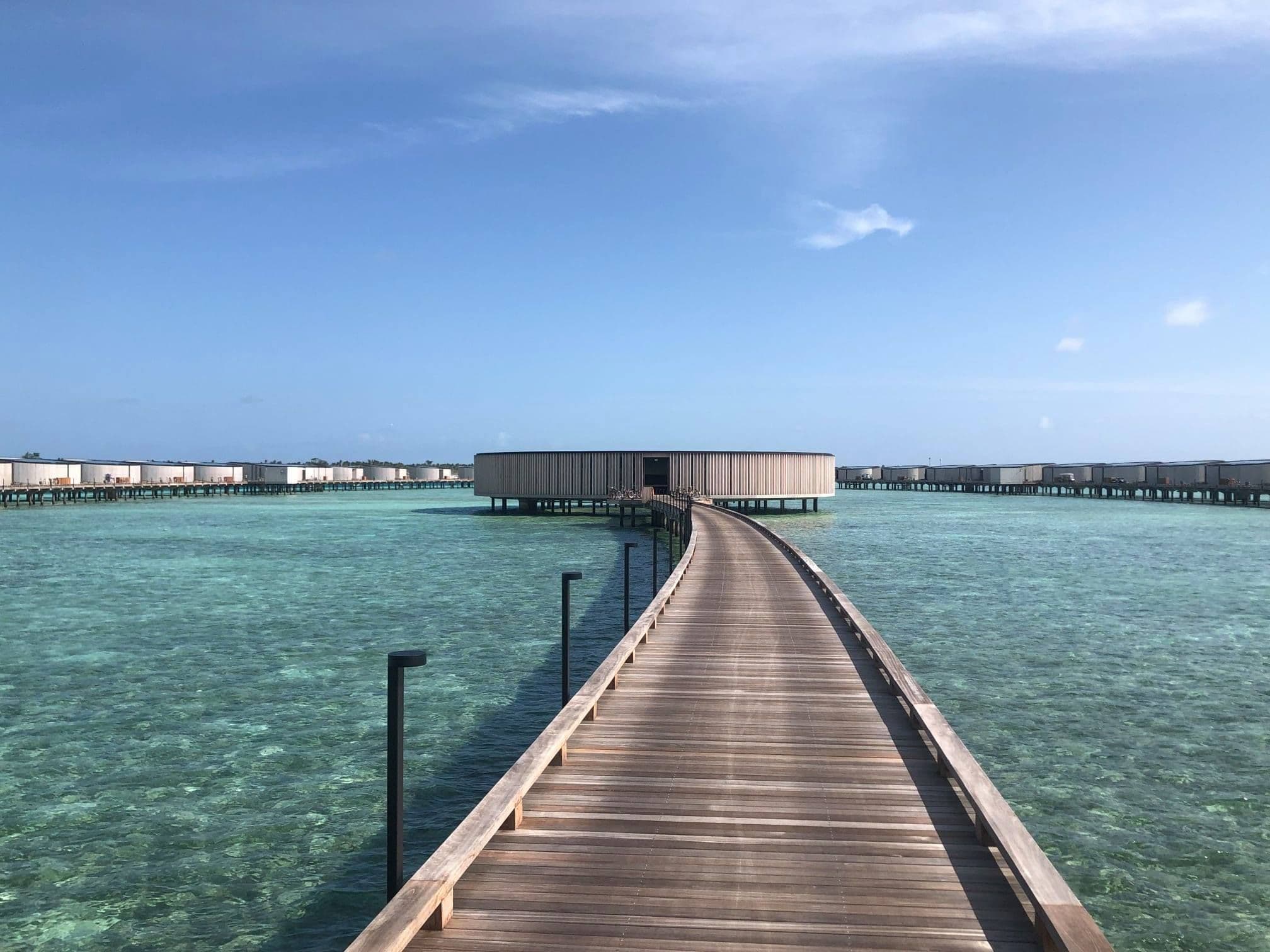

At the Ritz-Carlton Resort in the Maldives, if round was used on the scenic jetties and in the outdoor areas

Ritz Carlton, Fari Islands, Maldives © Sonia Graupera

Due to the location in the middle of the Indian Ocean, in an environment with a high salt content, the luminaires were subjected to the ewoECP (Extreme Corrosion Protection) surface treatment

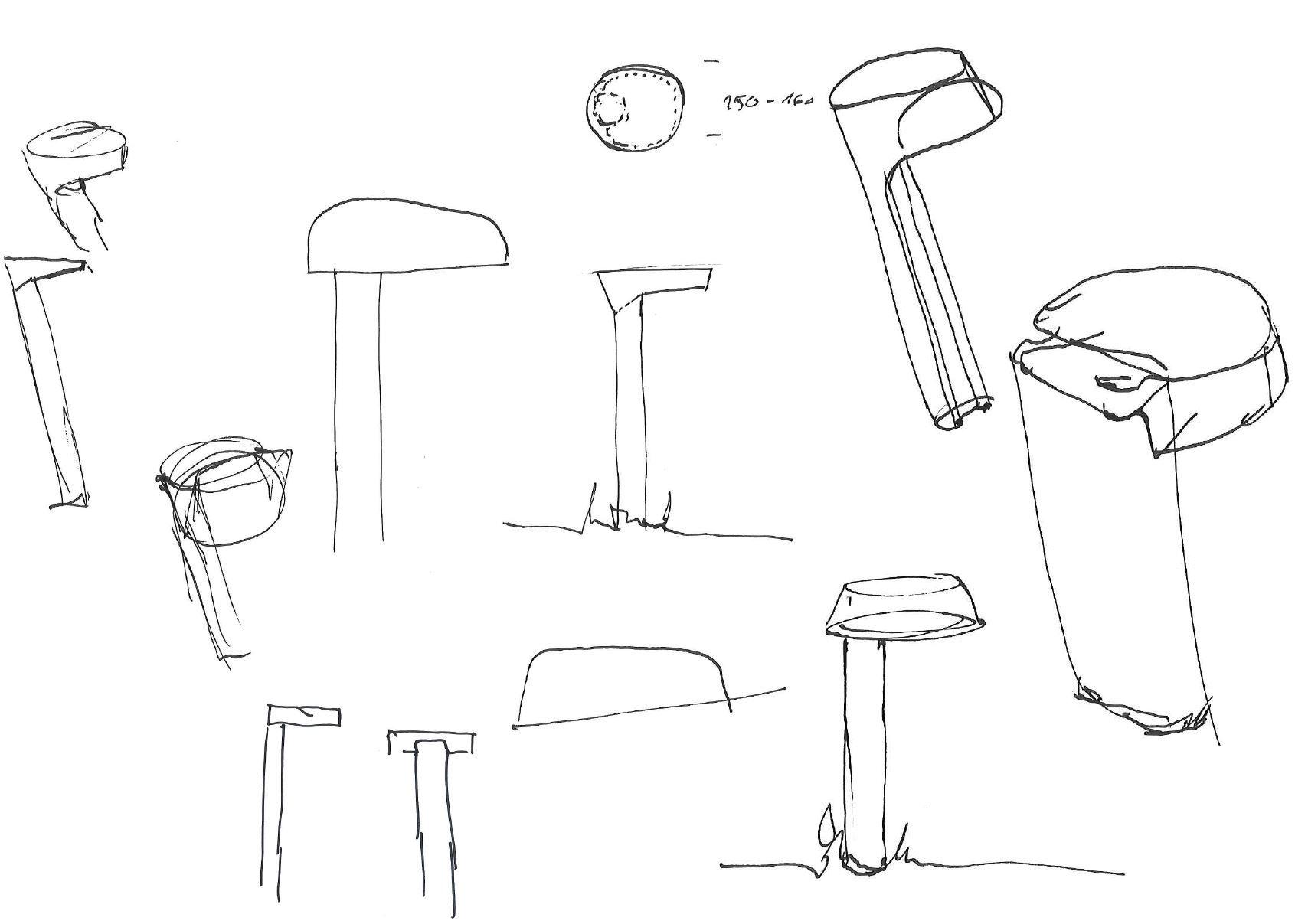

Designed by Moritz Kessler

if round is a development by product designer Moritz Kessler, with whom we have collaborated for many years. He designed a round version of the existing if bollards.
