Product Family
The IR product family is intelligence-ready and, thanks to designer Jörg Boner, ensures an elegant appearance with high-precision optics for safety and pleasant lighting accents. And the ewoECP coating ensures high weather resistance.
IR
“IR has been developed to be intelligence-ready: this means that space has been created inside the housing for sensors and nodes—so they remain invisible from the outside.
What sets IR apart
Intelligence Ready

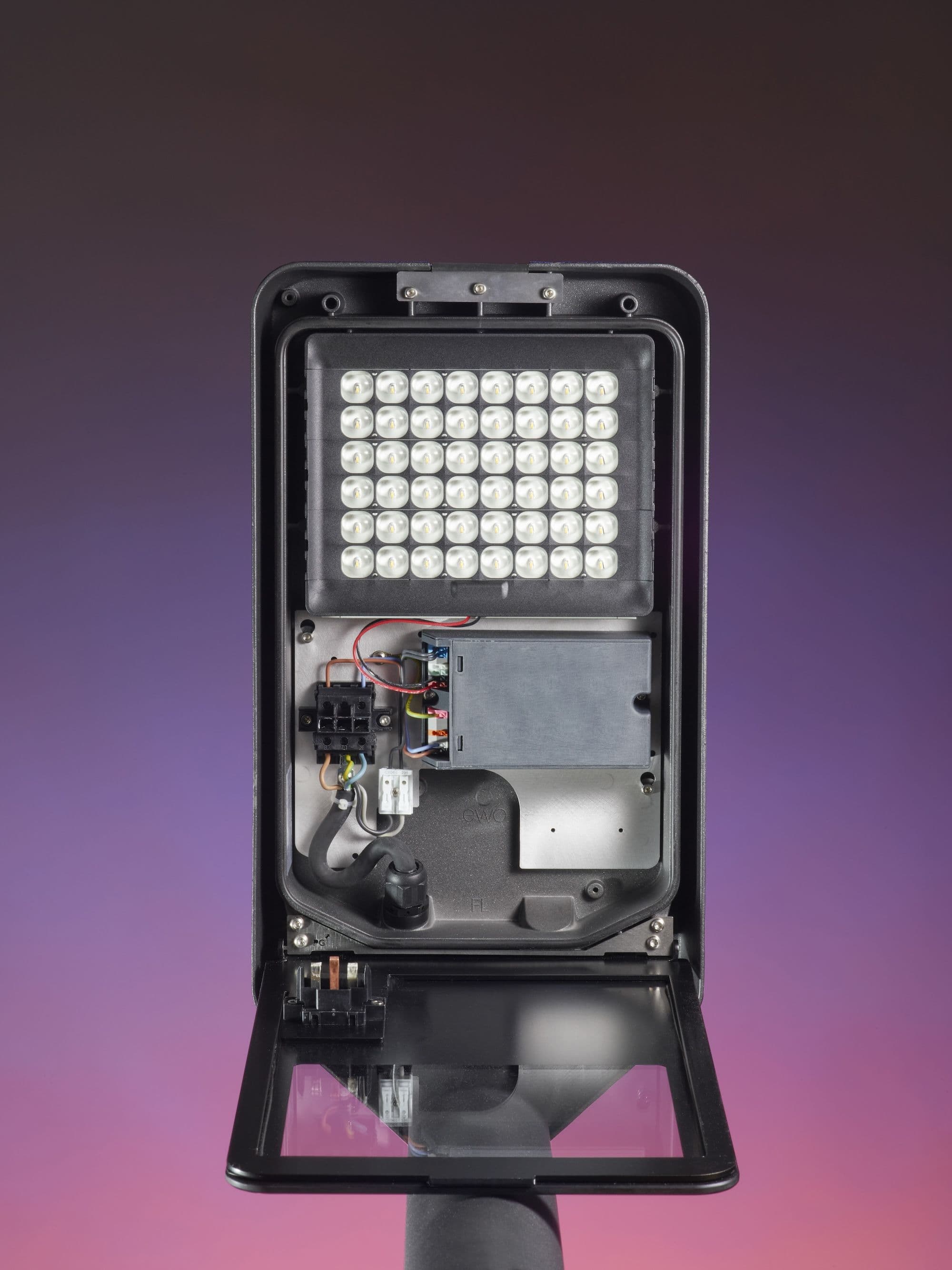

IR was developed as an optimized pole-top and wall-mounted system with up to 3 lighting modules that can be aligned in 0° and 180°. All electrical components and smarts (nodexx, antenna and sensors) can be discreetly integrated into the housing to maintain the minimalist design. Zhaga or Nema sockets can be attached to the housing.
ewoLightLayers
It is possible to add factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (anti-glare protection).
Low copper, high resistance

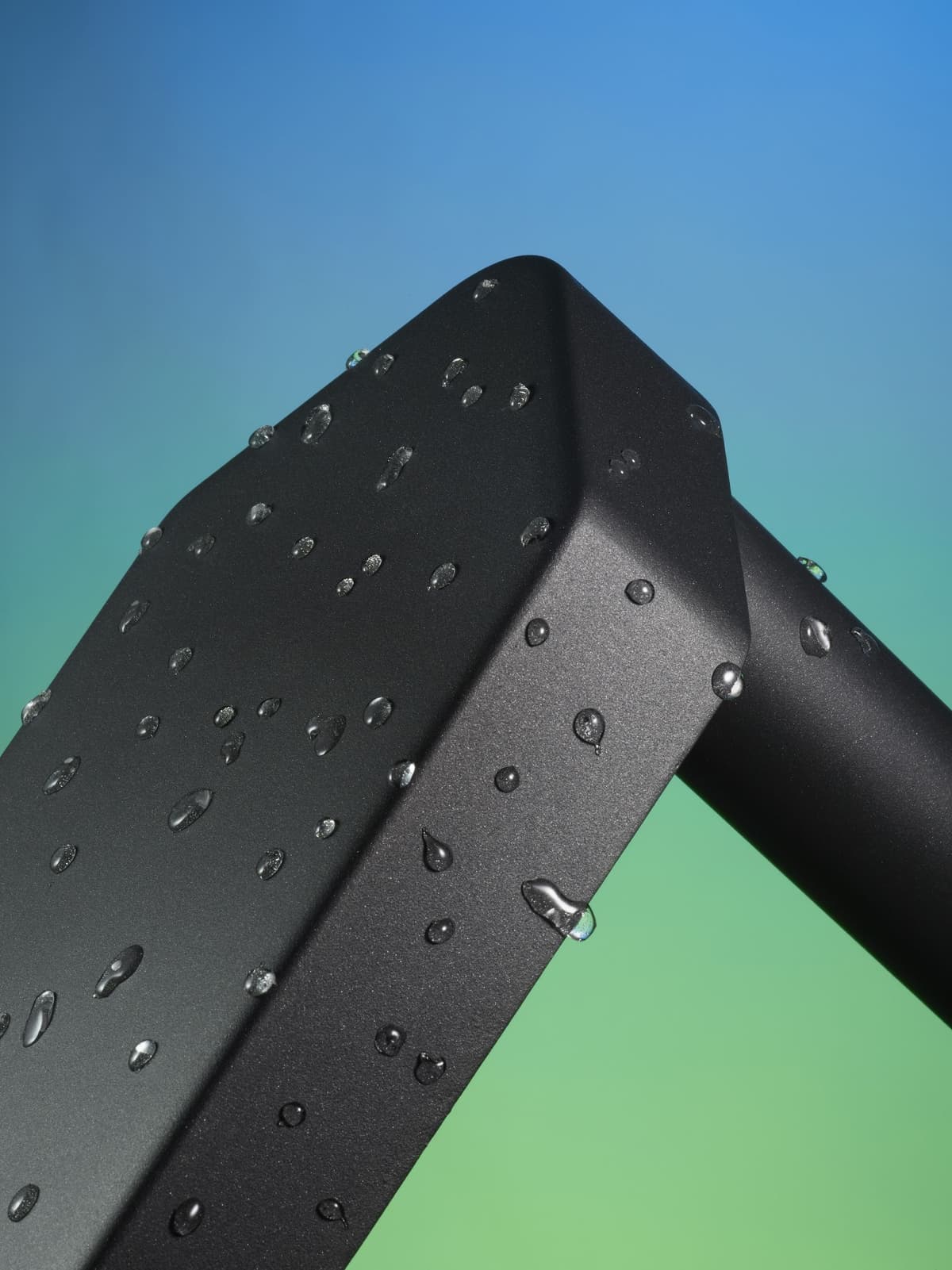

Housing with low copper content ≤ 0.08% and the option of adding additional corrosion protection (ewoECP).
Technical data
A–Series
- Current feed: 200–700 mA, depending on ambient temperature (IR3 max. 650 mA)
- Max. luminous flux 10,900 lm
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80, other color rendering indexes available upon request
- Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
- Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
- Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.
T–Series
- Current feed up to 225 mA, depending on ambient temperature
- Max. luminous flux 2,700 lm
- Color temperatures: Tunable White 2,200-6,500 K, standard CRI ≥ 80, upon request CRI ≥ 90
- Electronic operating device with DALI T8 interface.
Body of Light
Pole and wall–mounted luminaires

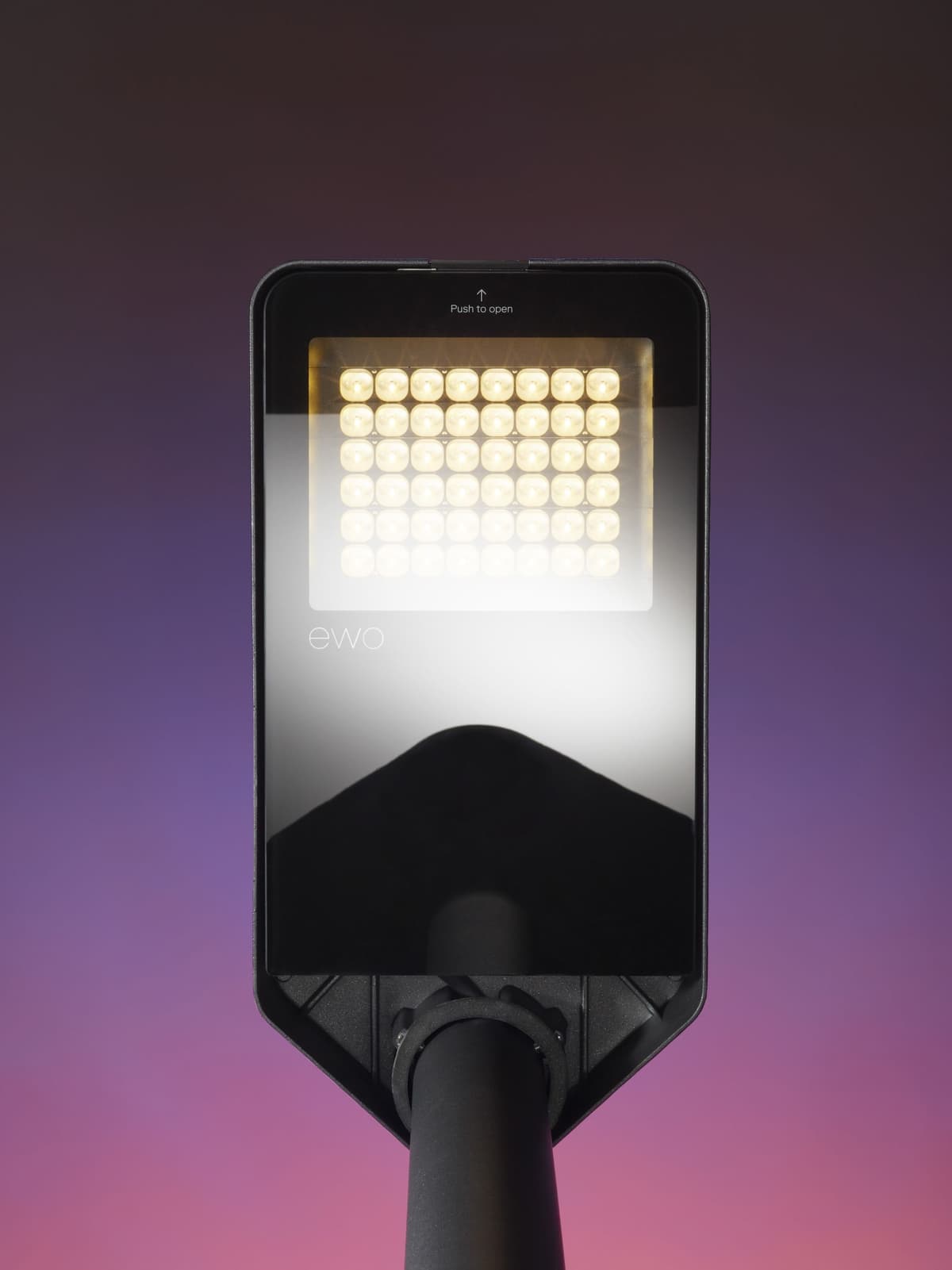

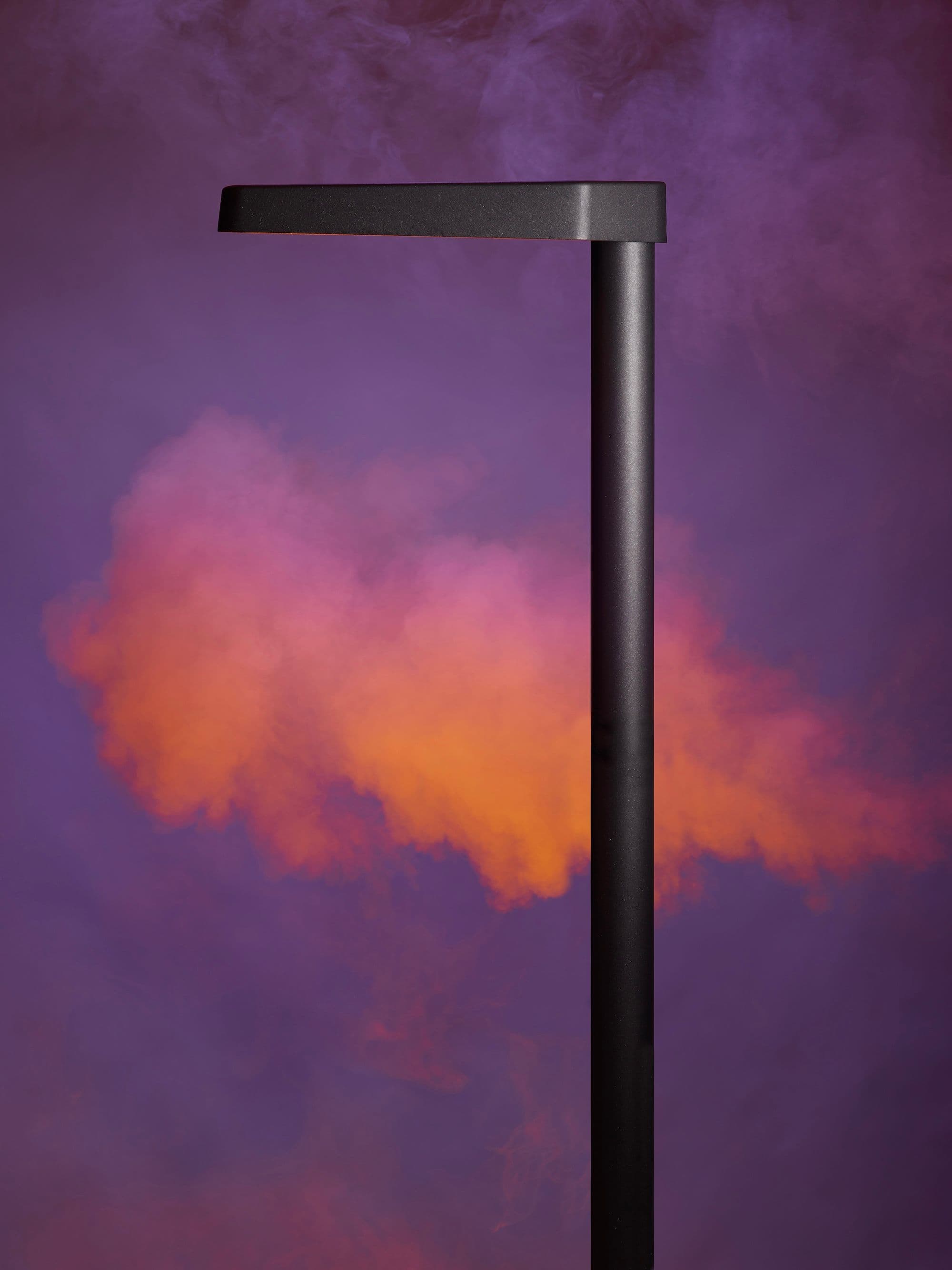

Pole IR
- Pole
- Pole–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Urban life
Pole and wall–mounted luminaires

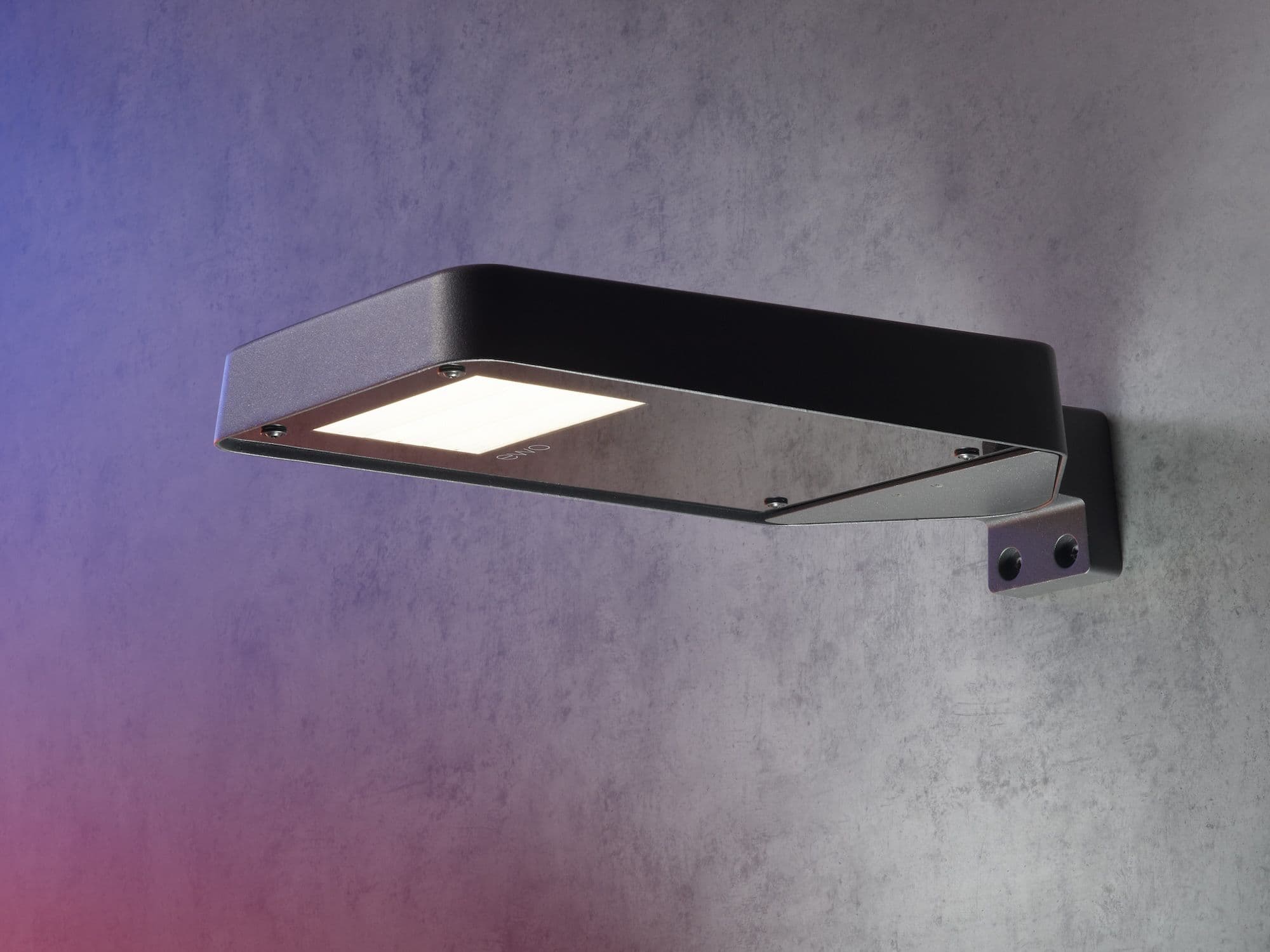

Wall IR
- Wall
- Surface–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Urban life
Shape of Light

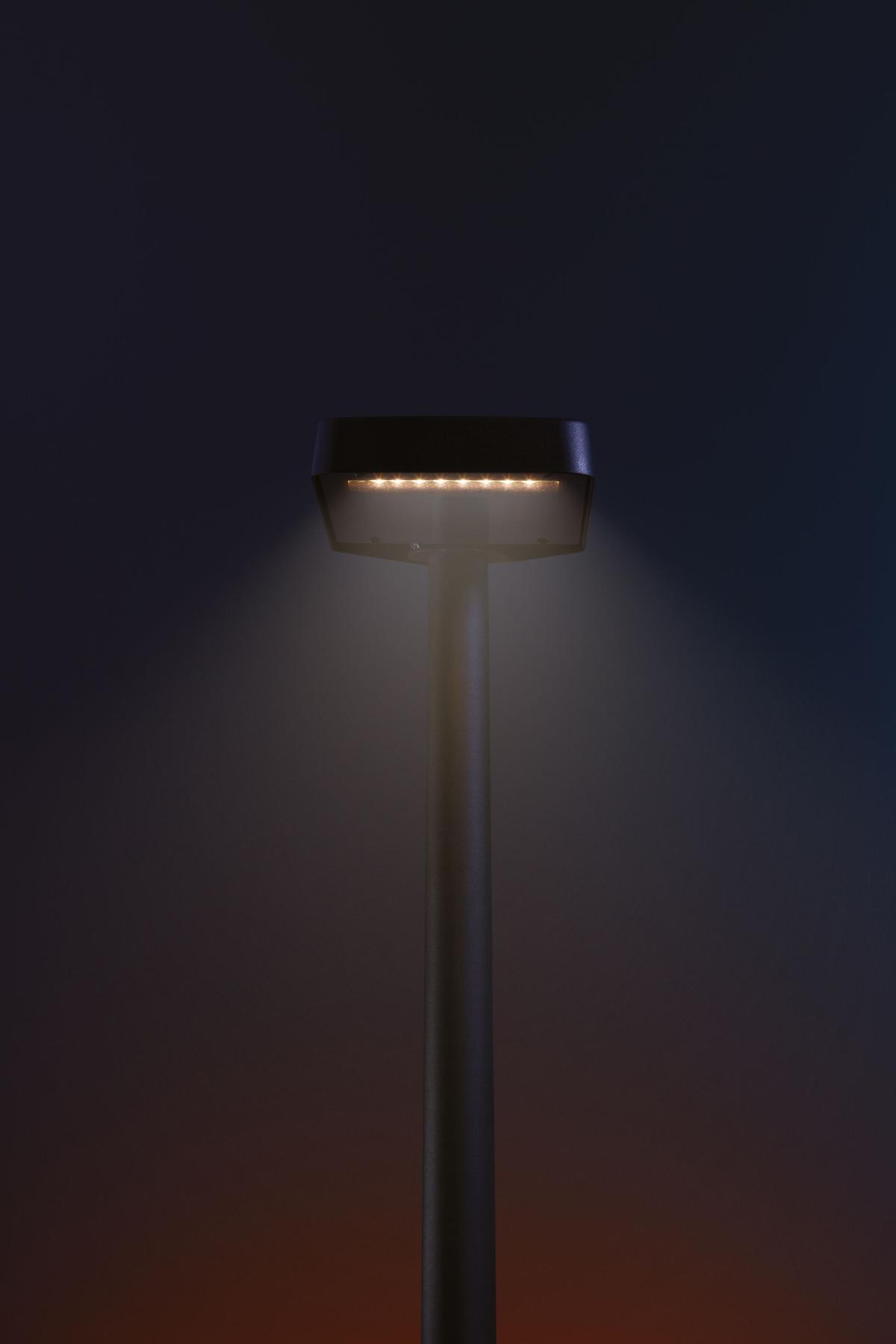

The IR product family can be equipped with up to 3 lighting modules that can be aligned at 0° and 180°. It is compatible with a wide range of light distributions—the A–Series product range alone allows 1,799,866,966 lens combinations for unbeatable illumination. In addition, the light can be further adapted to any requirements using systems such as ewoLightTile and ewoLightLayers.
© Milo Keller
© Milo Keller
Intelligence of Light

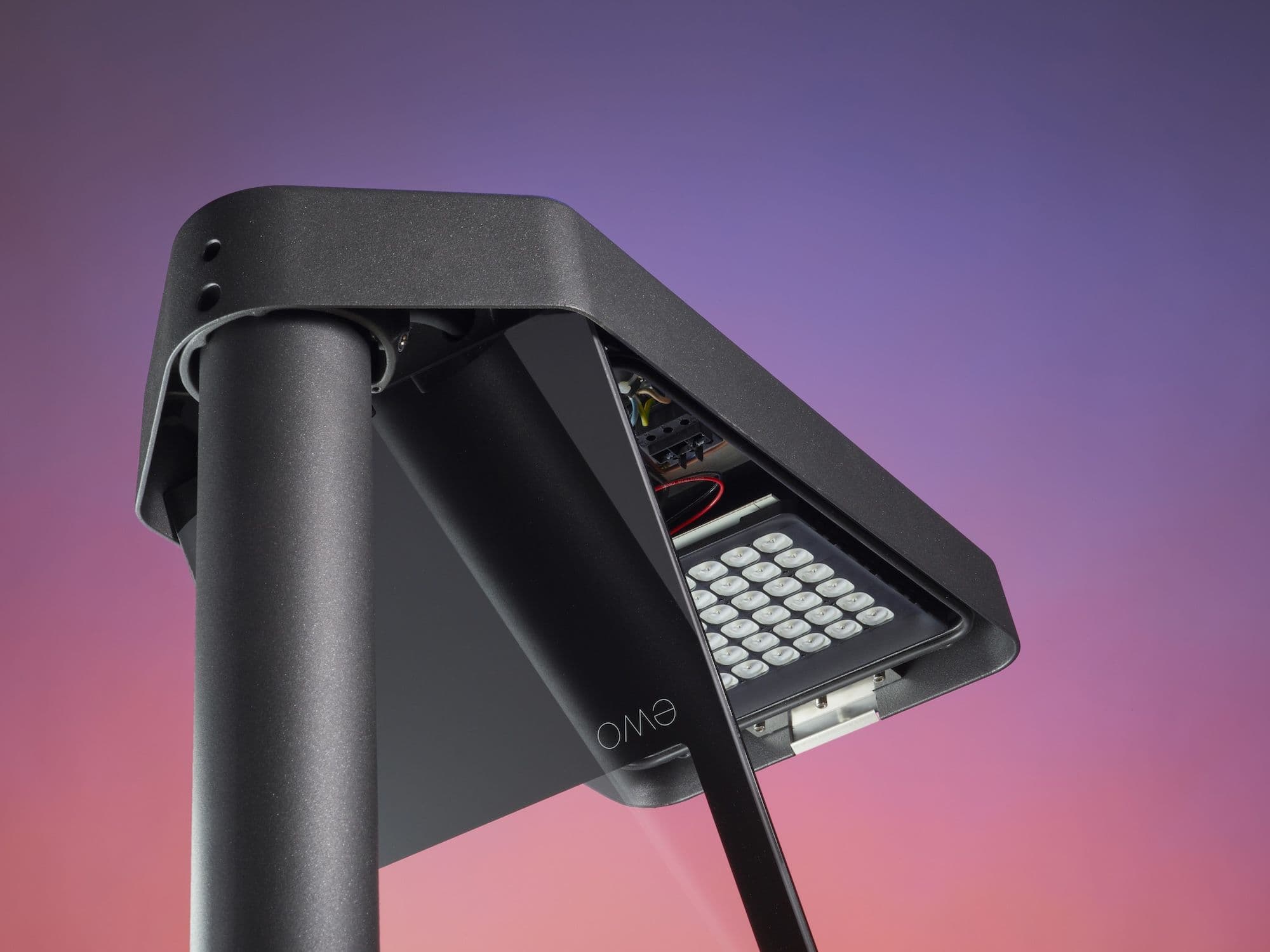

Nodes and sensors can be installed invisibly in the housing of the IR luminaires, making them easy to connect to smart city systems. The high degree of control flexibility for up to three lighting units thanks to DALI T8 enables dynamic lighting scenes, automatic lighting settings and new types of circadian night lighting.
With the help of DALI, 1-10V and standalone programming, the pole-mounted luminaire can also be easily controlled, maximizing both safety and energy savings.
© Milo Keller
© Milo Keller
Designed by Jörg Boner

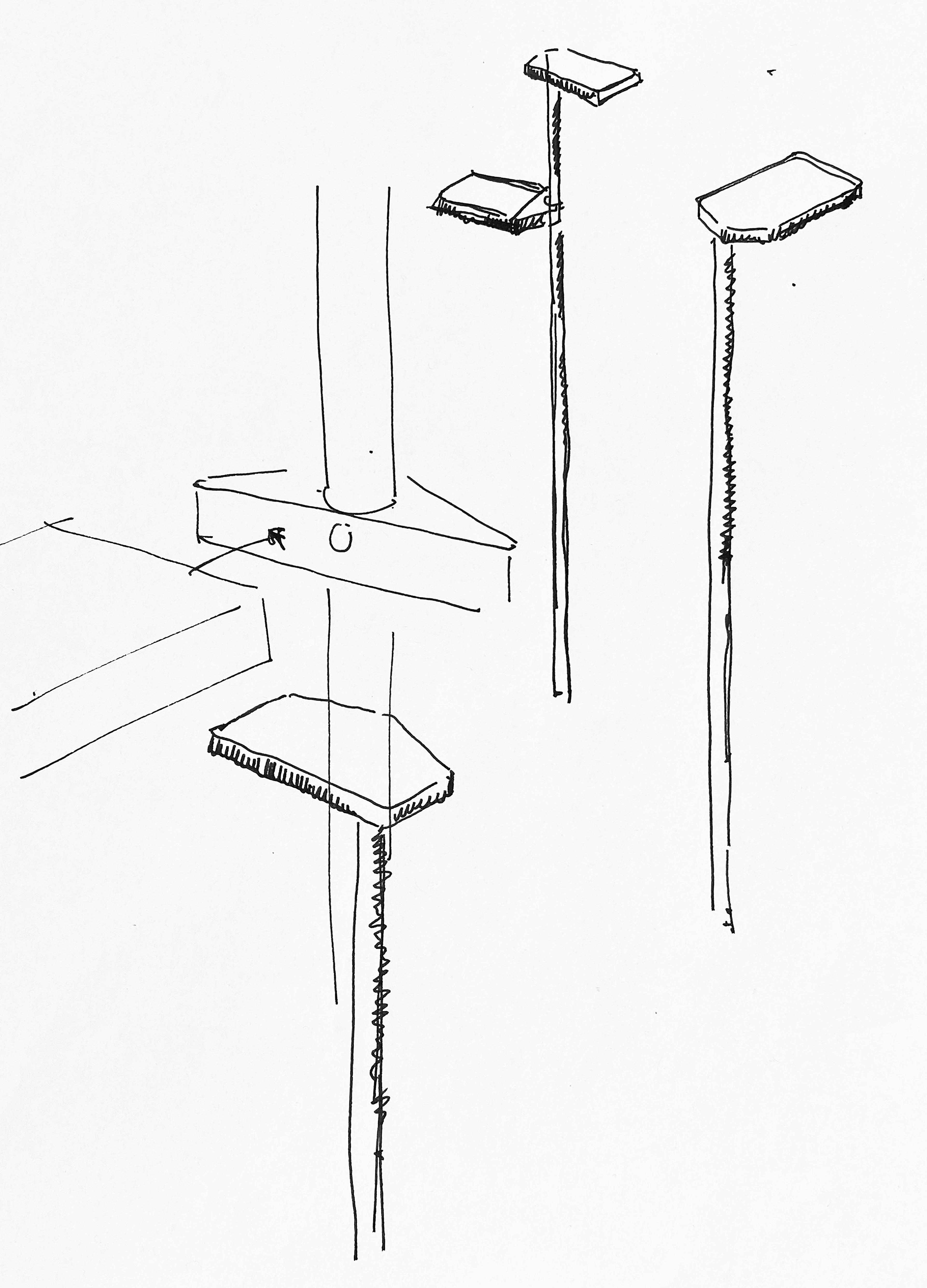

Swiss product designer Jörg Boner has created a rounded, elegant and versatile design for the IR product family, which is suitable for pole and wall mounting, with both single and double heads. By integrating the external pole connection into the luminaire head, material, costs and fittings can be saved. The back of the luminaire head facing the pole has a sculptural, angled shape.
Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
IR downloads
Would you like to find out more about IR? Here you will find all product-specific documents, from images to data sheets.
