Product Family

RAZER draws inspiration from the soft, grazing light of the sunrise and is designed for street lighting from very low mounting heights (0.4-1 m).

RAZER

“The linear RAZER system is the ideal solution for bridges or other situations where the pole height is difficult to access and maintenance is therefore time-consuming.

What sets RAZER apart

Illuminates roads from low heights

RAZER illuminates roads and paths uniformly from very low heights (0.4 m to 1 m). The luminaire was designed for installation in places where poles are not suitable or possible, e.g. bridges.

Flexibility

Thanks to precise optics such as Forward Grazing and Side Throw (AV01) as well as the adjustment of the shield and tilt, RAZER can be adapted to specific project requirements such as illuminance, uniformity and Upward Light Ratio (ULR).

Compact size

With a length of just 280 mm, RAZER is ideal for integration into the infrastructure—the linear system can be adapted to the different sizes of roads and paths by tilting it.

Weather resistant

Thanks to recessed mounting into the structures along the road, the weather poses no risk of damage to RAZER. This makes the linear system ideal for locations where the climate is very harsh with strong winds.

Comfortable for the eye

Thanks to its uniform light distribution and low mounting heights, RAZER is easy on the driver's eye and prevents light pollution at the same time. The luminaire is therefore particularly suitable where conspicuous lighting is not desired.

Technical data

8 LEDs
Color temperatures: 3,000 K (other CCT on request)
CRI ≥ 80
Optic: AV01 (grazing effect)
Current feed (max.): 1,000 mA
Power (max.): 24 W
Lumen output: approx. 1,400 lm
Protect shielding against light pollution
IK10 (Polycarbonate cover)
Protection rating IP66
Housing: 280 x 56 x 60 mm
Adjustable brackets for tilting
Connectors for through wiring
Remote driver

Body of Light

Linear luminaires
RAZER

Handrail / Tube
Bracket
Linear
Powder coated
Monochrome
Grazing
Roads and traffic

Shape of Light

The RAZER product family has precise optics and a shield that can be customized. This allows the luminaire to be optimally adapted to specific requirements. A low mounting height also ensures particularly comfortable visual comfort without glare.

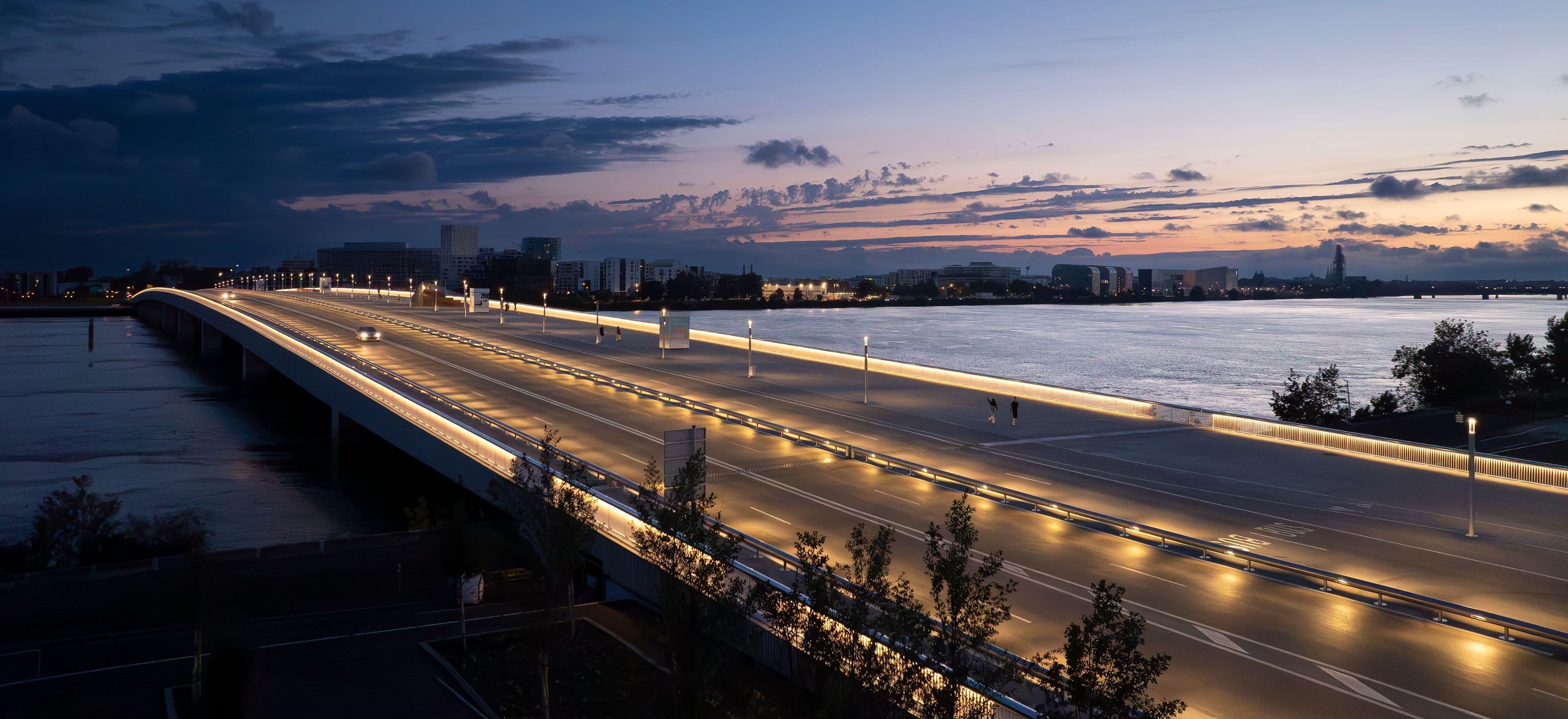

Pont Simone-Veil, Bordeaux © Xavier Boymond

RAZER was originally developed specifically for the lighting of the Simone-Veil bridge in Bordeaux, France

Pont Simone-Veil, Bordeaux © Xavier Boymond

RAZER impresses with extremely high lighting quality, thanks to which ewo was able to prevail against the competition and secure the Simone-Veil bridge project

Intelligence of Light

The RAZER product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.

Together with Align Office, we have brought RAZER to life. The CGI animation shows the innovative linear system with all its advantages—from the pleasant light for drivers to the flexible and modular design of the product.
