Product Family
With optimized optics, lightweight design and precise illumination, RIVAL increases the well-being of athletes—and reduces costs, as up to 20 % fewer luminaires are required.
Rival

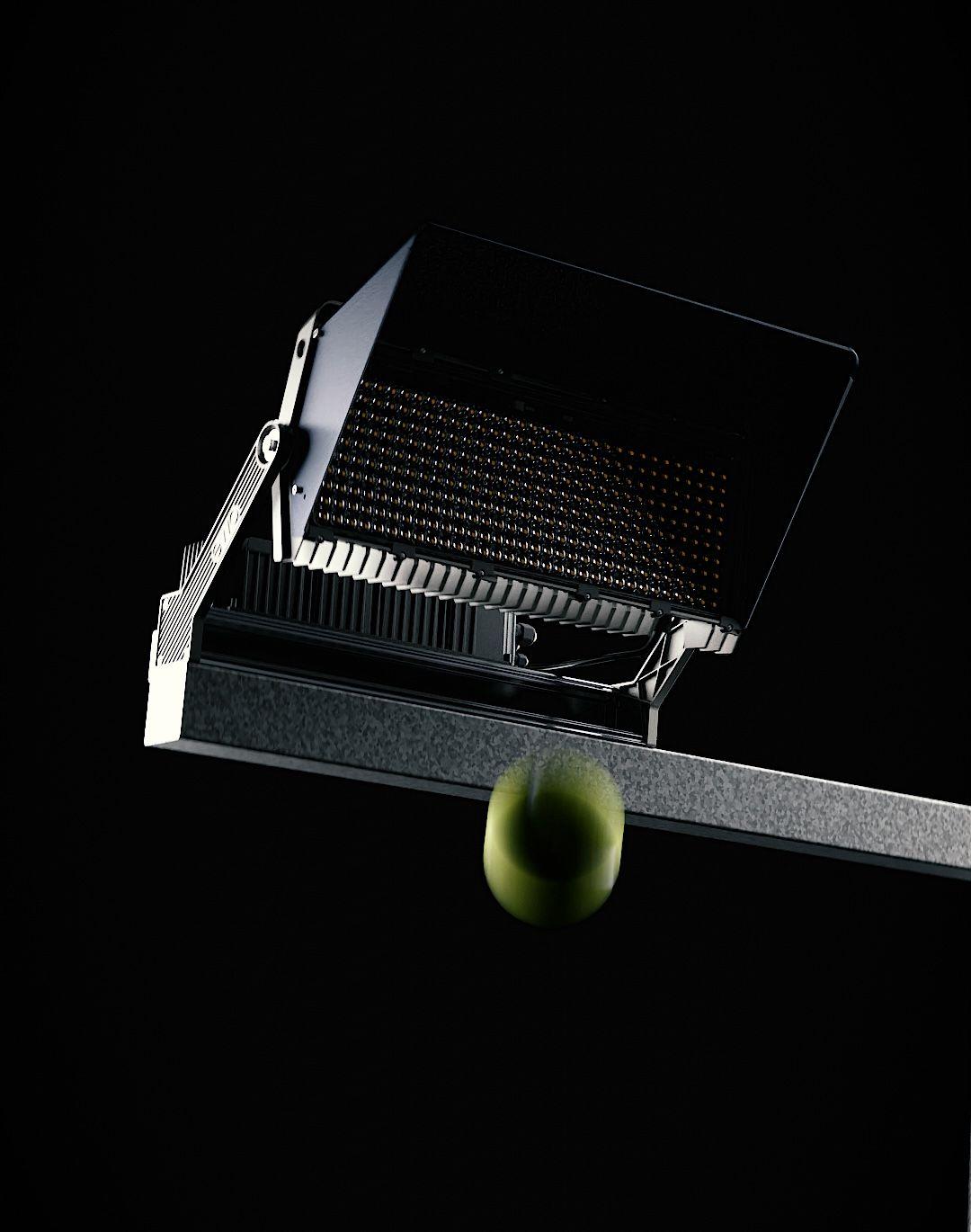

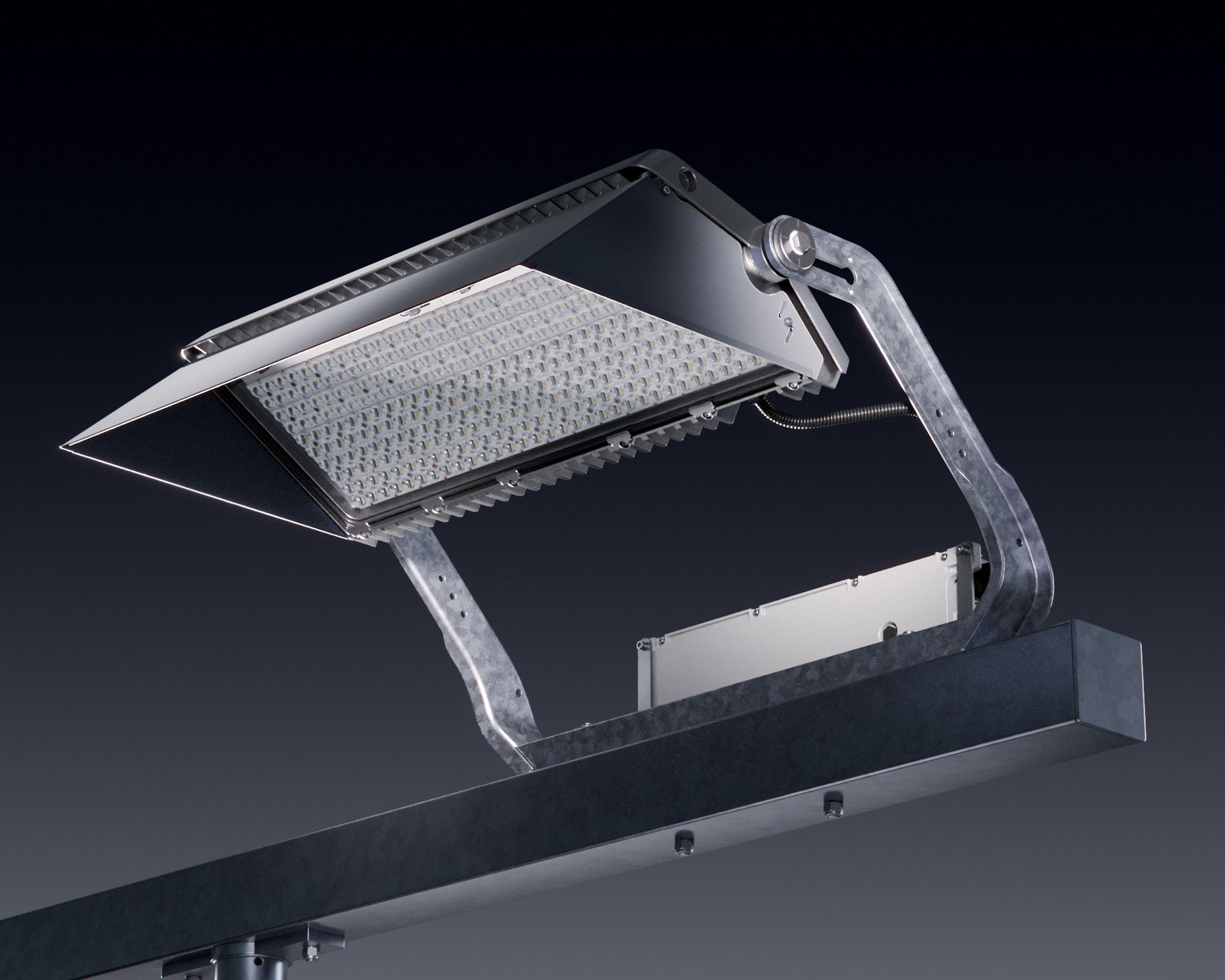

“RIVAL is a high-performance floodlight that sets new standards in sports lighting. RIVAL—ready to compete.
What sets RIVAL apart

Designed for high-performance lighting on recreational sports fields
RIVAL has been developed to provide optimum performance in terms of uniformity, efficiency and stray light control. The floodlights are designed for both combined optics (AFC01 or AFC02) and standard optics (AP10, AF02).

Dark Sky Approved
Even at 0° tilt, RIVAL can deliver high uniformity in the areas where light is needed without scattering light into adjacent areas or into the sky, keeping the night sky dark.

Solid and future-proof construction
With IK10, IP66, low copper content (less than 0.08%) and a long lifetime, RIVAL is designed to withstand harsh environments and last a long time.
Technical data
- Asymmetric Forward 44°, Asymmetric Extra Forward 55, Asymmetric Extra Forward Left and/or Right 65°
- 1,200 mA (depending on ambient temperature)
- max. luminous flux: 146,600 lm
- efficiency up to 161 lm/W
- 3,000 K (CRI ≥ 70), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), other combinations of CCT/CRI/TLCI available upon request
- Electronic operating device with DALI and DMX-RDM
- 1-10V
On request:
- electronic operating device with stand-alone programming and CLO
- separated module with Zhaga Book 18
- separated module with NEMA 7
Body of Light

Floodlights
RIVAL
- Pole
- Bracket
- Rectangular
- Powder coated
- Large area lighting
- Sports
Shape of Light

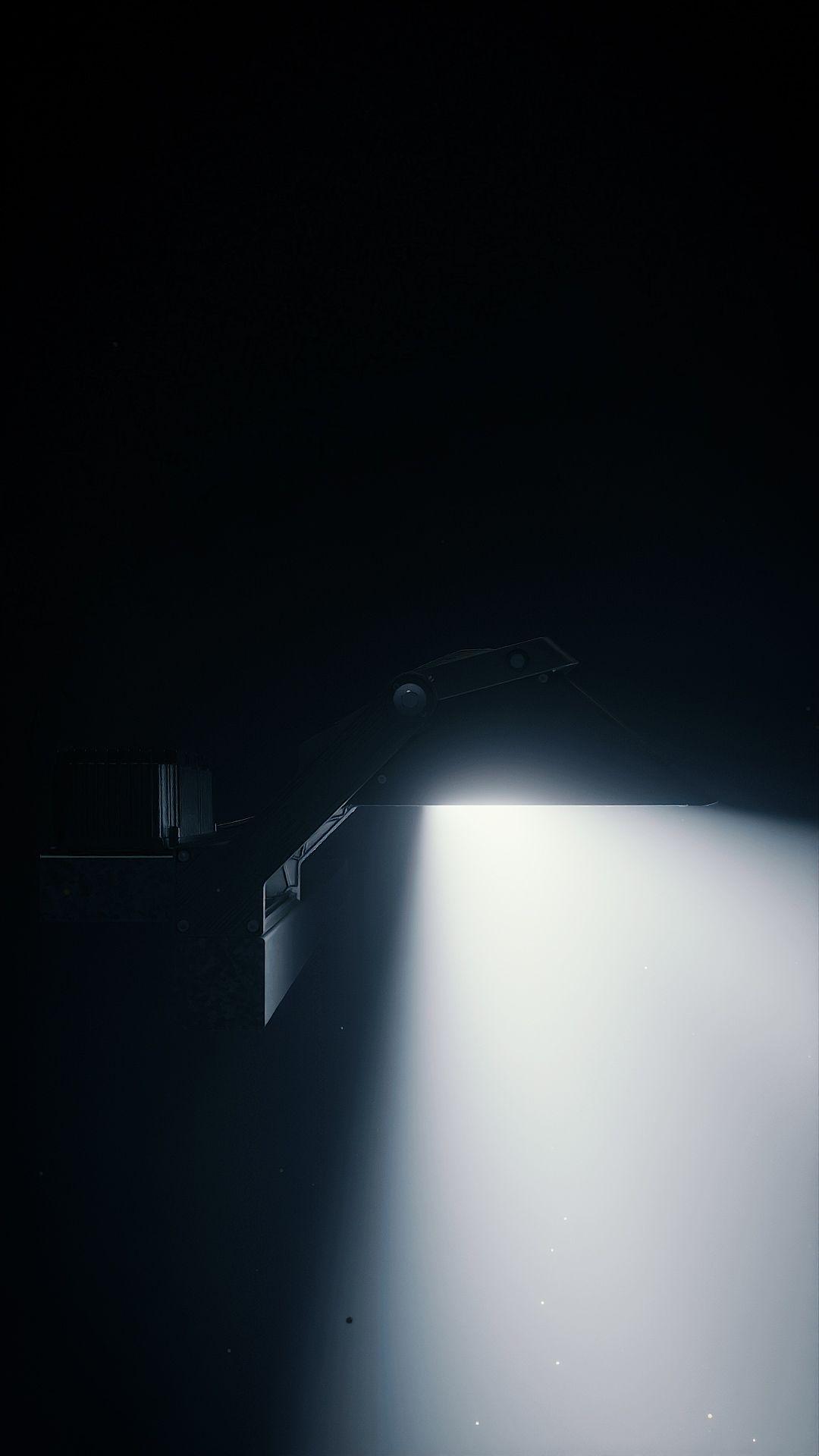

The RIVAL product family can be equipped with combined optics as well as standard optics. It is compatible with a wide range of light distributions and achieves a high level of uniformity in the areas where the light is targeted—reducing spill light and protecting the night sky.

© Align Office

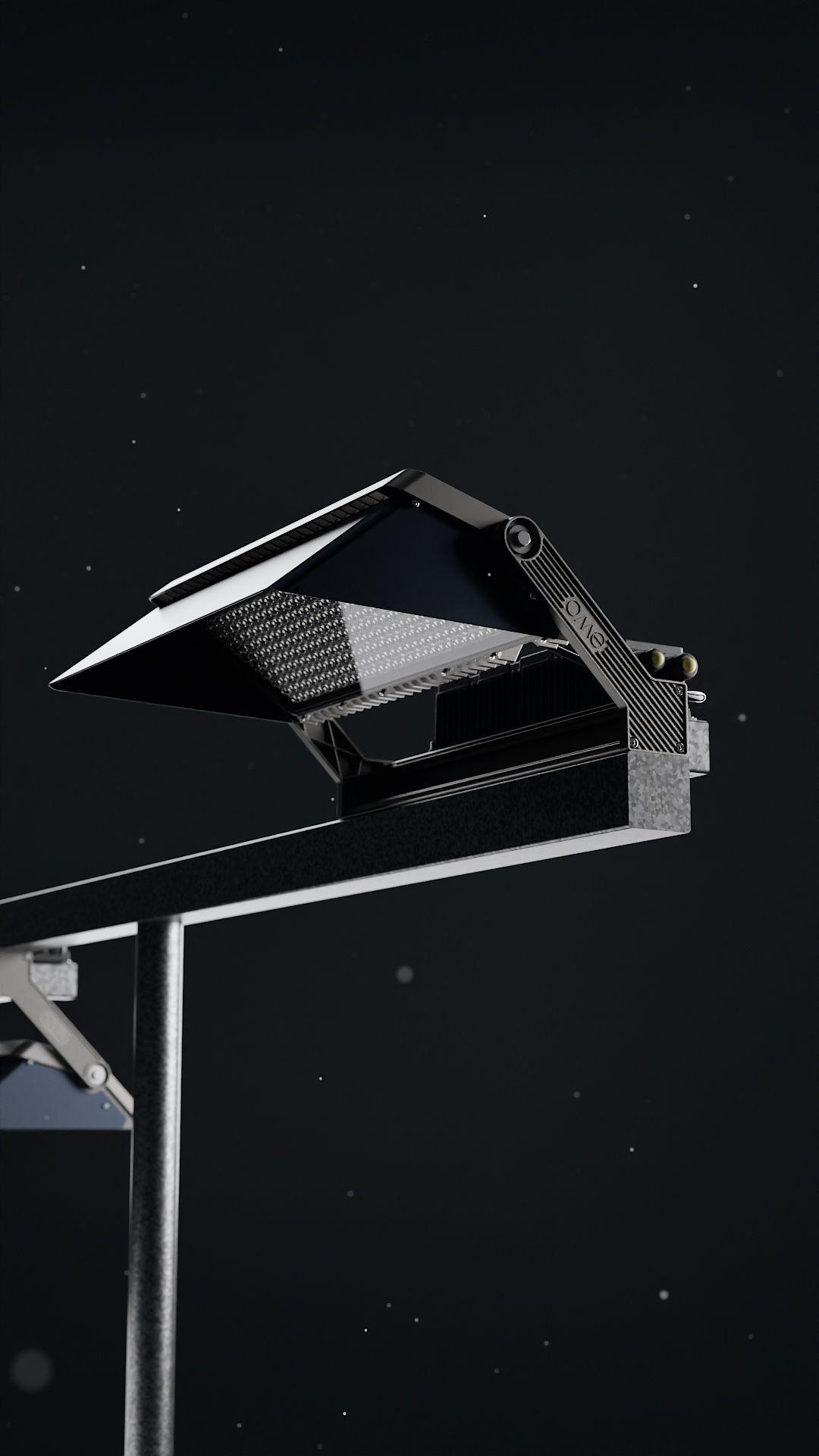

RIVAL was specially developed for lighting recreational sports fields

© Align Office

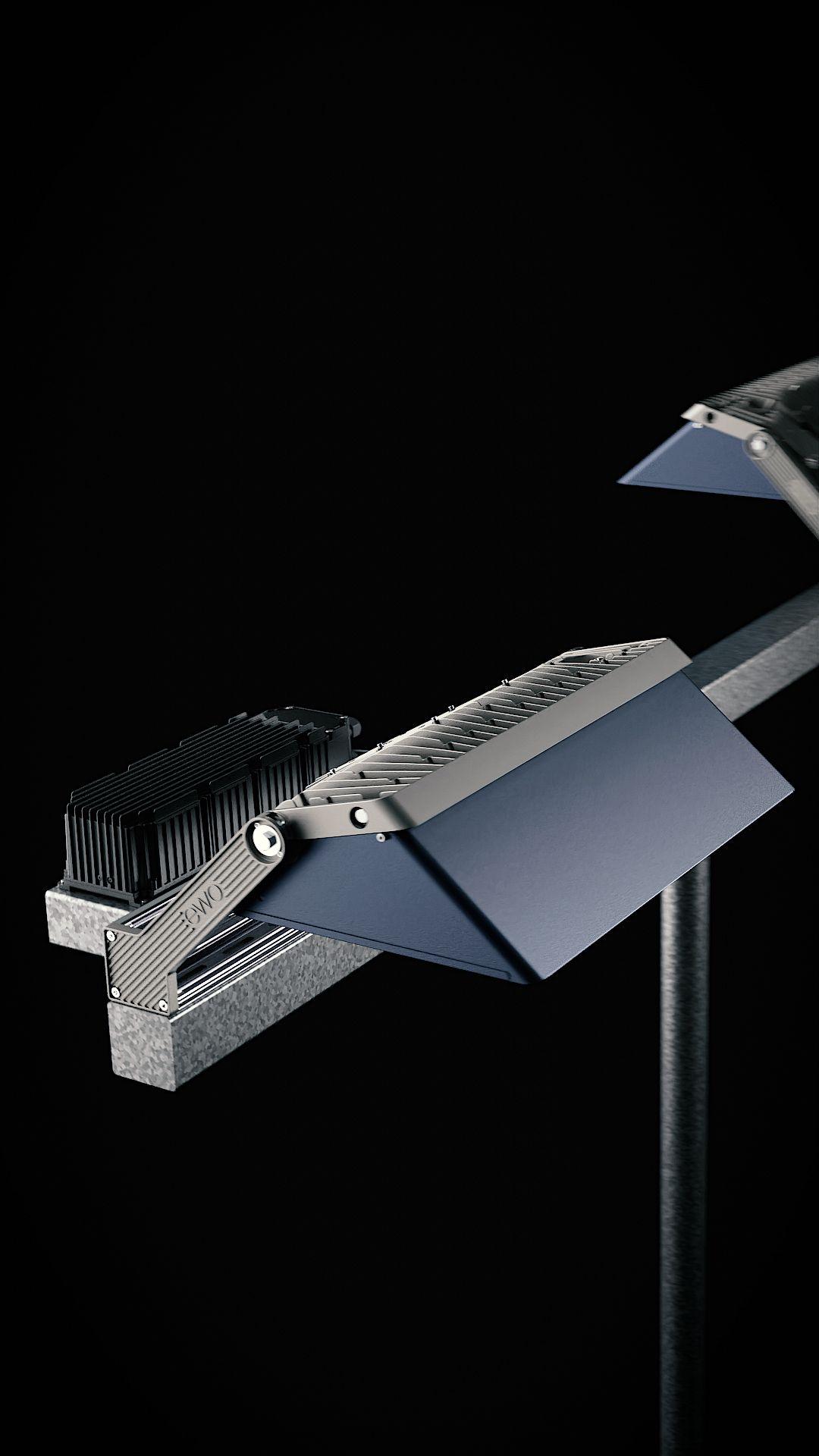

Football, tennis, swimming, field hockey and many more—RIVAL is suitable for every sport
Intelligence of Light
The RIVAL product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups.
Sportzone Rungg © Oskar Da Riz

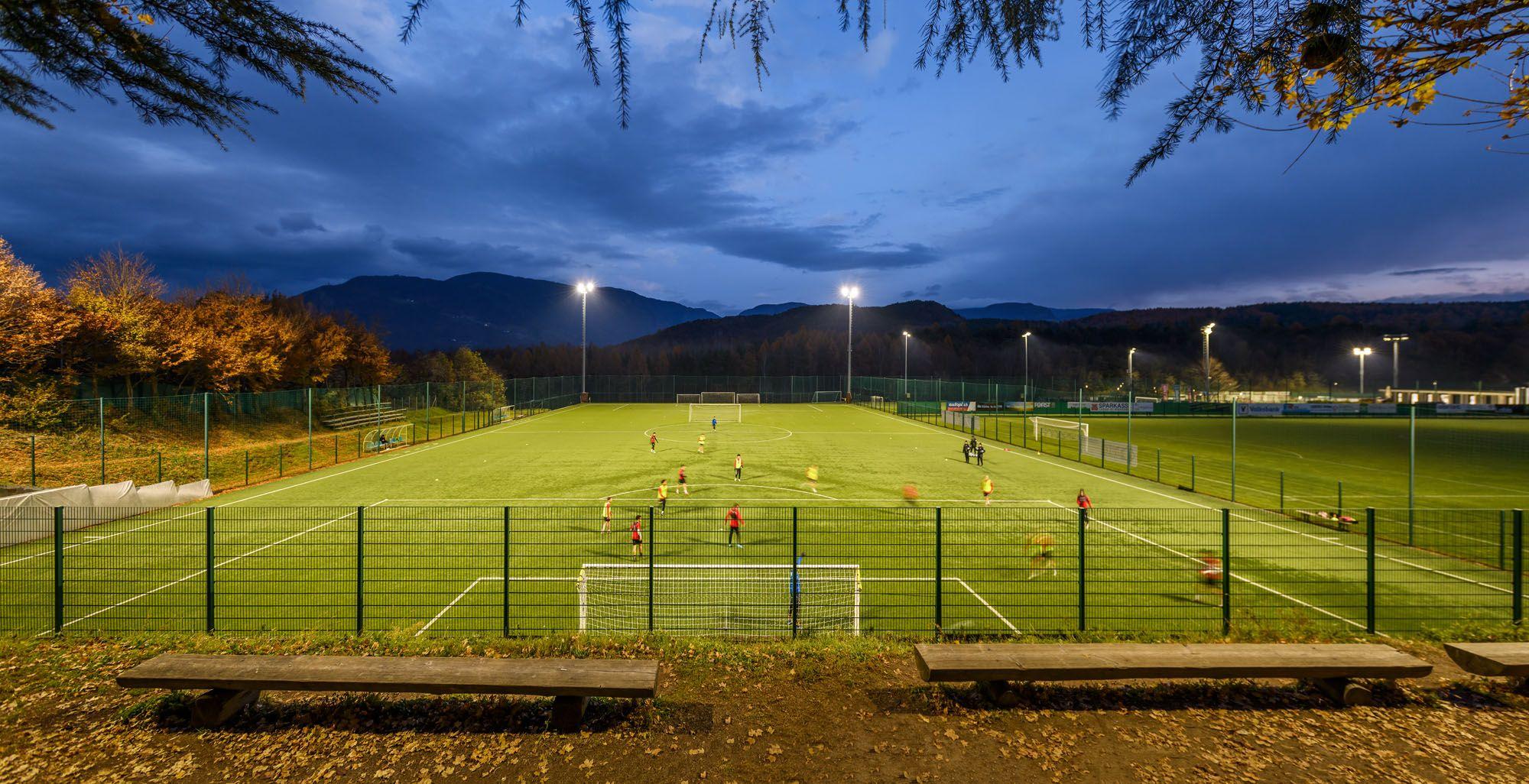

RIVAL was used in the Rungg sports zone in South Tyrol (ITA)
Sportzone Rungg © Oskar Da Riz

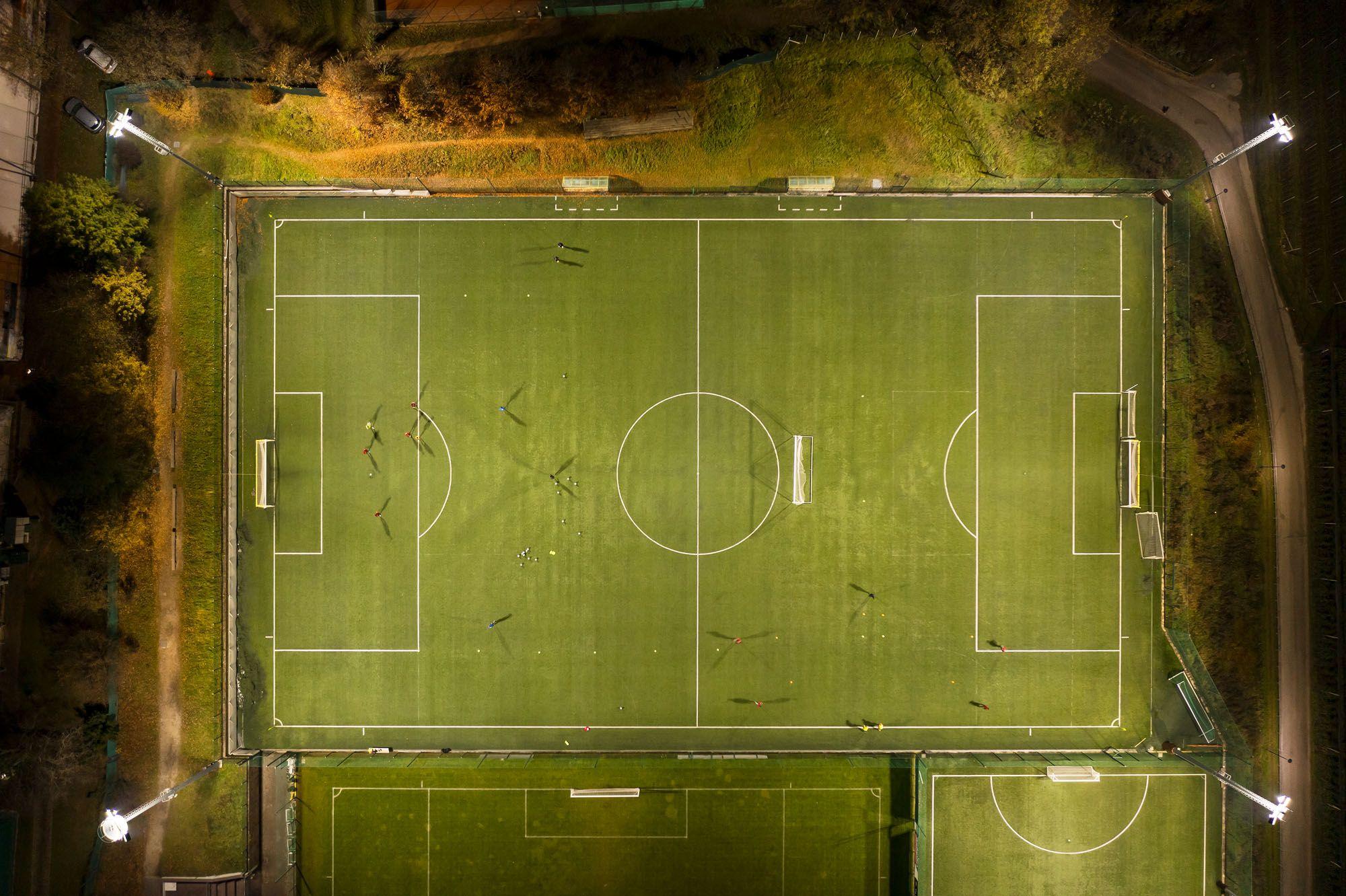

For this sports zone, the floodlights were equipped with DALI drivers for easy control

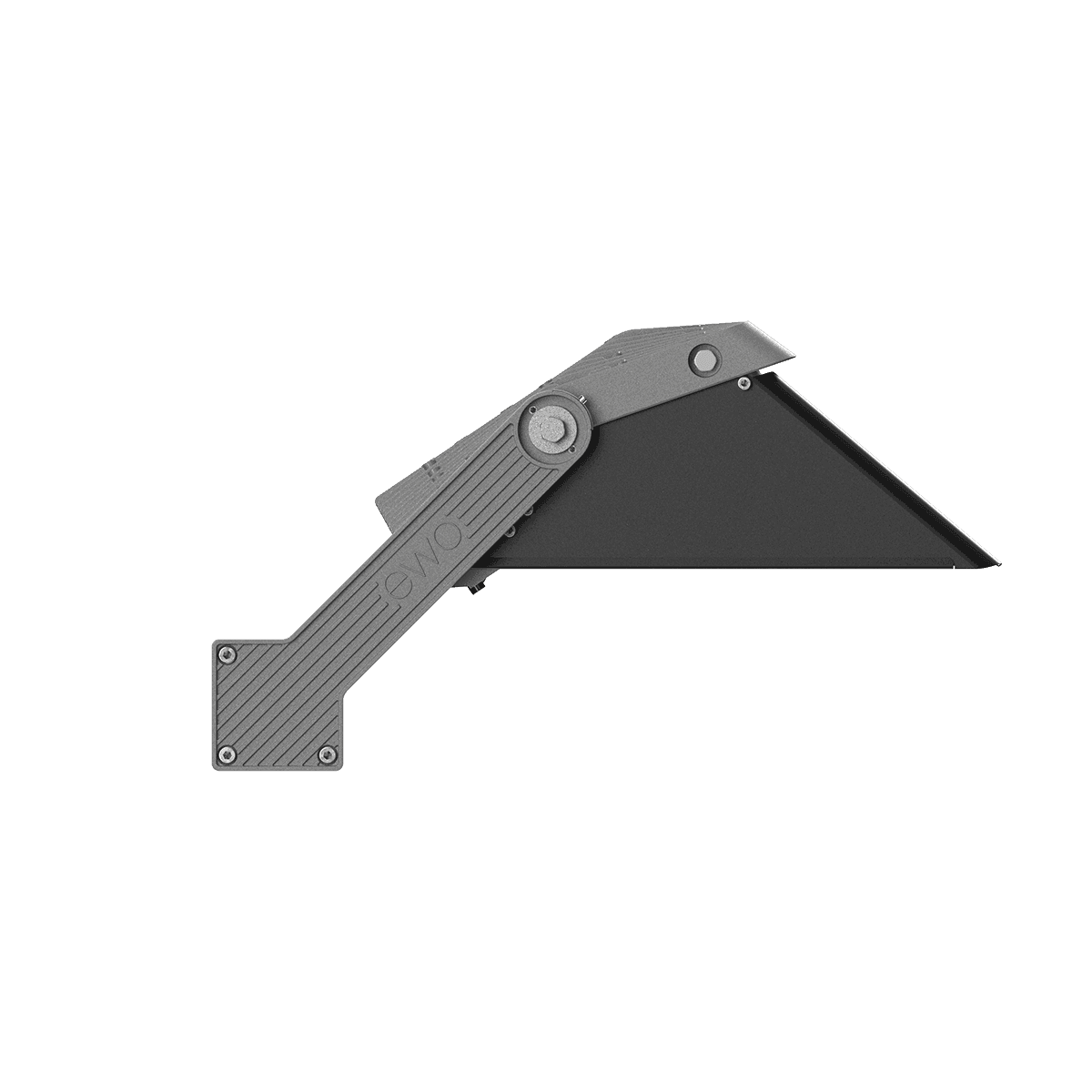

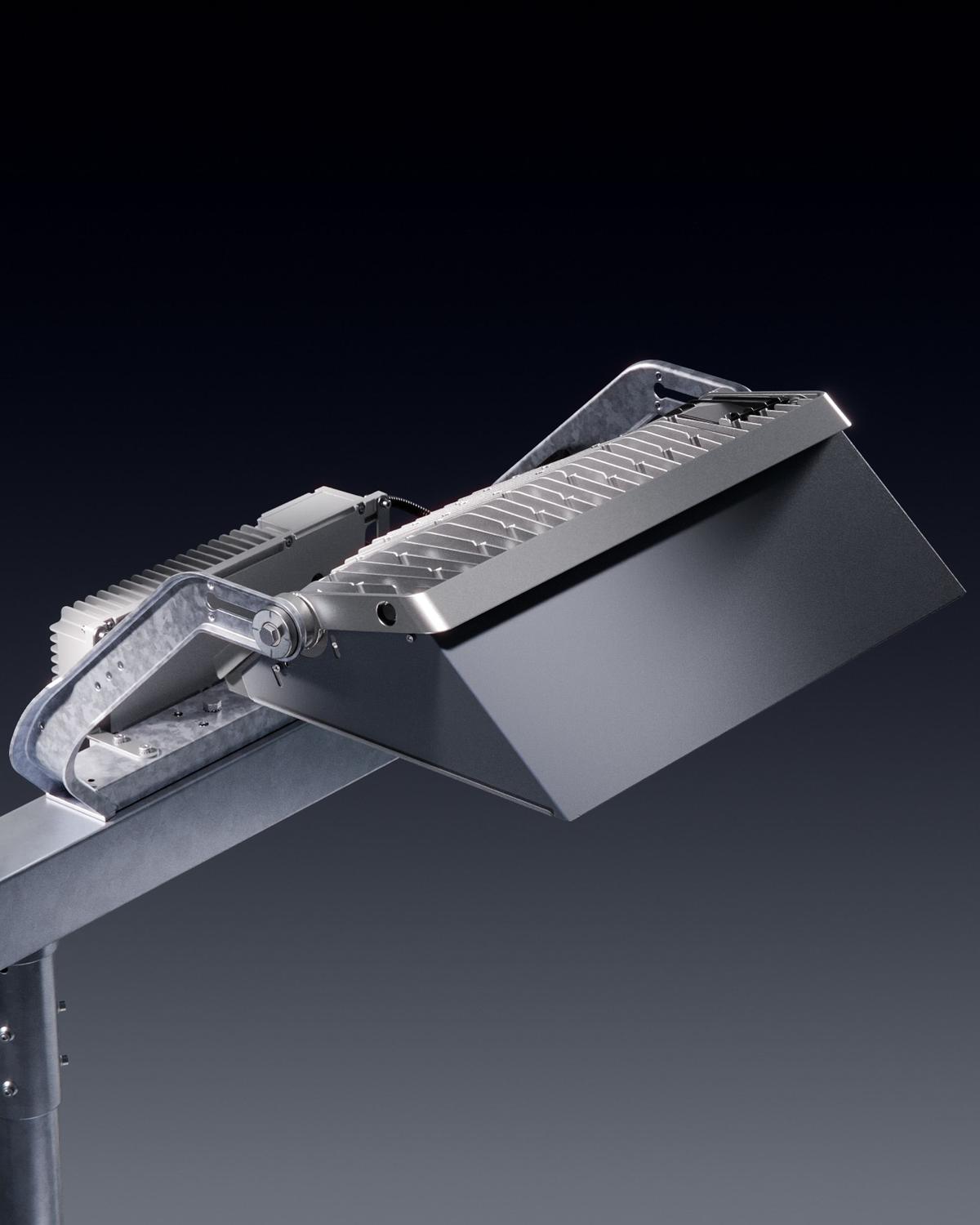

With RIVAL, ewo has recognized the need for lighter LED floodlights, improved lighting control and increased safety in sports facilities. Until now, the weight of floodlights has posed a challenge during installation and maintenance, as they are significantly heavier compared to conventional light sources. RIVAL solves this problem with its ultra-light construction and innovative design, which guarantees efficient heat dissipation thanks to heat-repellent fins.
© Align Office

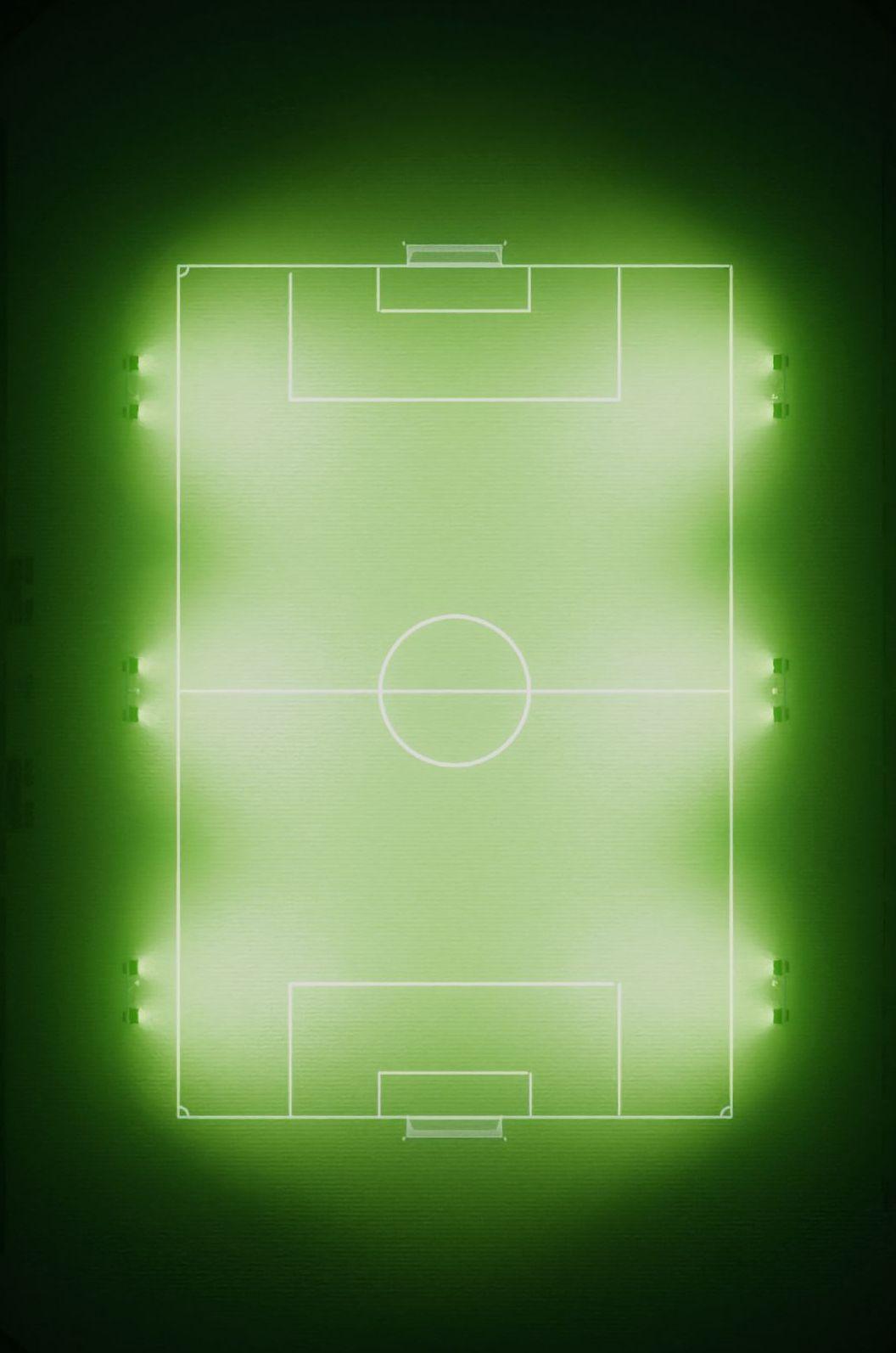

DarkSky Approved
RIVAL was awarded the "DarkSky Approved" label by DarkSky International in 2024 and, together with some variants of the R–System, is one of the first luminaires for large areas to receive this certification.

Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
RIVAL downloads
Would you like to find out more about RIVAL? Here you will find all product-specific documents, from images to data sheets.
