Product Family

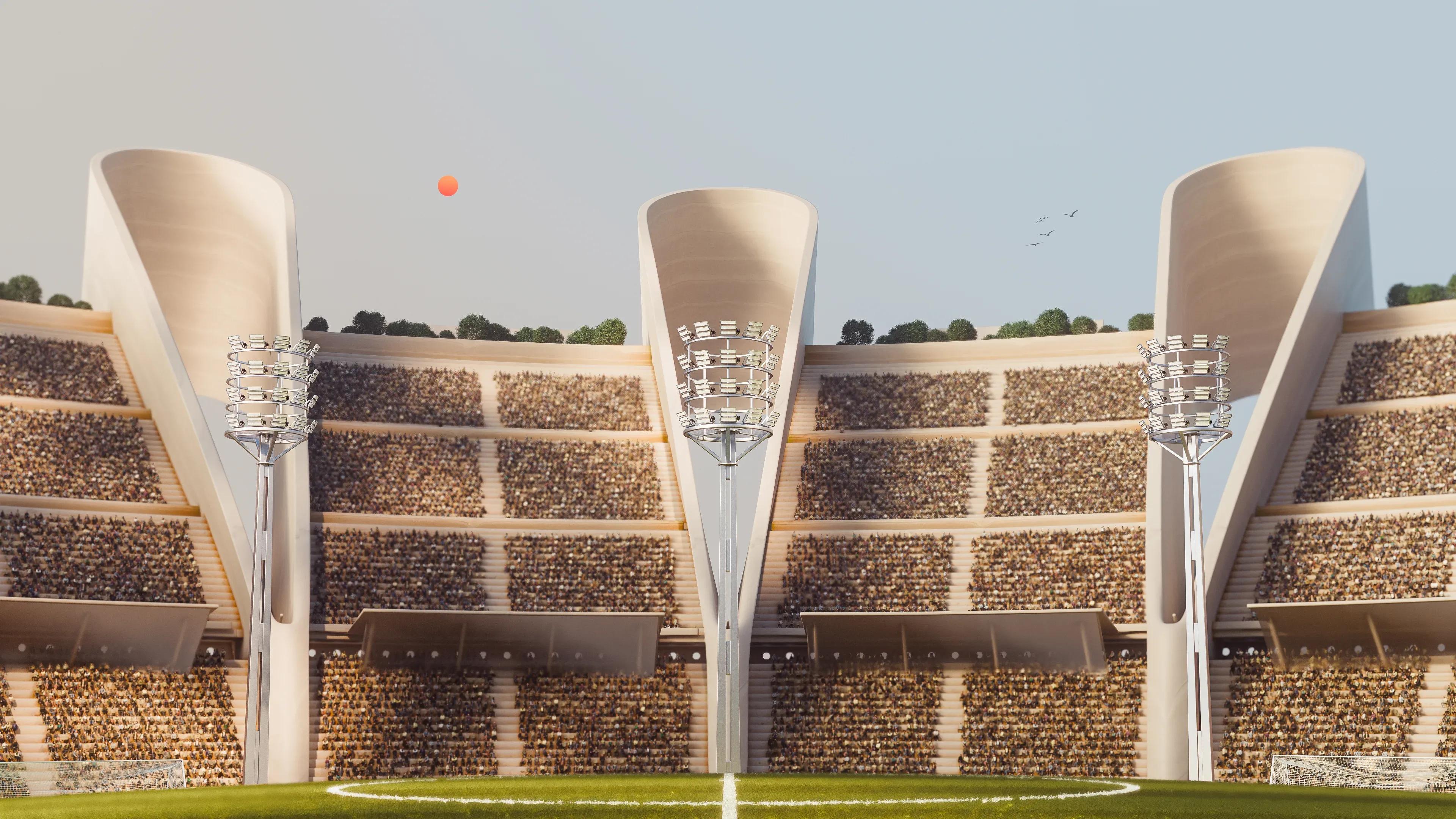

R–System Stadium is the LED floodlight family for professional arenas – for stadium lighting where match operation, broadcast, and show sequences are planned digitally.
R-System Stadium
“In stadium projects, the key is to bring product selection, lighting design, and verification together early in an efficient process.
Overview of sizes

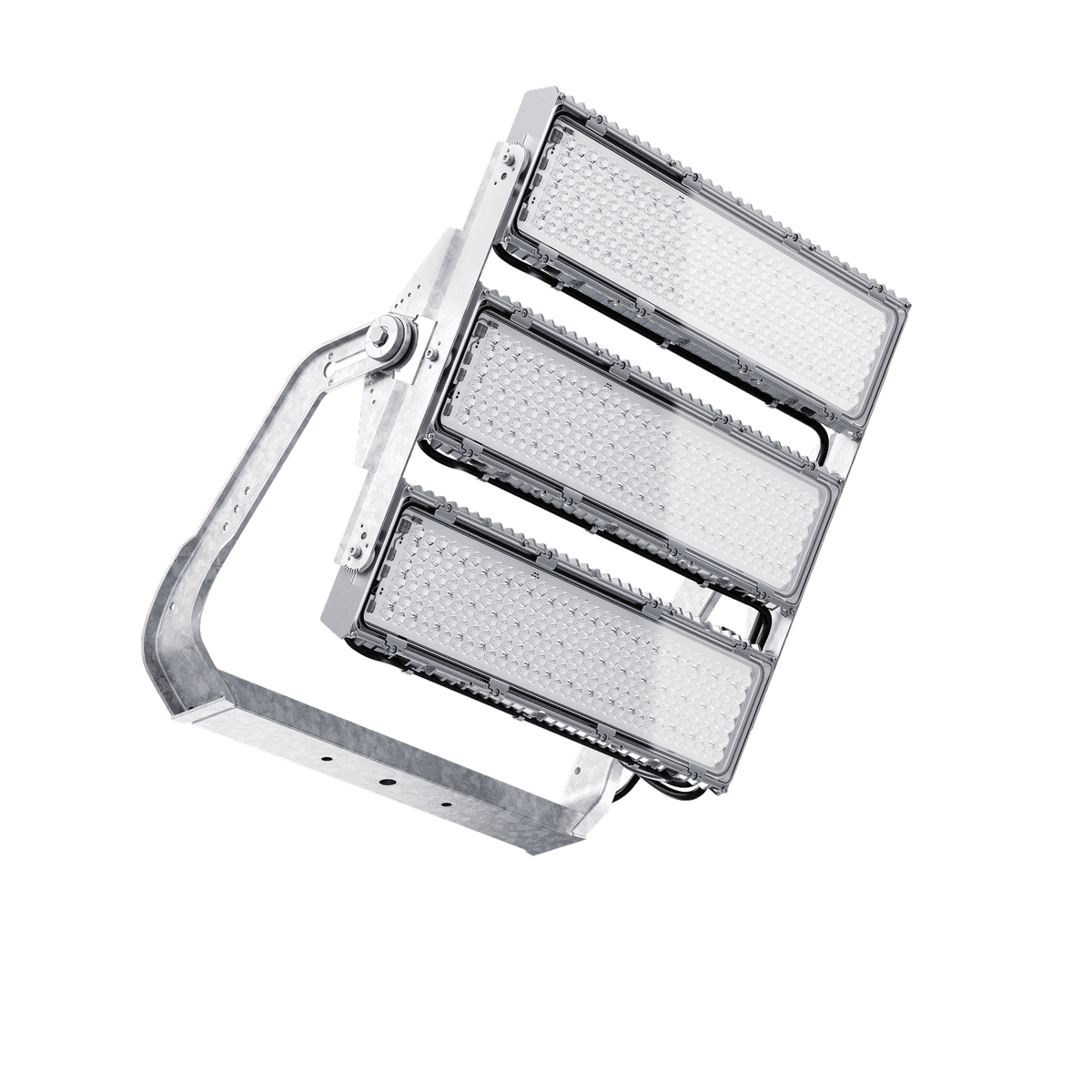

R3
3 light modules (480 LEDs, max. 285 klm), external control gear, compatible with A–Series lenses

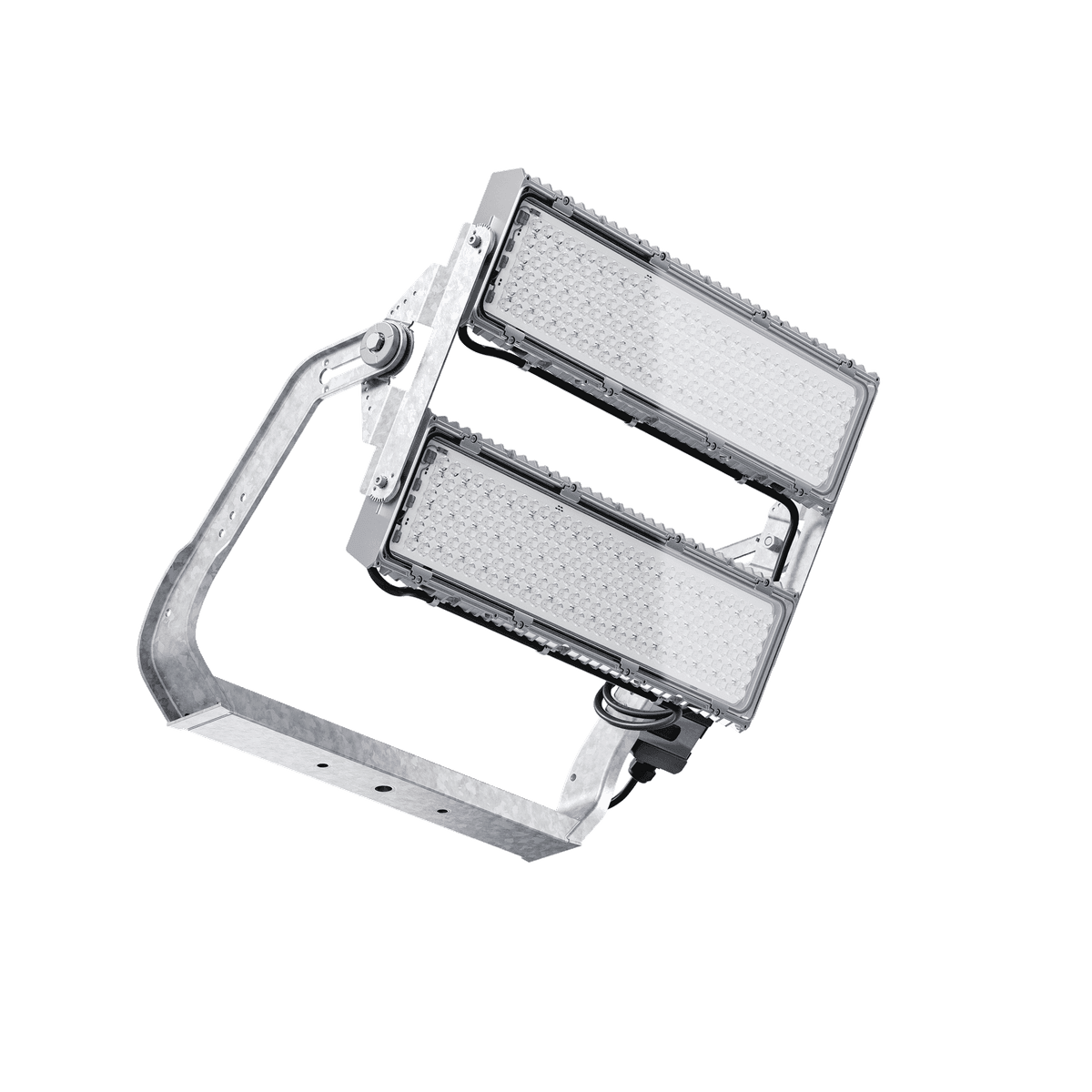

R2
2 light modules (320 LEDs, max. 190 klm), external control gear, compatible with A–Series lenses
This sets R–System Stadium apart
Automated planning iteration

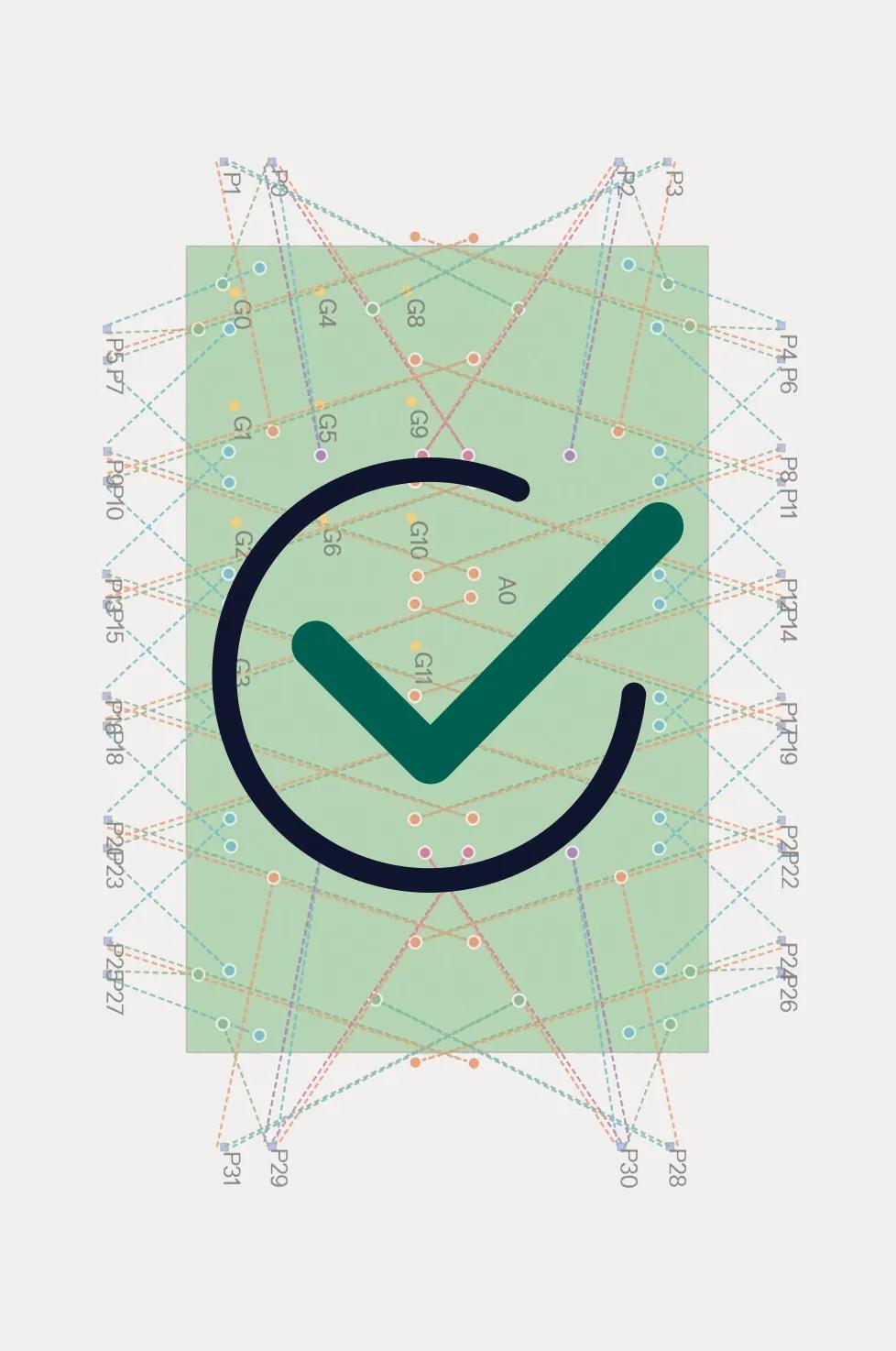

LightFinder, ewo’s automated planning tool, uses R–System Stadium as a modular luminaire platform. It iterates size, optic, luminous flux, position, and aiming – delivering robust variants faster.
Economically optimized solution
LightFinder optimizes the lighting with R–System Stadium by investment cost, lifecycle cost, or number of luminaires. This makes it clear early on which solution best aligns technical requirements with economic priorities.
In line with the architecture

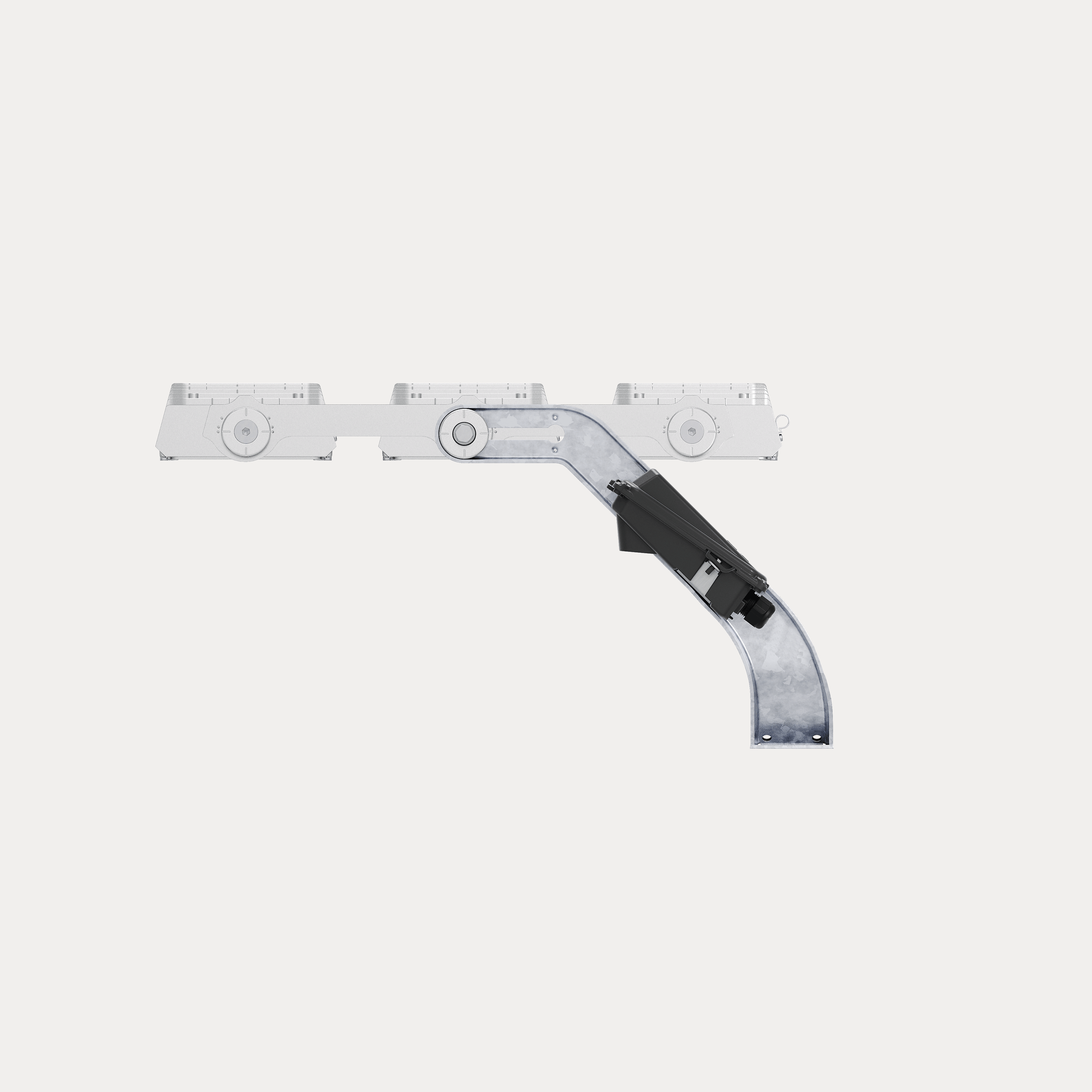

With two sizes, a wide range of light distributions, and individually aimable light modules, R–System Stadium provides the modularity needed for different stadiums, mounting positions, and lighting requirements.
Unforgettable stadium moments
Perfect light for players and spectators: with 5,700 K / CRI ≥ 90 and DMX control, R–System Stadium creates the technical basis for professional playing conditions and impressive show sequences – in the stadium and on screens worldwide.

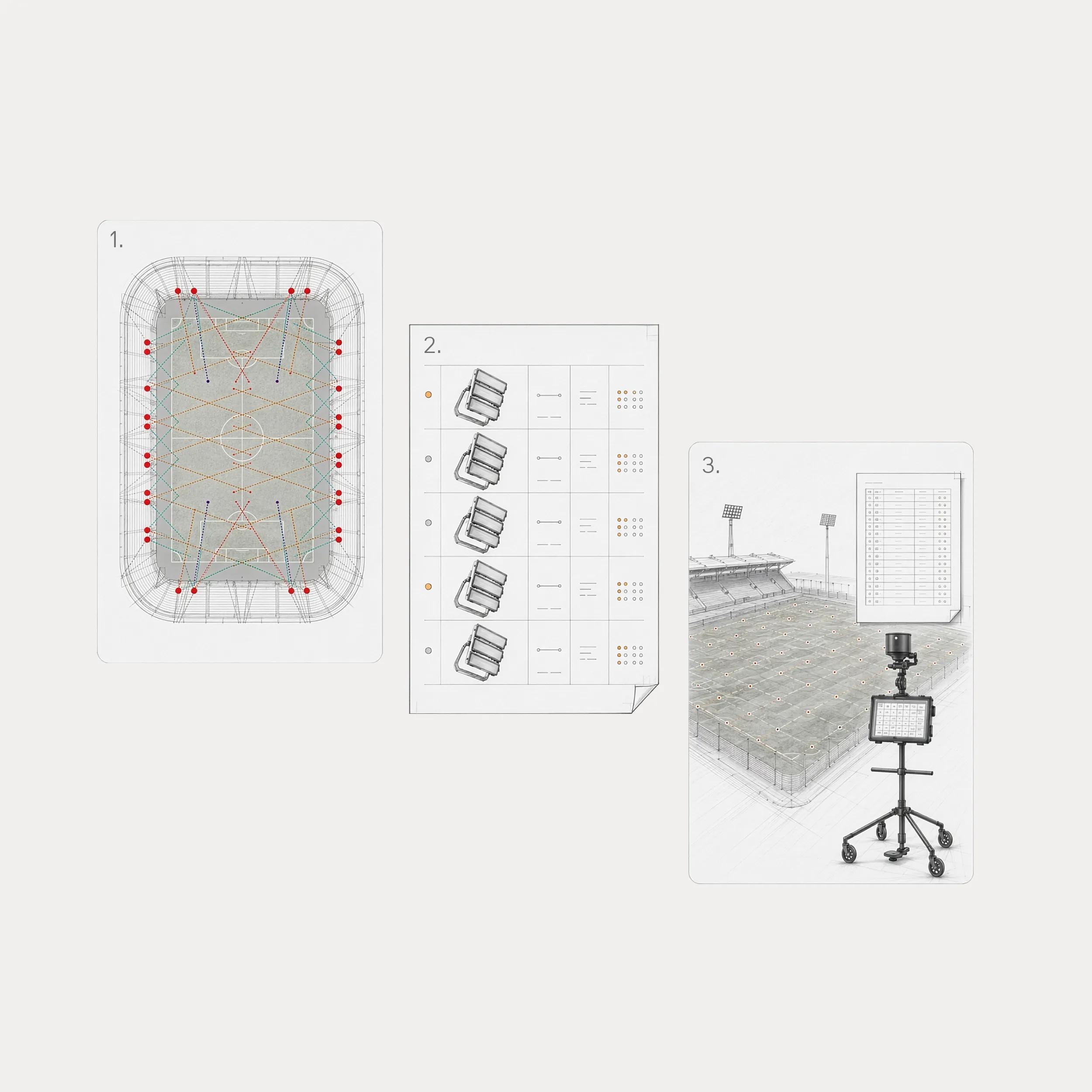

Stadium lighting as a digital process
From feasibility assessment to acceptance report.
R–System Stadium is the ewo floodlight for stadiums. LightFinder and LightLogger extend lighting design with R–System Stadium into a digital planning and verification process: LightFinder supports variant development, optimization and execution planning as a planning tool; LightLogger documents the completed installation after commissioning.
1. Preliminary planning and variant study
During feasibility assessment and quotation phase, LightFinder makes project scenarios comparable at an early stage: number of luminaires, connected load, product costs, luminous flux, optic selection and lighting compliance. Based on your specifications, planners reach a reliable basis for decision-making faster and reduce manual iteration effort.
2. Design and execution planning
Based on the selected variant, LightFinder generates concrete project documents: luminaire list, installation plan, and aiming plan. The position and aiming of the luminaires, as well as the aiming of each individual light module, are handed over to electrical planning, installation, and project partners in a structured way.
3. Installation, measurement, and acceptance
LightLogger supports verification of the executed installation. ewo’s mobile measurement system guides the operator through the measuring points, records and georeferences the values, automatically evaluates the measurement series, and generates a report for documentation and acceptance.
LightFinder iterates for you

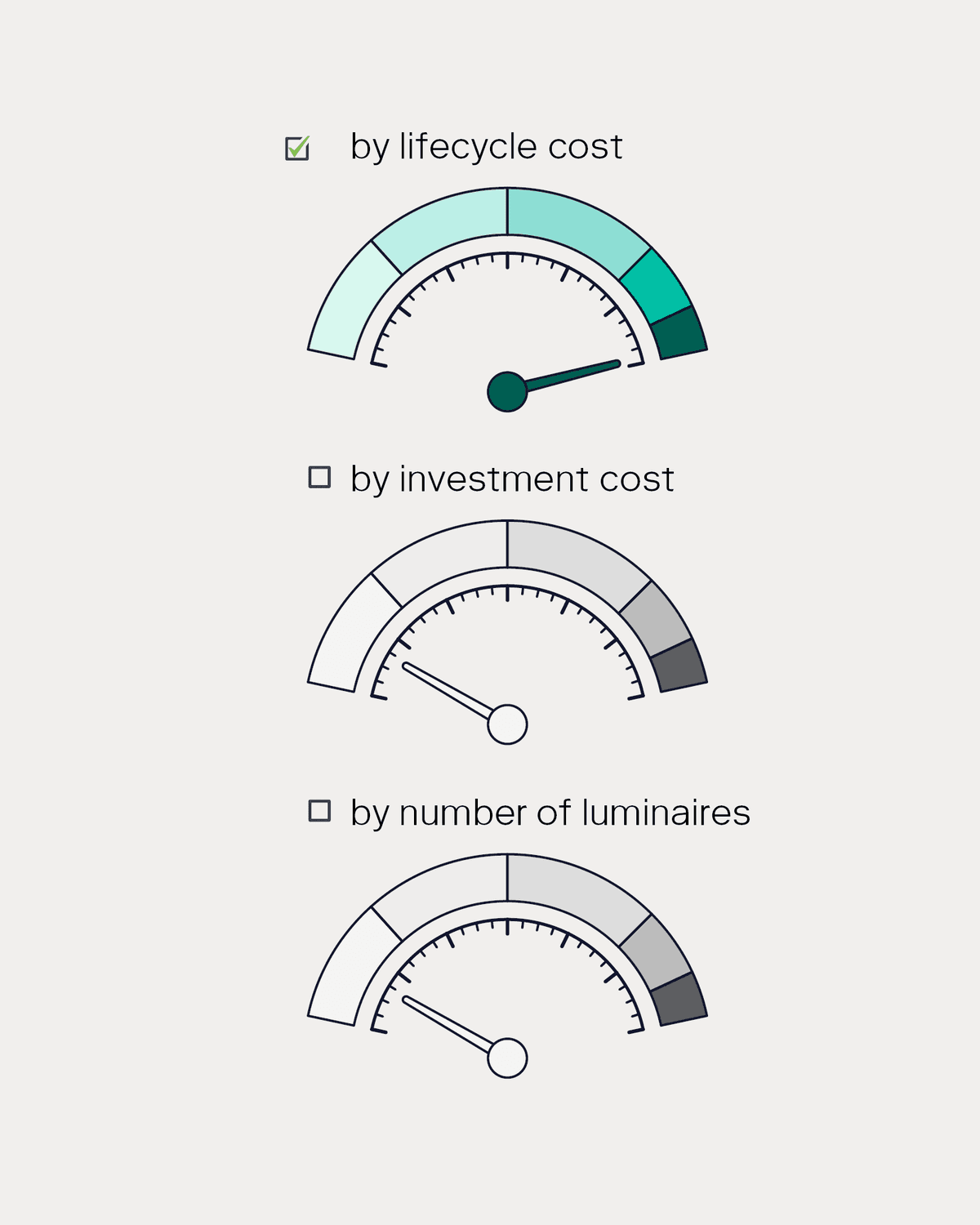

LightFinder optimizes stadium projects by investment cost, lifecycle cost, or number of luminaires. The tool varies size, optic, luminous flux, position, and aiming – and outputs a luminaire list, installation plan, and aiming plan.
Shape of light – Light for match, broadcast, and event
Lighting with R–System Stadium provides the basis for professional match operation, emotional stadium moments, and high-quality images worldwide. Precise optics, high color rendering, and suitable control interfaces support warm-up, match, team intro, and show sequences.
Body of light – Light as part of stadium architecture
Whether installed on floodlight masts or integrated into grandstand structures and roof constructions: R–System Stadium gives planners scope for different stadium architectures. Two sizes, many light distributions, individually aimable light modules, and separately positionable control gear support flexible light point placement.
Body of light – Proven R–System quality

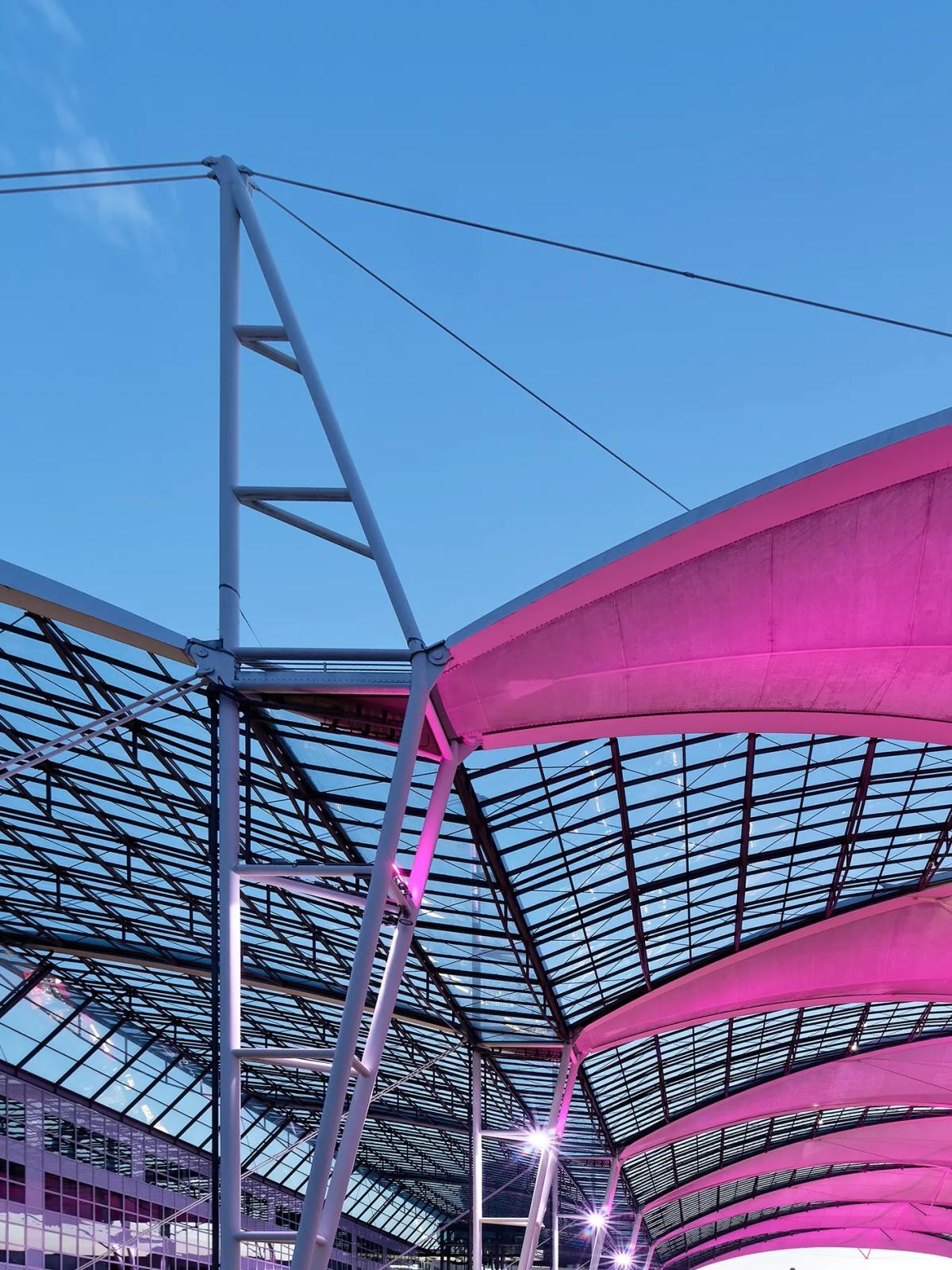

More than 700 realized R–System projects – including major international airport hubs – inform the continuous development of the product family. This experience is built into R–System Stadium: robust construction (IK08, IP66), serviceable modules, and durable material choices, such as an aluminum alloy with a copper content below 0.1%.
Realized with ewo
Queensland State Hockey Centre, Brisbane (AUS)
ewo was commissioned to equip the Queensland State Hockey Centres multi-purpose stadium with lighting that had to meet various precise requirements.
Nordhessen Arena ice rink, Kassel (DEU)
As part of a renovation of the ice rink in Kassel, ewo equipped the arena with high-performance floodlights that meet the requirements in terms of design and television broadcasting.
Solander Oval, Sydney (AUS)
ewo equipped the Solander Oval sports facility in a suburb of Sydney with efficient lighting using R–System floodlights, completely free of stray light and glare.
Nudgee Recreation Reserve, Brisbane (AUS)
