Product Family

Retro charm, state-of-the-art technology and sustainability standards: SM is a lantern-shaped luminaire that is ideal for street, path and area lighting, creating a vintage atmosphere with high-precision lenses.

SM

“Classic luminaire design meets state-of-the-art technology—the result is a luminaire that exudes retro charm and yet meets the highest sustainability and efficiency standards. This makes SM excellent, but not only, for environments with a vintage character.

What sets SM apart

Historic charm with performance

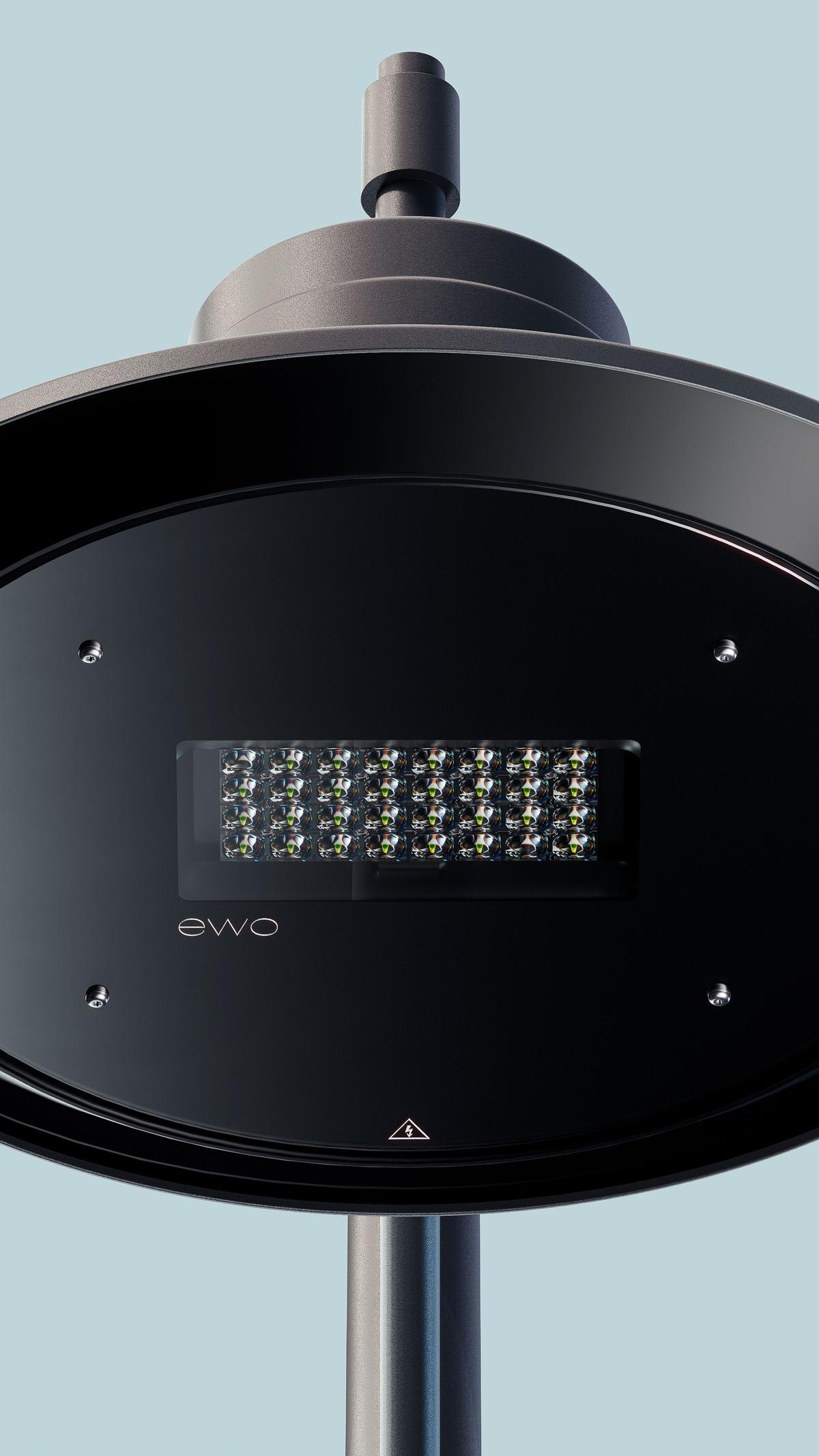

SM is suitable for projects where it is important to maintain a historic appearance without compromising the lighting performance. The product family can accommodate up to 4 LED modules, which can be combined and rotated.

Flexible Shape of Light

SM offers a wide range of luminous fluxes and light distributions, with the option of adding factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (anti-glare protection).

Solid construction

Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).

Technical data

Color temperature: cool white (5,700 K) / neutral white (4,000 K) / warm white (3,000 K)

Housing accommodates up to 6 LED lighting units (3 LED PCB)

Current feed: 300 mA–600 mA, depending on ambient temperature

Electronic operating device with DALI interface or 1–10 V or stand-alone programming

LED lighting units each adjustable ±5°

Different pattern characteristics for street, walkway, and large area lighting

LS33, LS33 satiné, LS34, LS34 satiné, LP33, LP33 satiné

Lens made from PMMA, with aluminum support plate

2 model variants: SM620/SM675

Aluminum housing, single-pane safety glass (ESG) cover & stainless steel bracket

Hot-dip galvanized steel pole, cable insertion opening, junction box and service door

Finish: polyester powder coating, anthracite (DB 703), other colors upon request

Body of Light

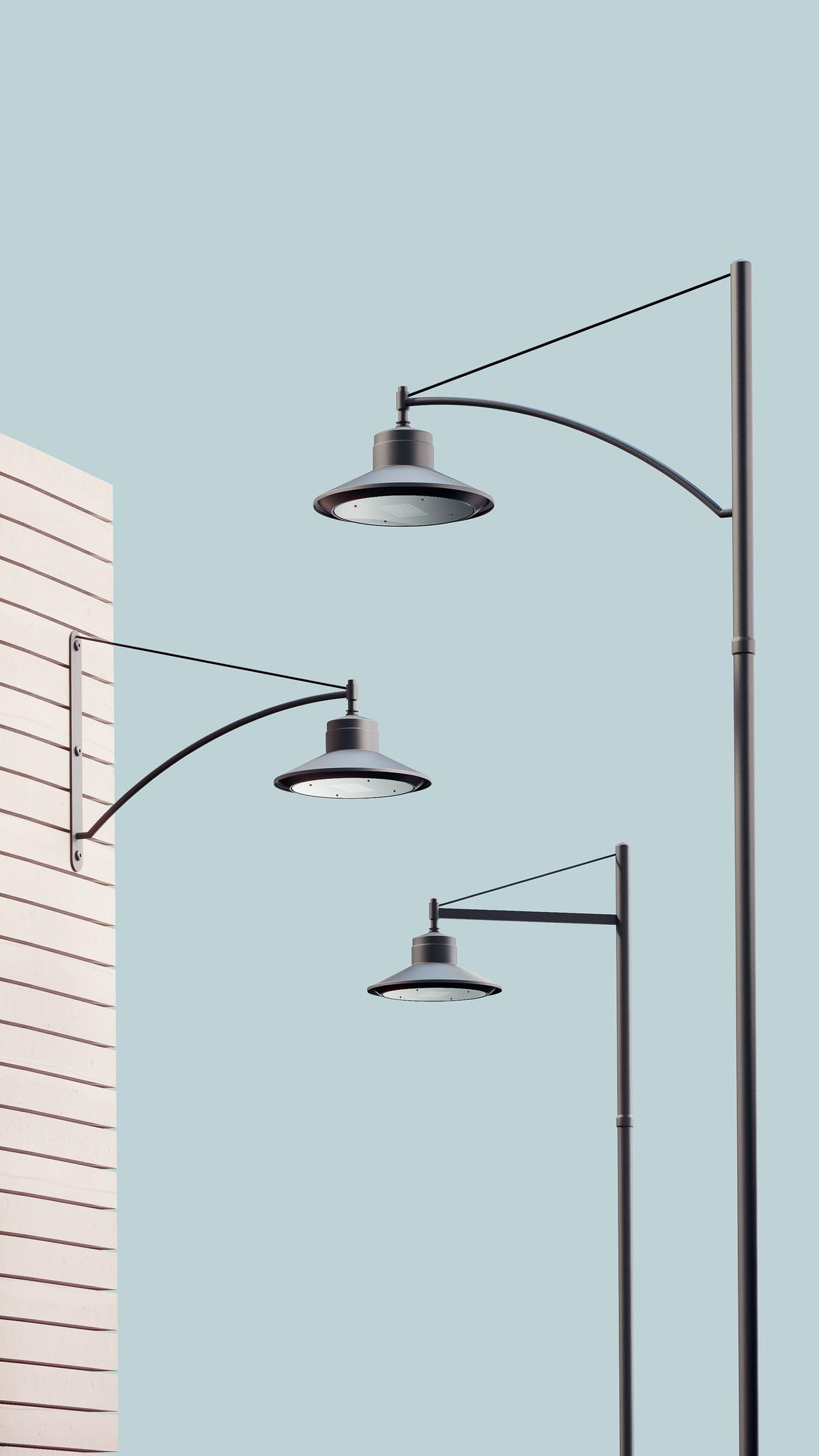

Pole and wall–mounted luminaires

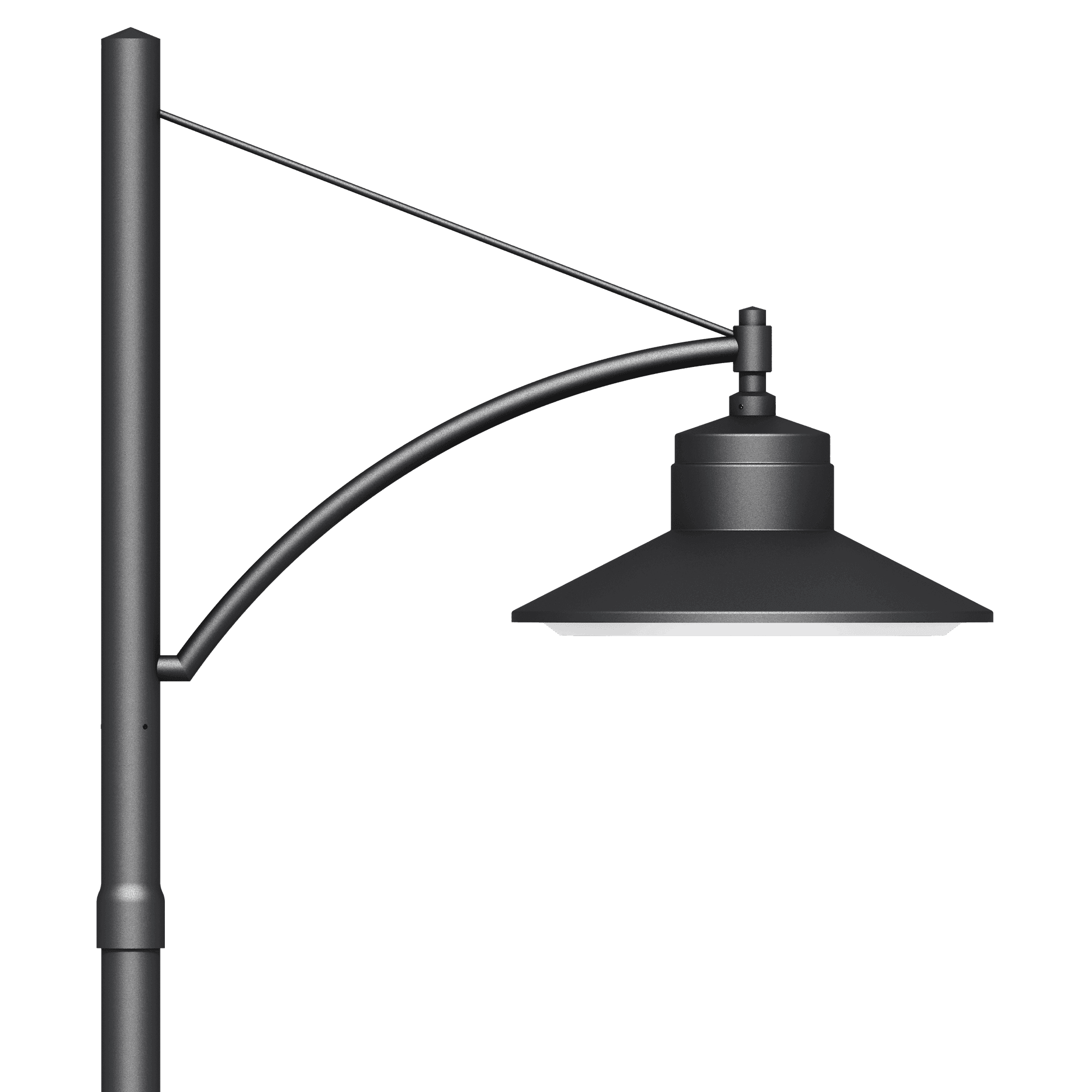

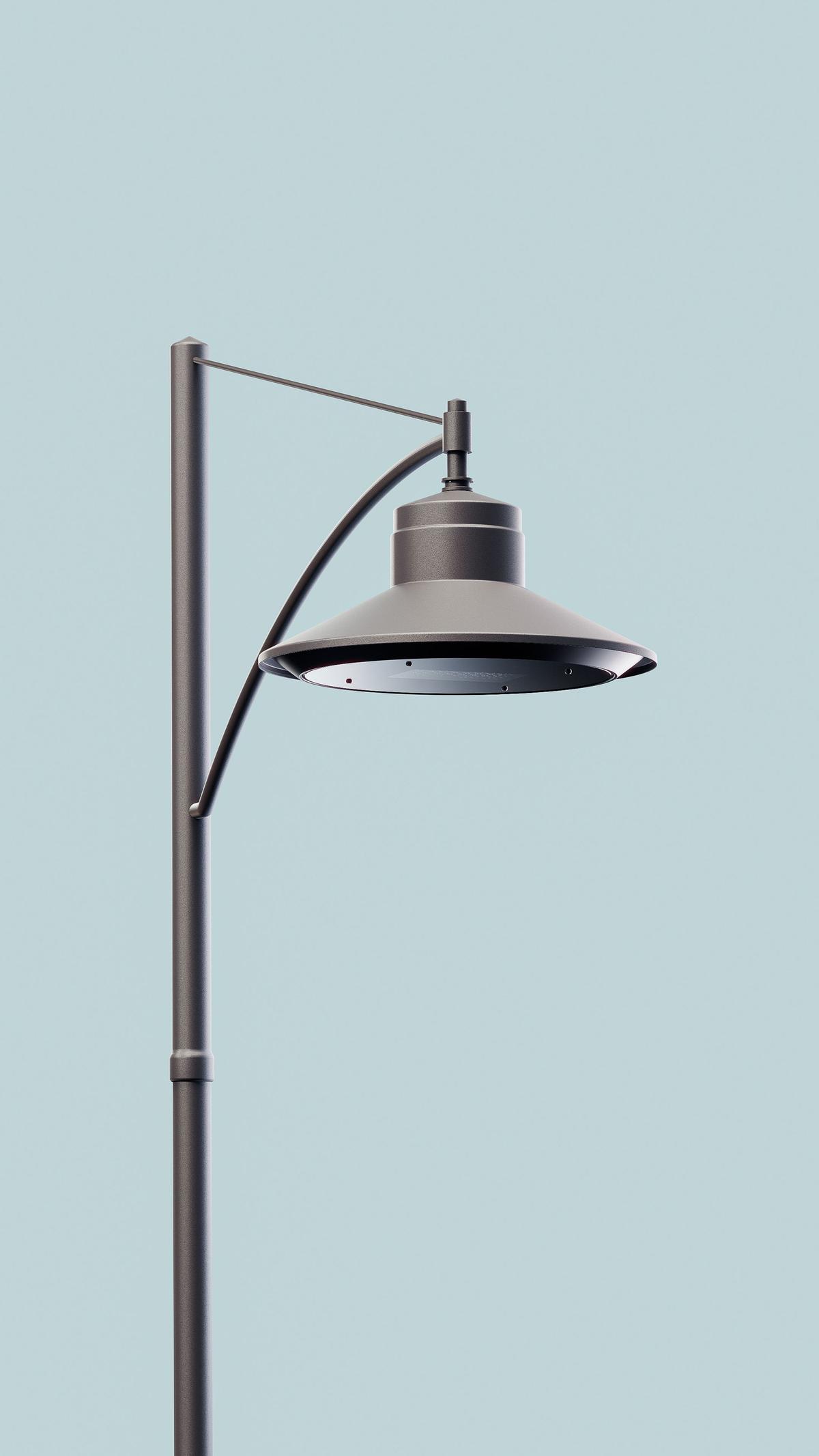

Pole SM

Pole
Pole–mounted
Round
Powder coated
Monochrome
General illumination
Urban life

Pole and wall–mounted luminaires

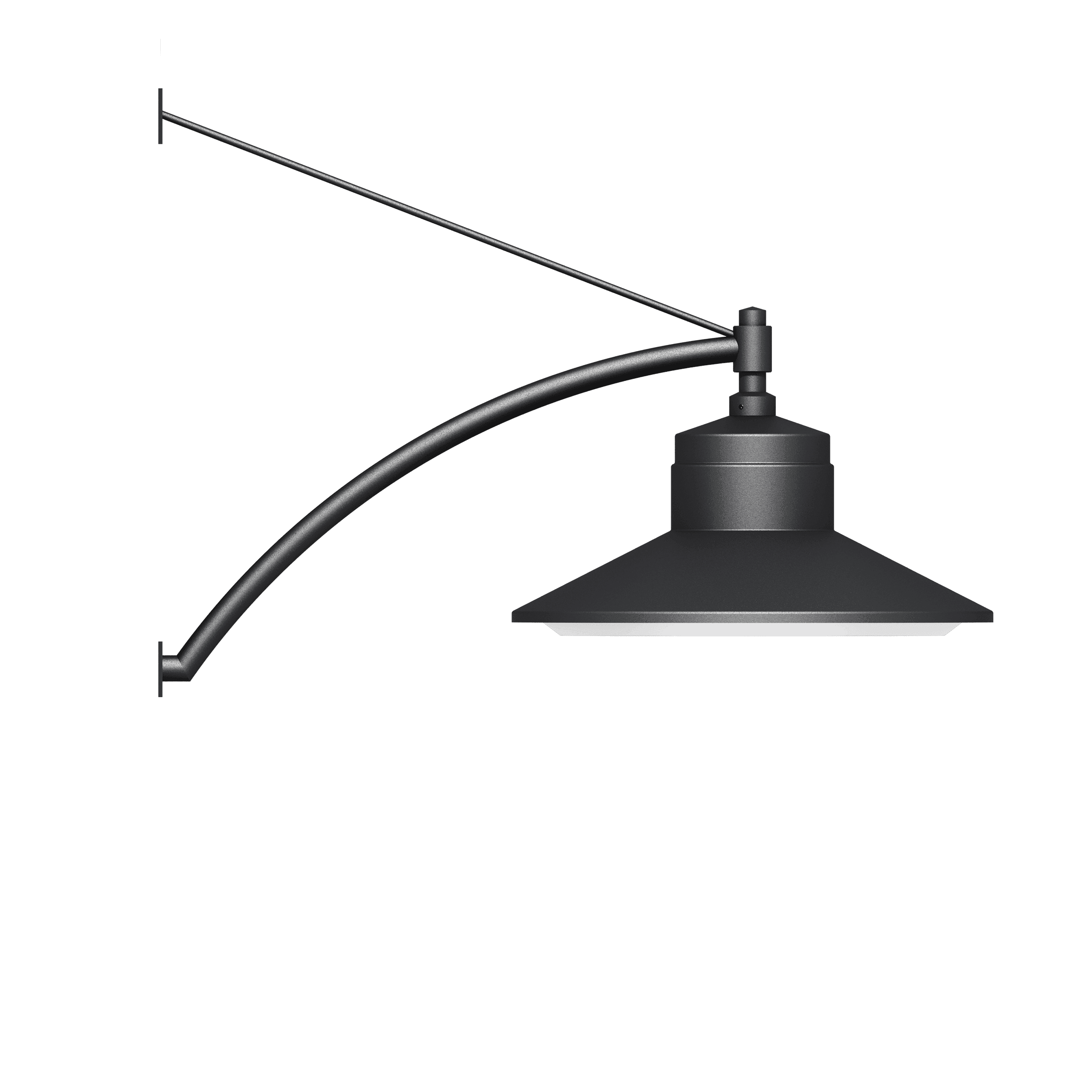

Wall SM

Wall
Surface–mounted
Round
Powder coated
Monochrome
General illumination
Urban life

Shape of Light

The SM product family can accommodate up to 4 LED lighting units and is compatible with a wide range of luminous fluxes and light distributions—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. The light can also be additionally adapted to any requirements using systems such as ewoLightTile and ewoLightLayers.

Intelligence of Light

The SM product family is available on request with DALI, 1-10 V or standalone programming options and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.
