Product Family
The ZA product family is suitable for architectural or art situations as well as public spaces—it enhances urban squares and parks thanks to its discreet, rounded design and elegant light.
ZA

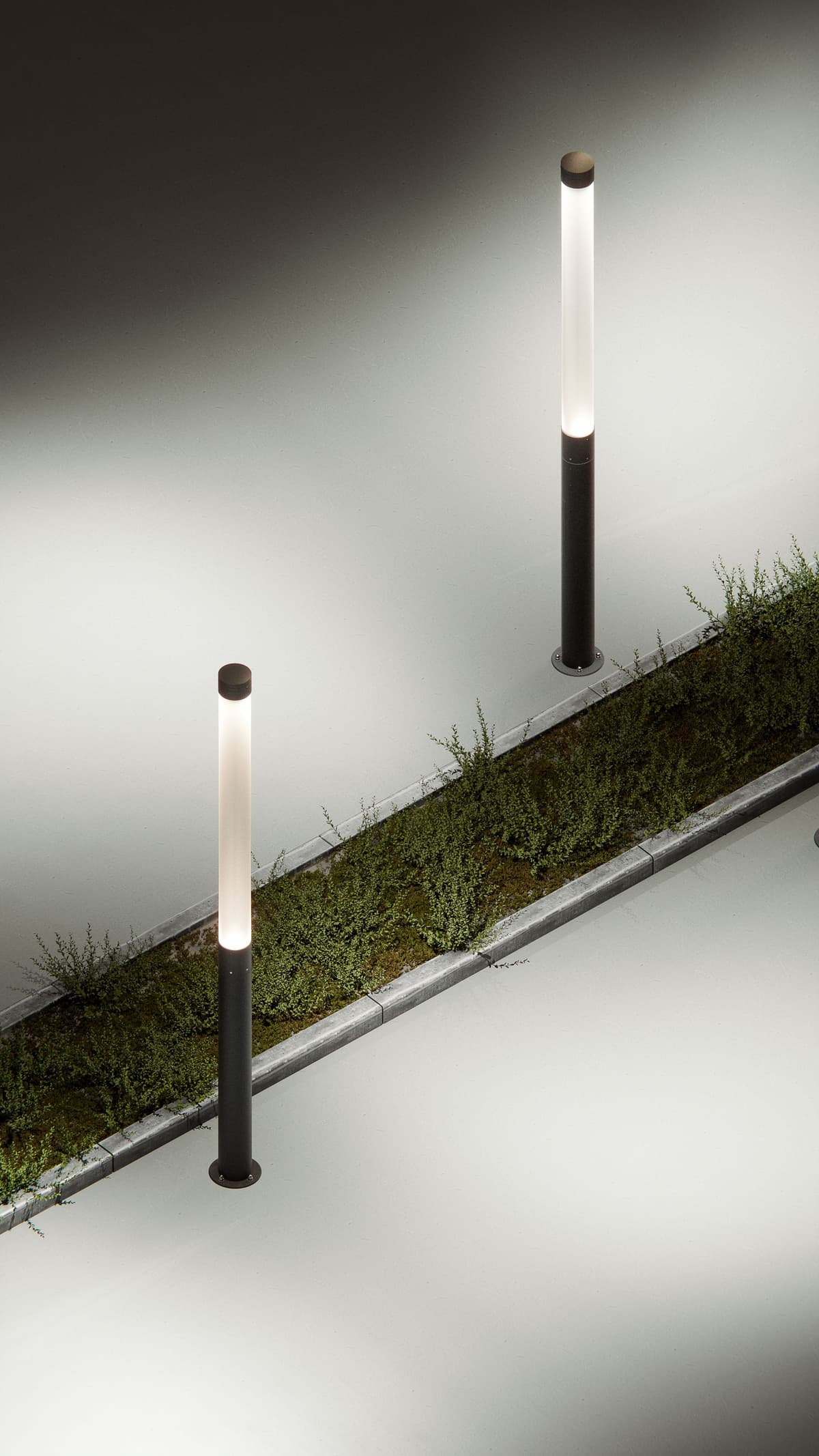

“High-quality and minimalist—the ZA product family is suitable in its variants for squares and parks as well as for lighting streets and sidewalks, where it contributes to greater safety and a sense of well-being.
What sets ZA apart
LED modules for more flexibility

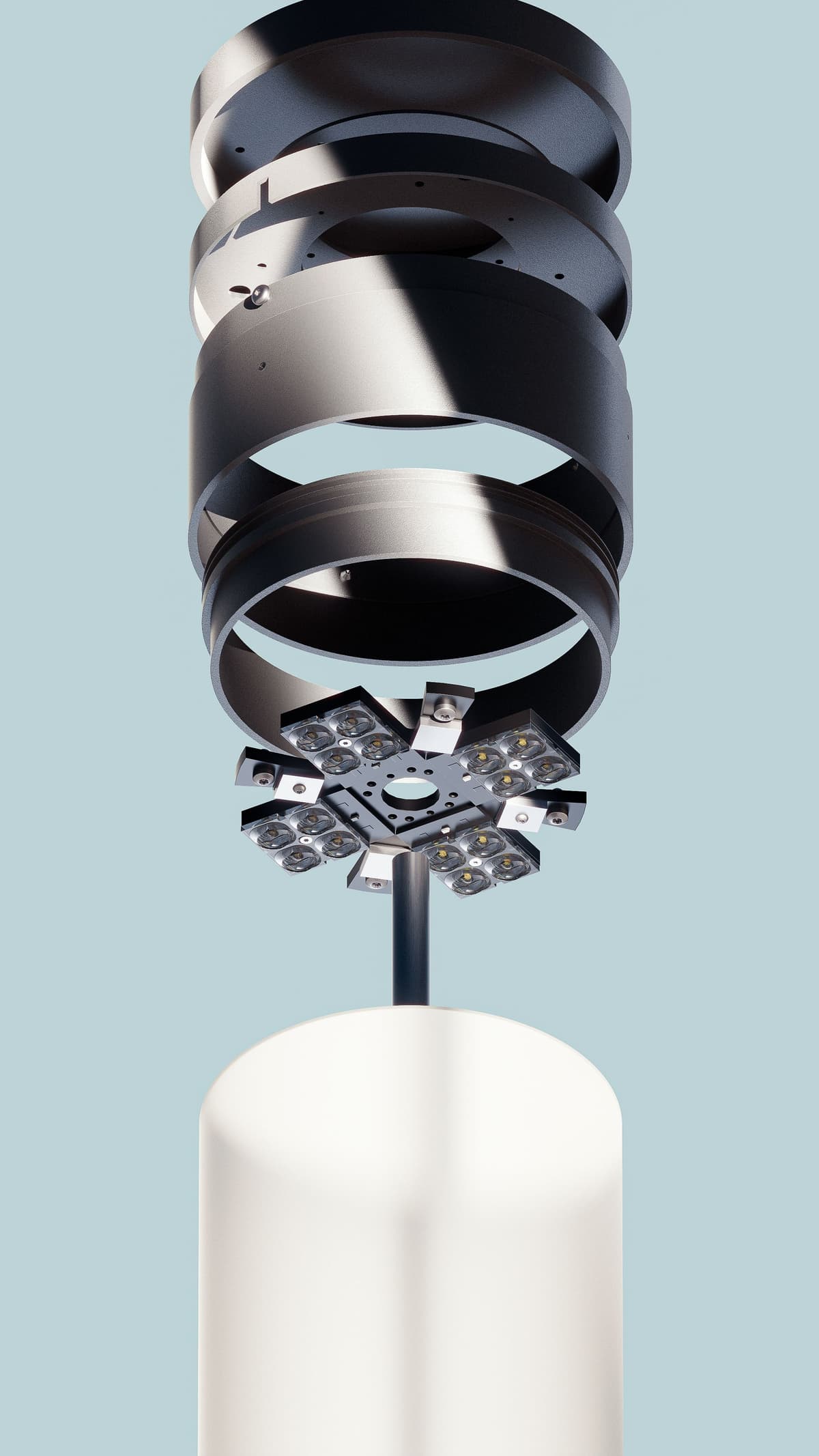

The luminaire has 4 LED modules with 4 lenses each, which can be aligned in 90° rotational steps to create different light distributions. This makes ZA ideal for a wide range of applications.
Flexible Shape of Light
The LED modules can be positioned at 0°, 90°, 180° and 270° for a rotosymmetrical light distribution or, for a more street-like distribution, they can all be aligned in the same direction.

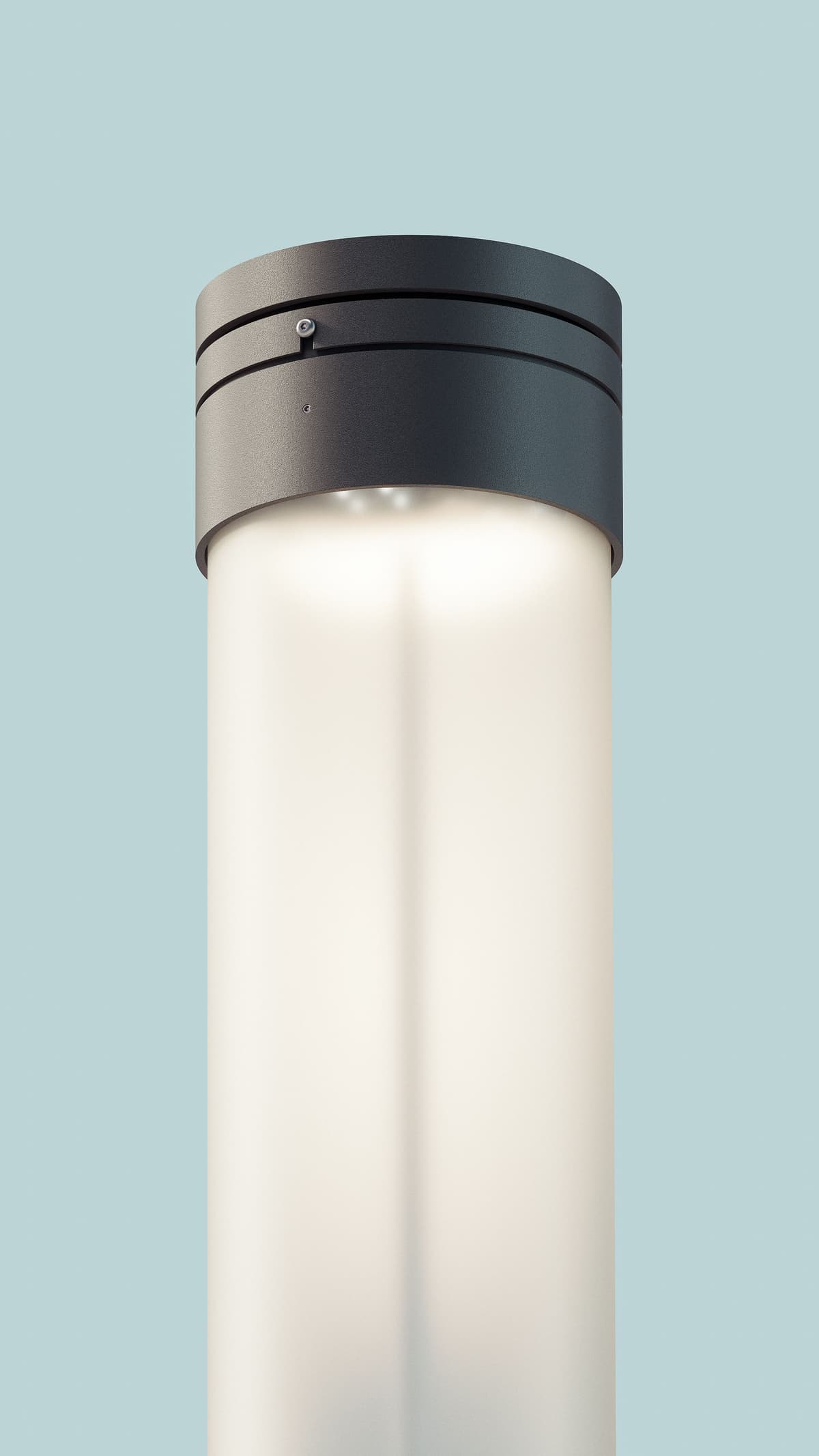

Solid construction
Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).
Technical data
- Housing accommodates up to 4 LED lighting units (LED Board: 4 LED)
- AP07, AS07 (also available in satiné version) Various light distributions (symmetric or asymmetric) for area, street or walkway lighting
- Current feed: 200 mA–700 mA, depending on ambient temperature
- Max. luminous flux [lm] 3,700
- Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
- Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70)
- CRI ≥ 80, other color rendering indexes available upon request
Body of Light
Light columns

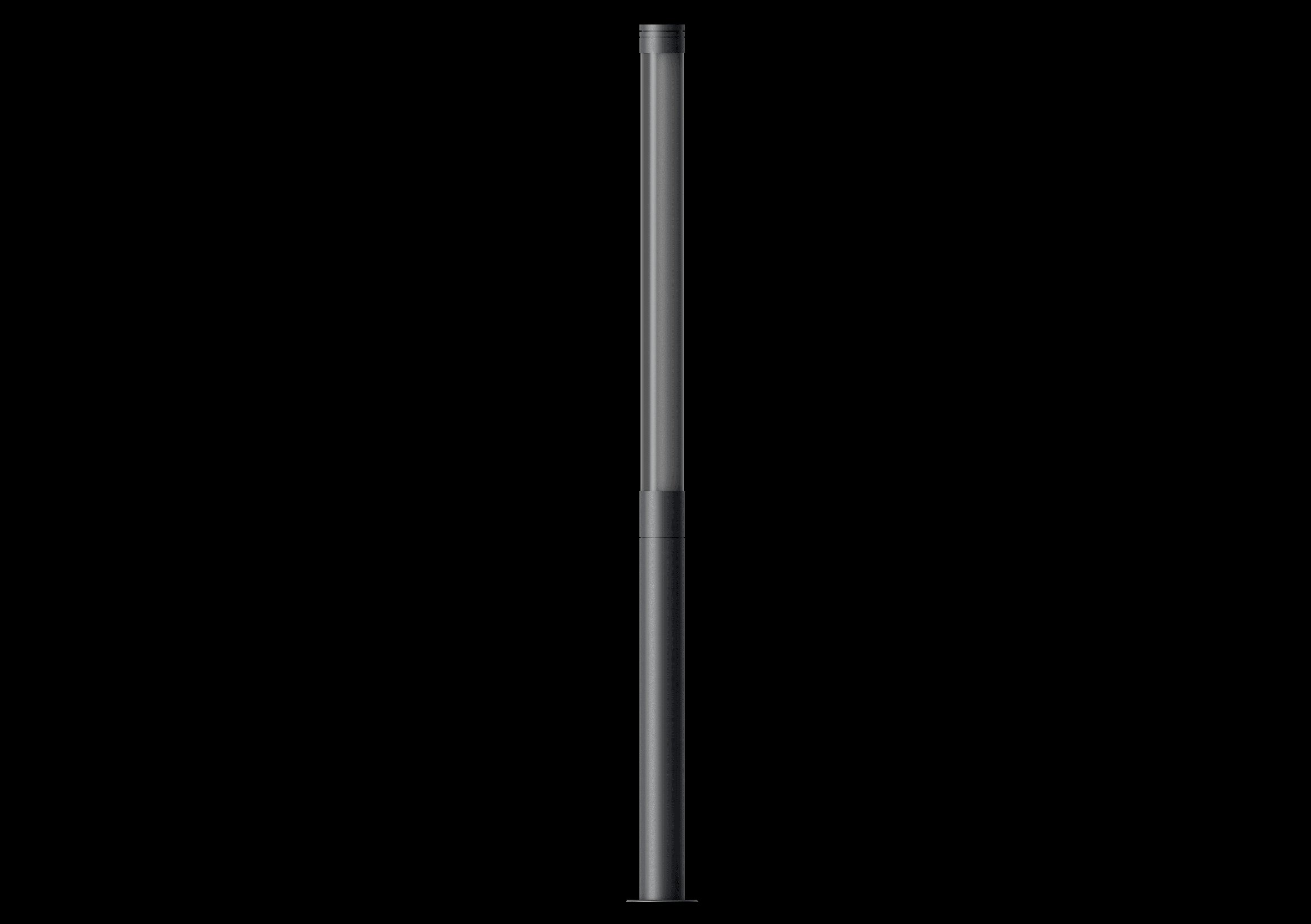

Column ZA
- Pole
- Surface–mounted
- Round
- Powder coated
- Monochrome
- General illumination
- Architecture and the arts
Shape of Light
Thanks to our modular system, the ZA product family is compatible with a wide range of light distributions—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, the light can be further adapted to any requirements using systems such as ewoLightTile and ewoLightLayers or Color Mixing.
Intelligence of Light
The ZA product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.
Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
ZA downloads
Would you like to find out more about ZA? Here you will find all product-specific documents, from images to data sheets.
