RIVAL – ready to compete

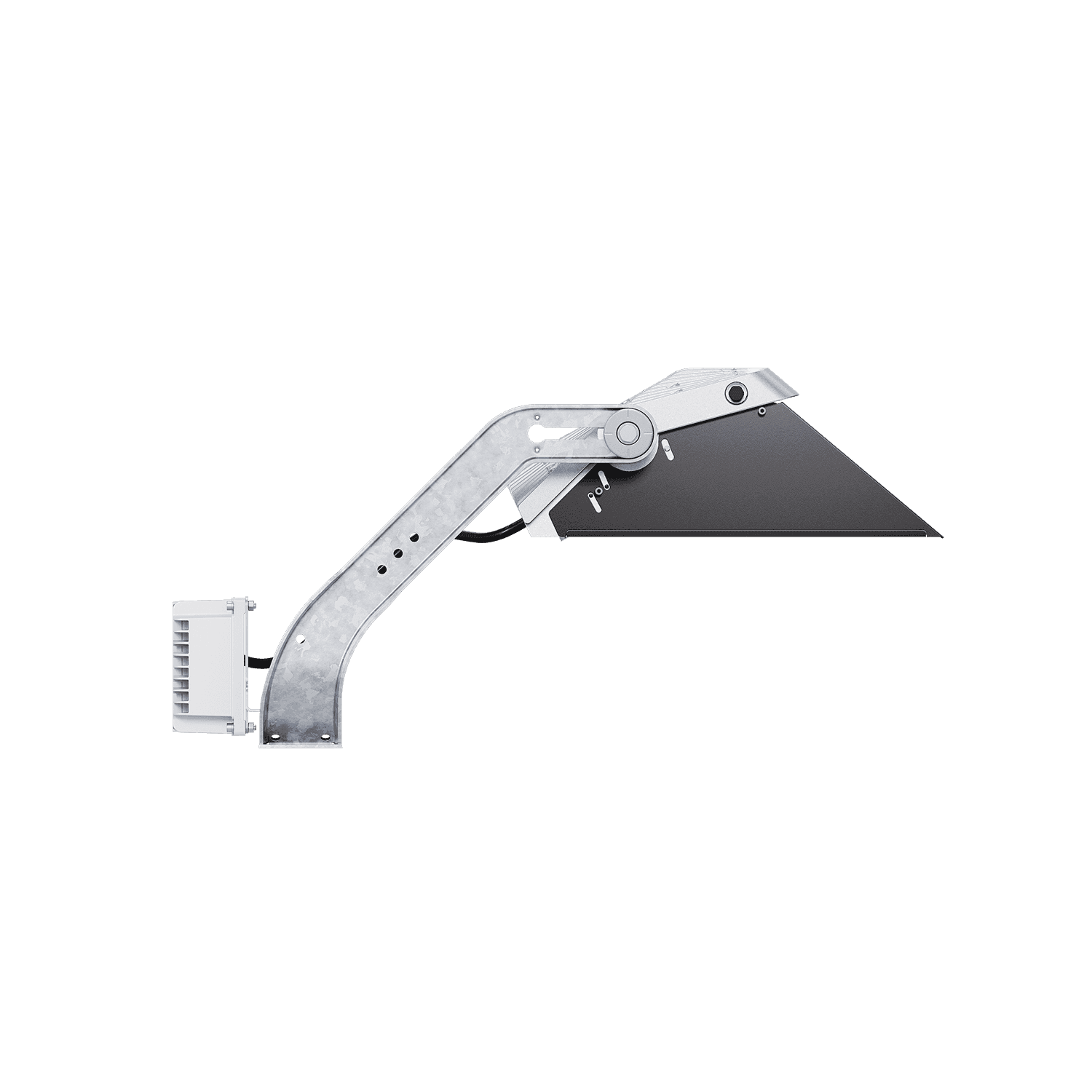

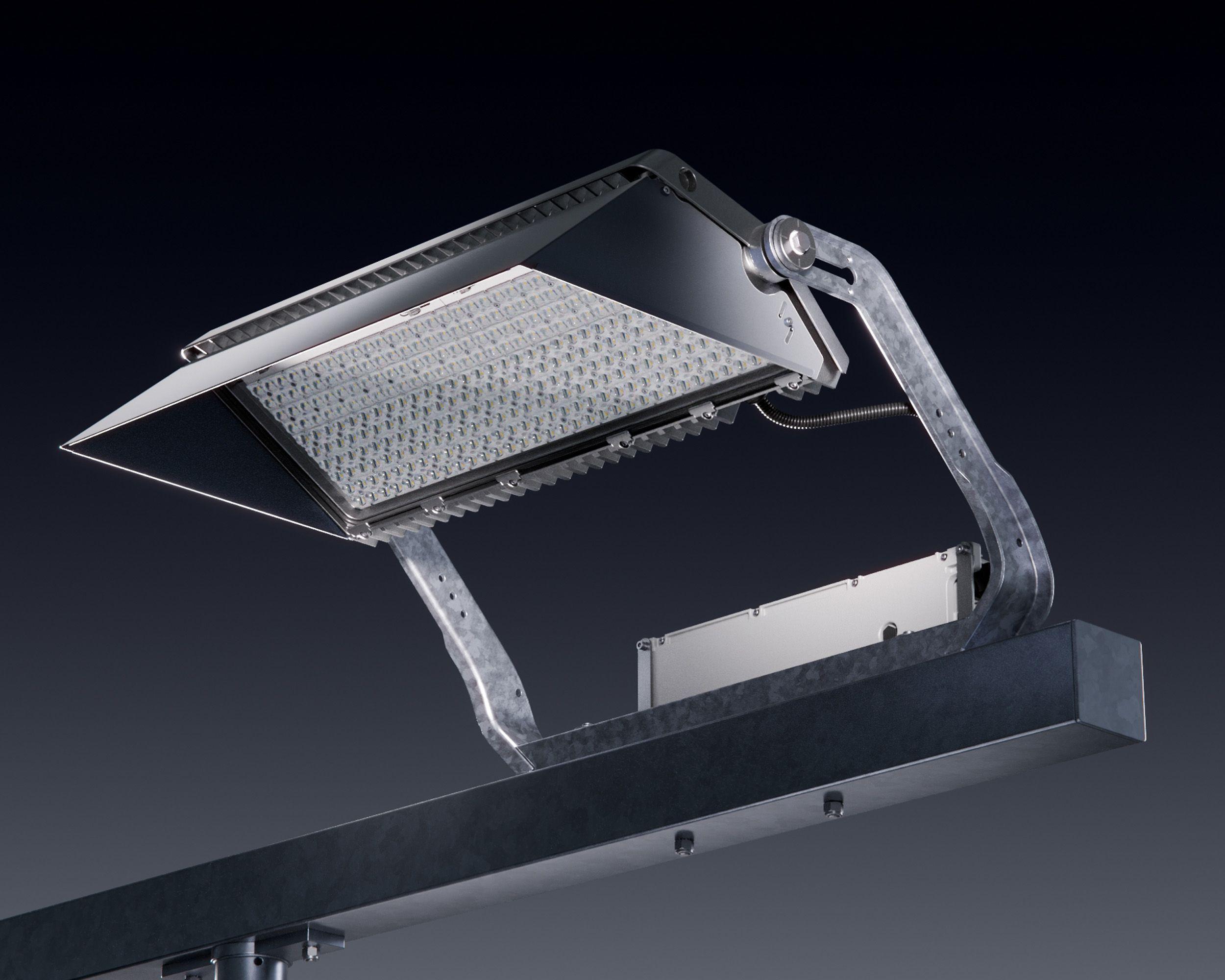

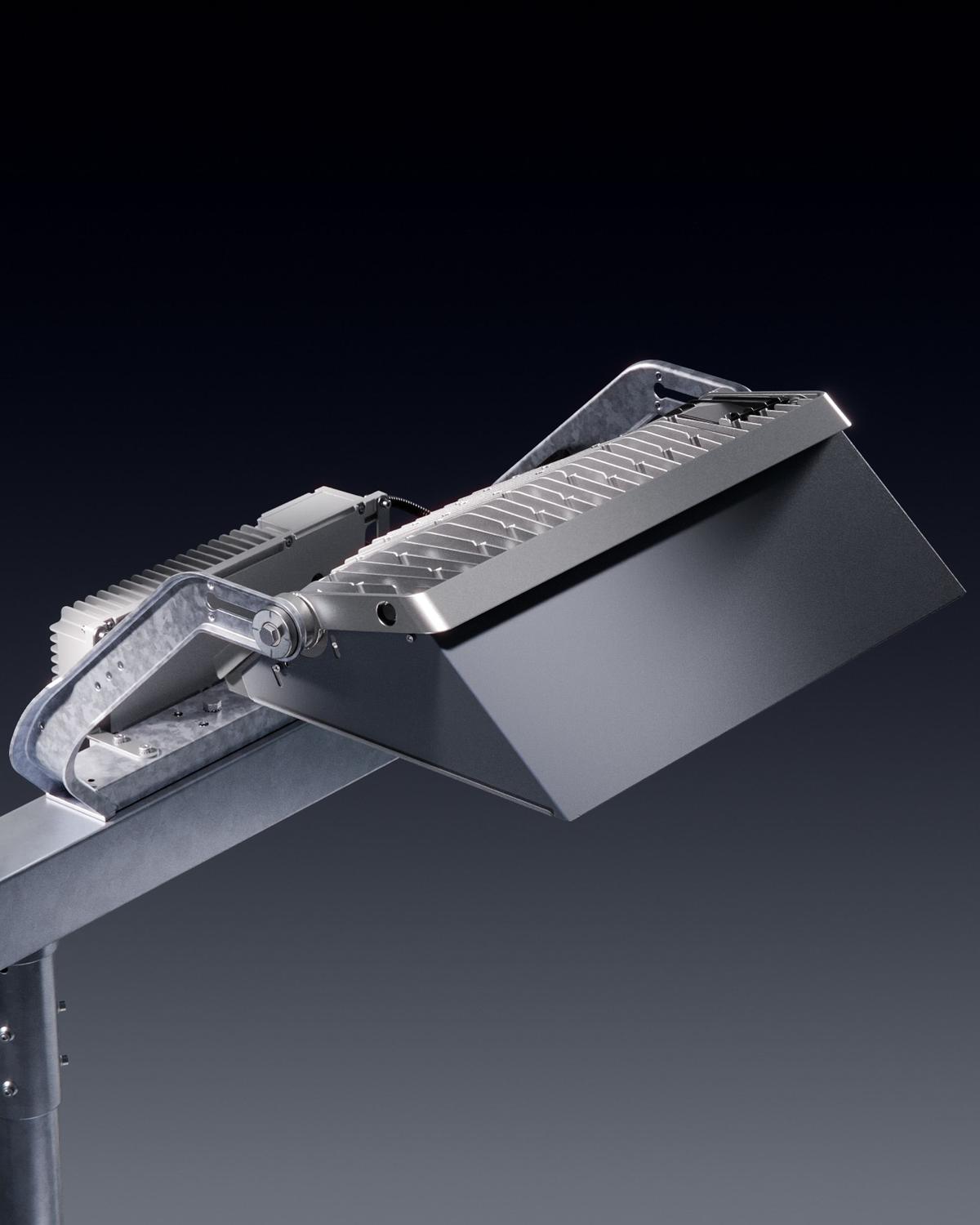

Revolutionary high-power floodlight that sets new standards in sports lighting. With optimized optics, lightweight design, and precise illumination, RIVAL enhances the wellbeing of athletes and reduces costs with up to 20% fewer fixtures required. What sets RIVAL apart is its unique horizontal design, eliminating light spillage into the sky and surrounding areas, while delivering exceptional lighting quality on the pitch.

RIVAL has received the “DarkSky Approved” certification by DarkSky International.

  • Asymmetric Forward 44°, Asymmetric Extra Forward 55, Asymmetric Extra Forward Left and/or Right 65°
  • 1,200 mA (depending on ambient temperature)
  • max. luminous flux: 146,600 lm
  • efficiency up to 161 lm/W
  • 3,000 K (CRI ≥ 70), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), other combinations of CCT/CRI/TLCI available upon request
  • Electronic operating device with DALI and DMX-RDM
  • 1-10V


On request:

  • electronic operating device with Stand-alone programming and CLO
  • separated module with Zhaga Book 18
  • separated module with NEMA 7

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
