ZA 1
ZA 2
ZA 3
1 2 3

ZA

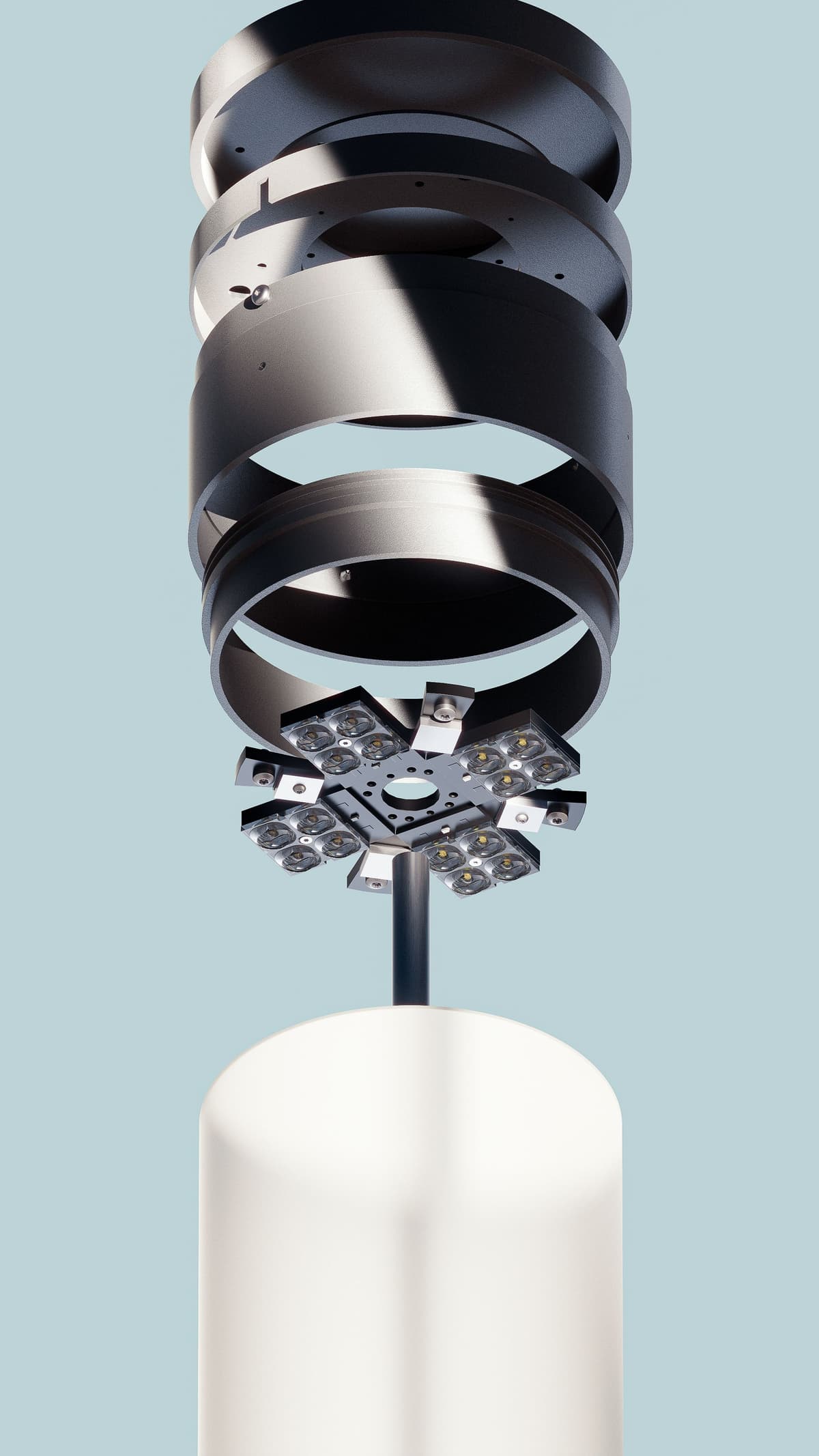

  • Housing accommodates up to 4 LED lighting units (LED Board: 4 LED)
  • AP07, AS07 (also available in satiné version) Various light distributions (symmetric or asymmetric) for area, street or walkway lighting
  • Current feed: 200 mA–700 mA, depending on ambient temperature
  • Max. luminous flux [lm] 3,700
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
  • Color temperatures:
    2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70),
    3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70)
  • CRI ≥ 80, other color rendering indexes available upon request

Data Sheet ZA

ewo offers a wide range of standard model options for each product. Thus, we ensure that we are able to provide the ideal solution to meet any project requirement. The Product Configurator guides you through the various options to help you find the custom lighting system solution for your project.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
