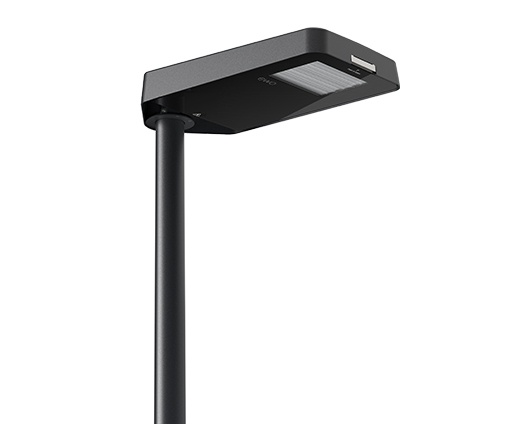

IR

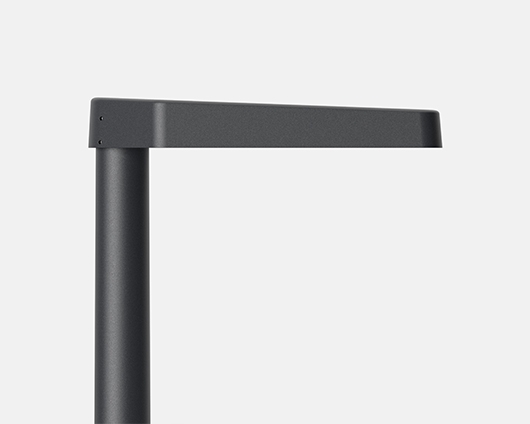

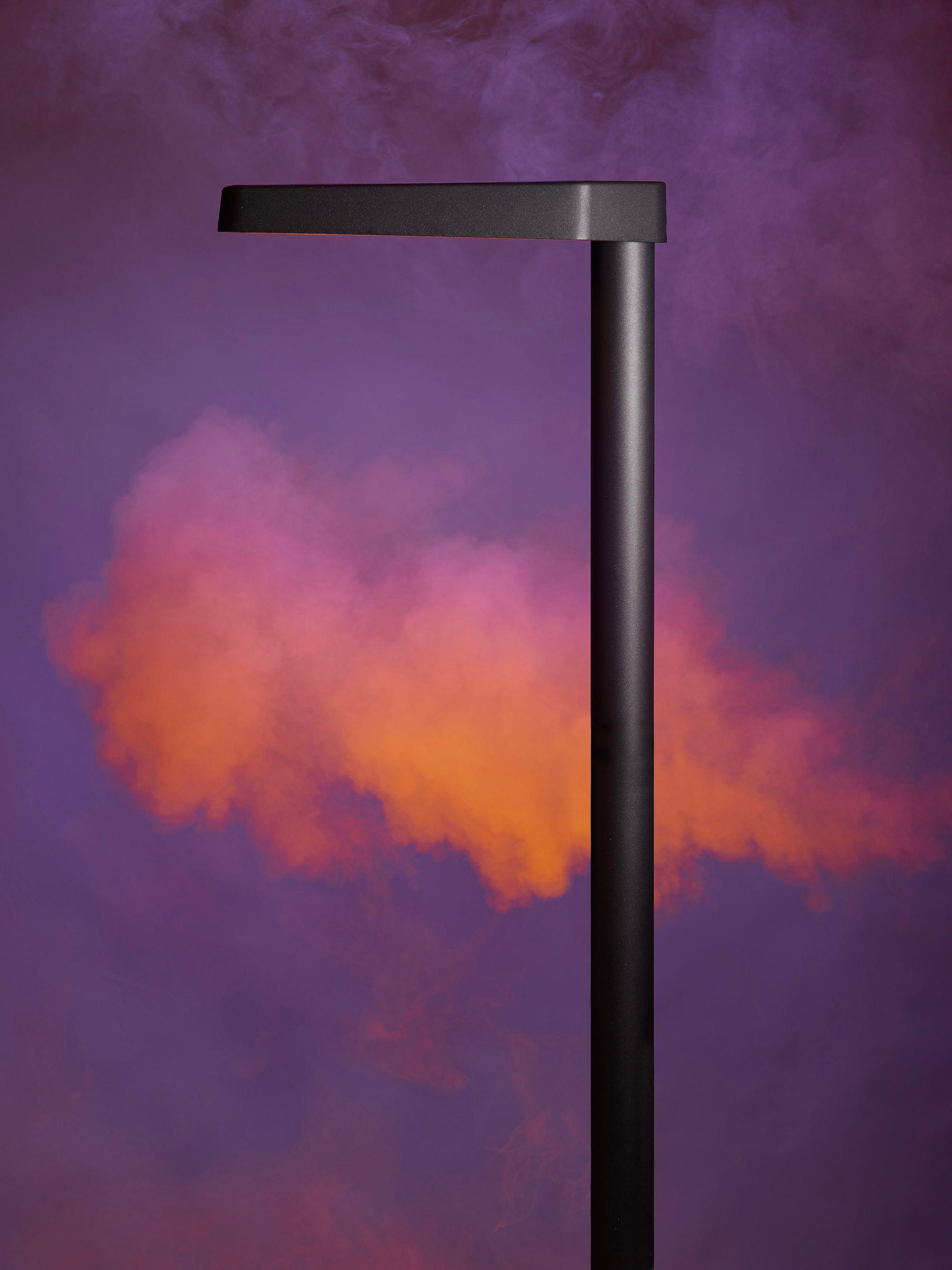

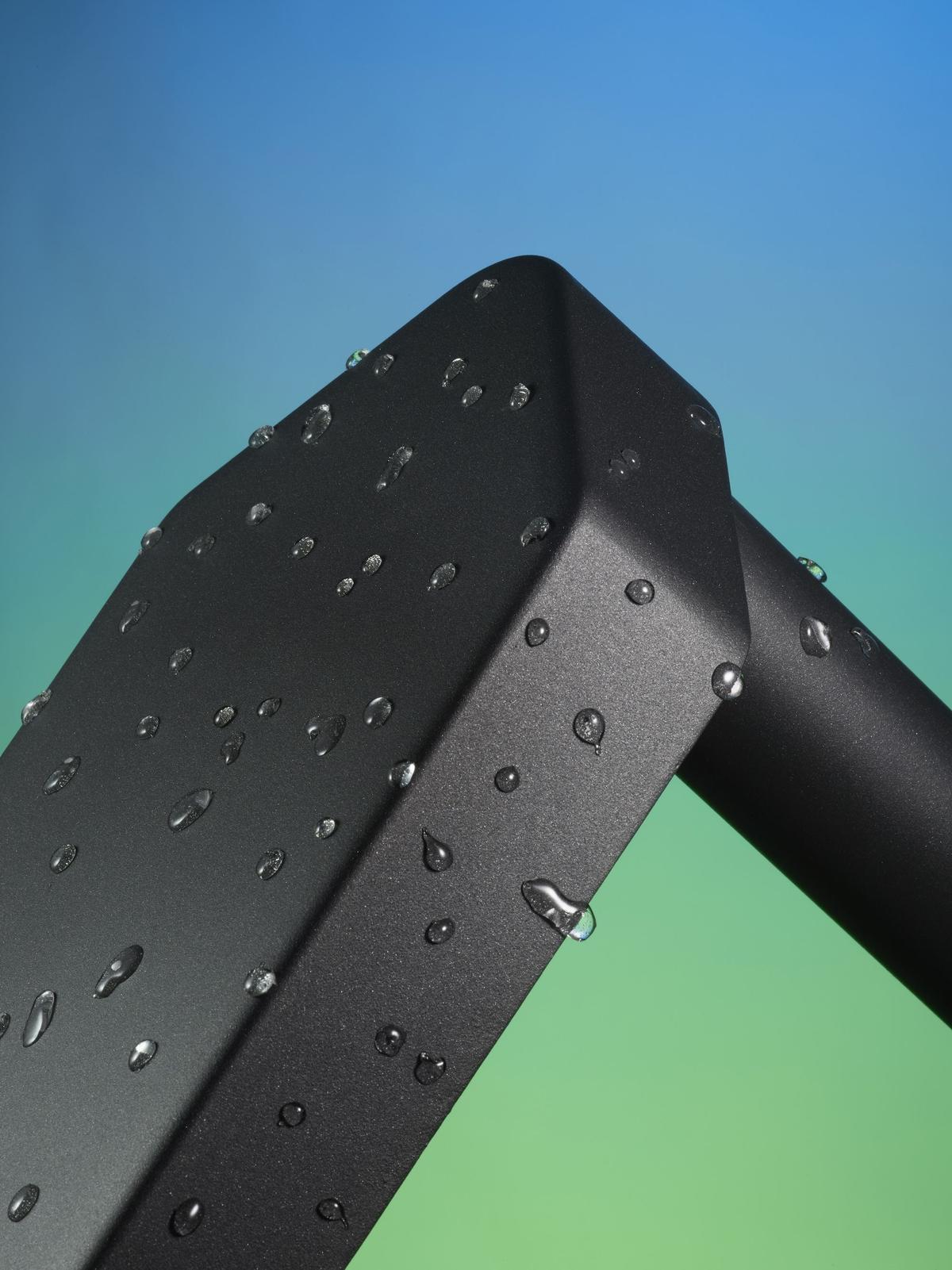

Aesthetically a continuous ribbon, functionally "Intelligence Ready"

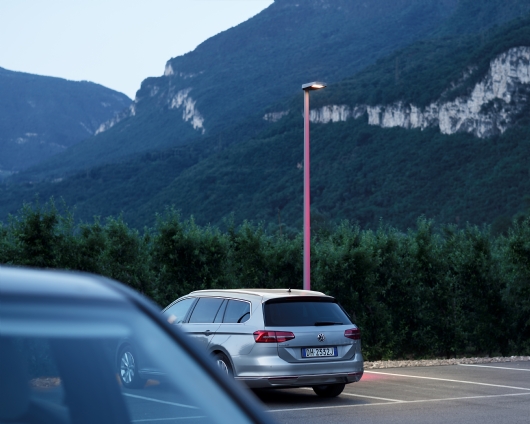

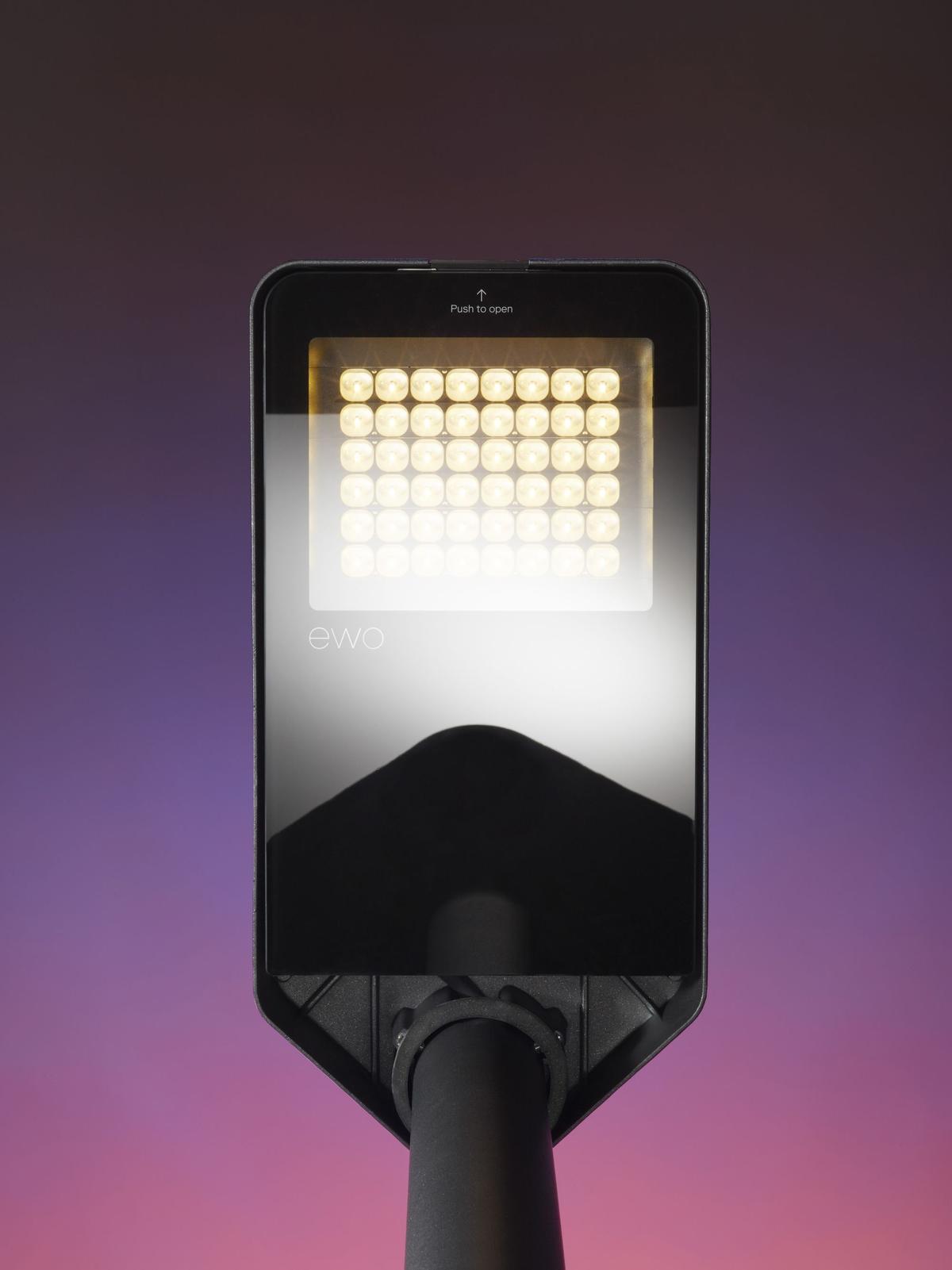

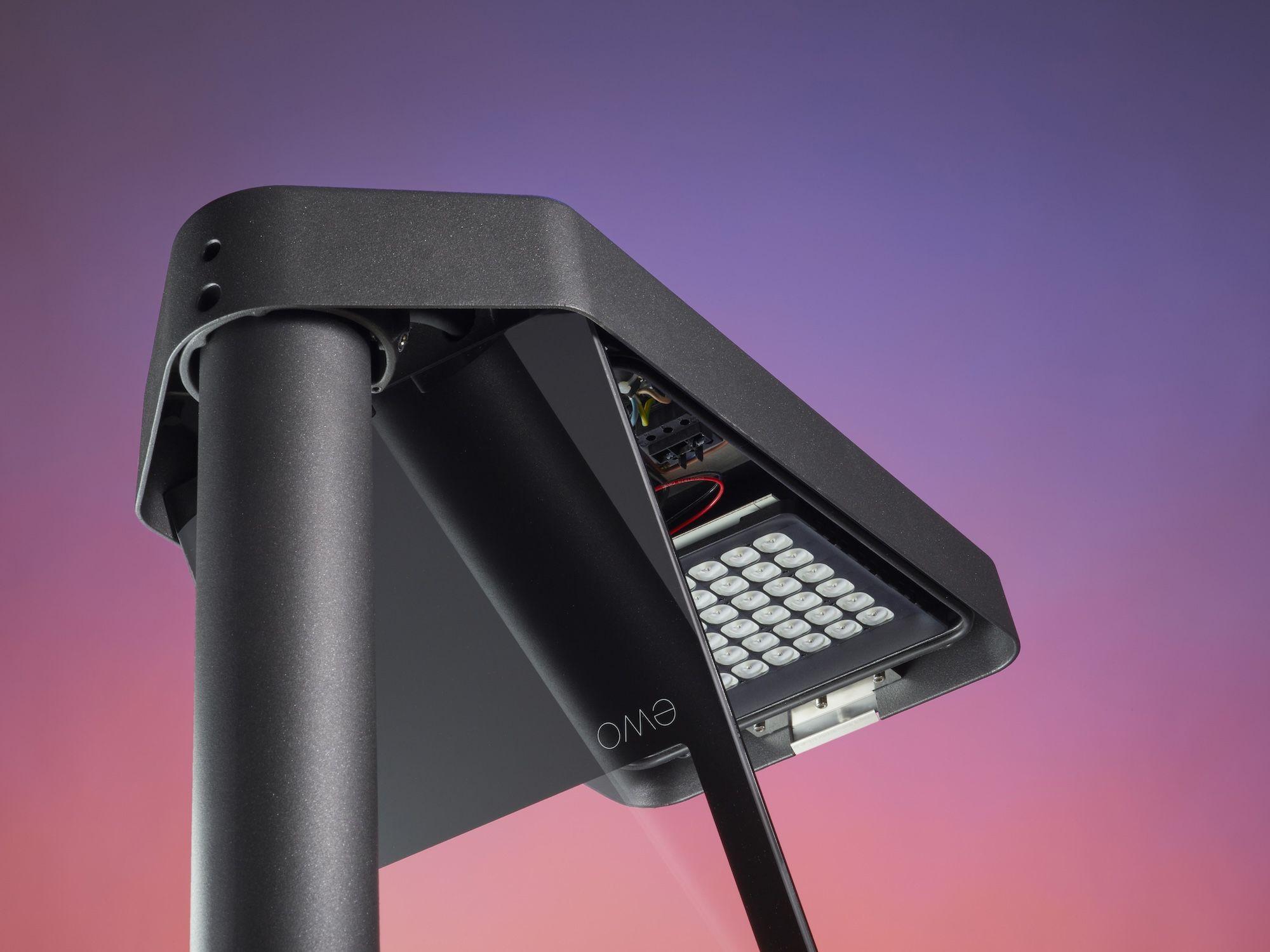

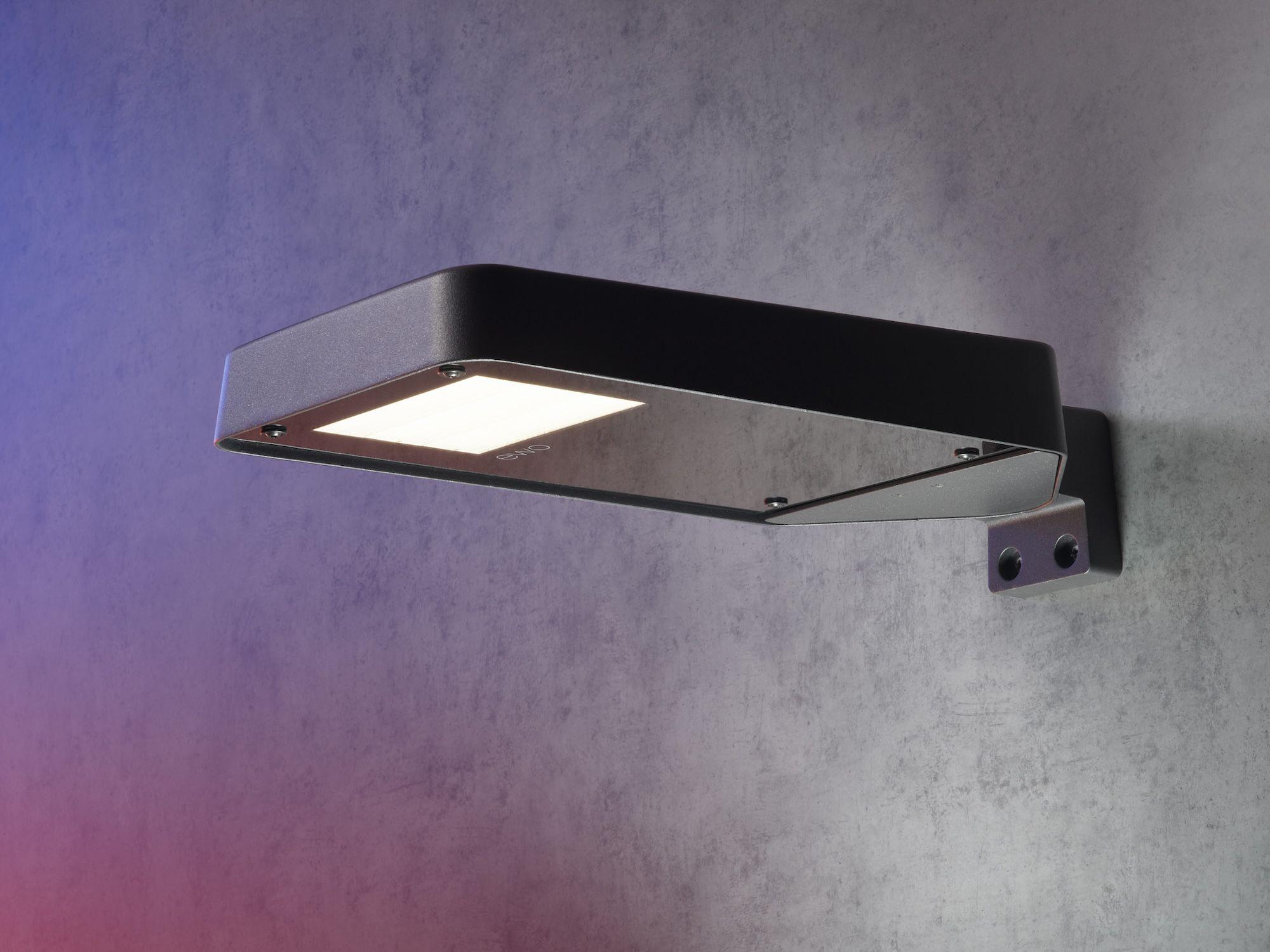

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, street, walkway lighting and lighting of pedestrian crossings.

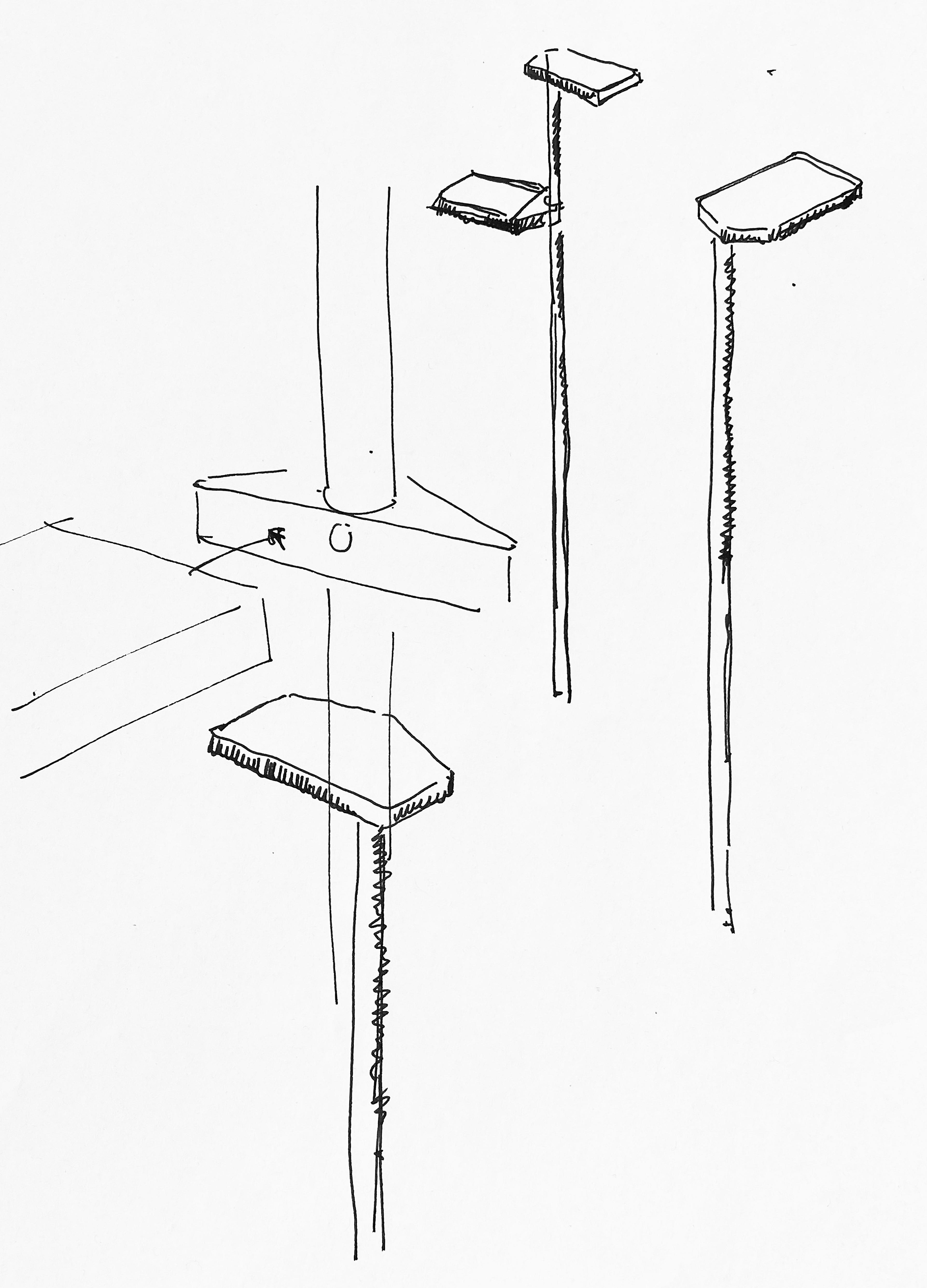

Designer: Jörg Boner
Year: 2019-2020
Technical specifications:

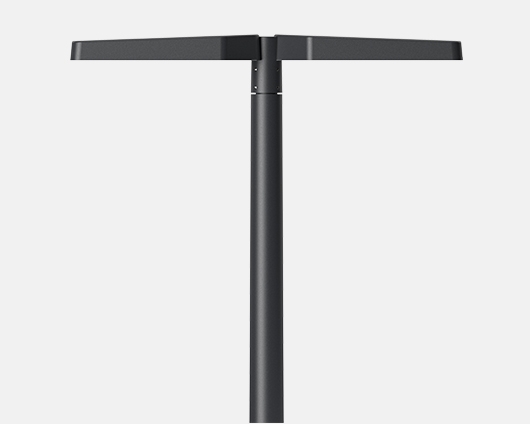

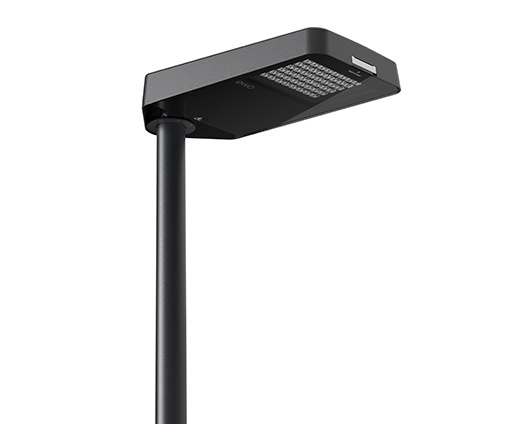

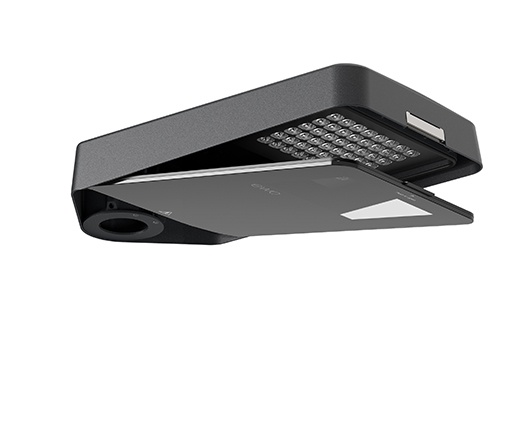

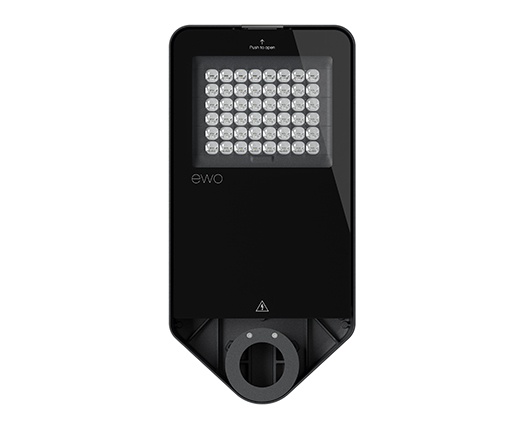

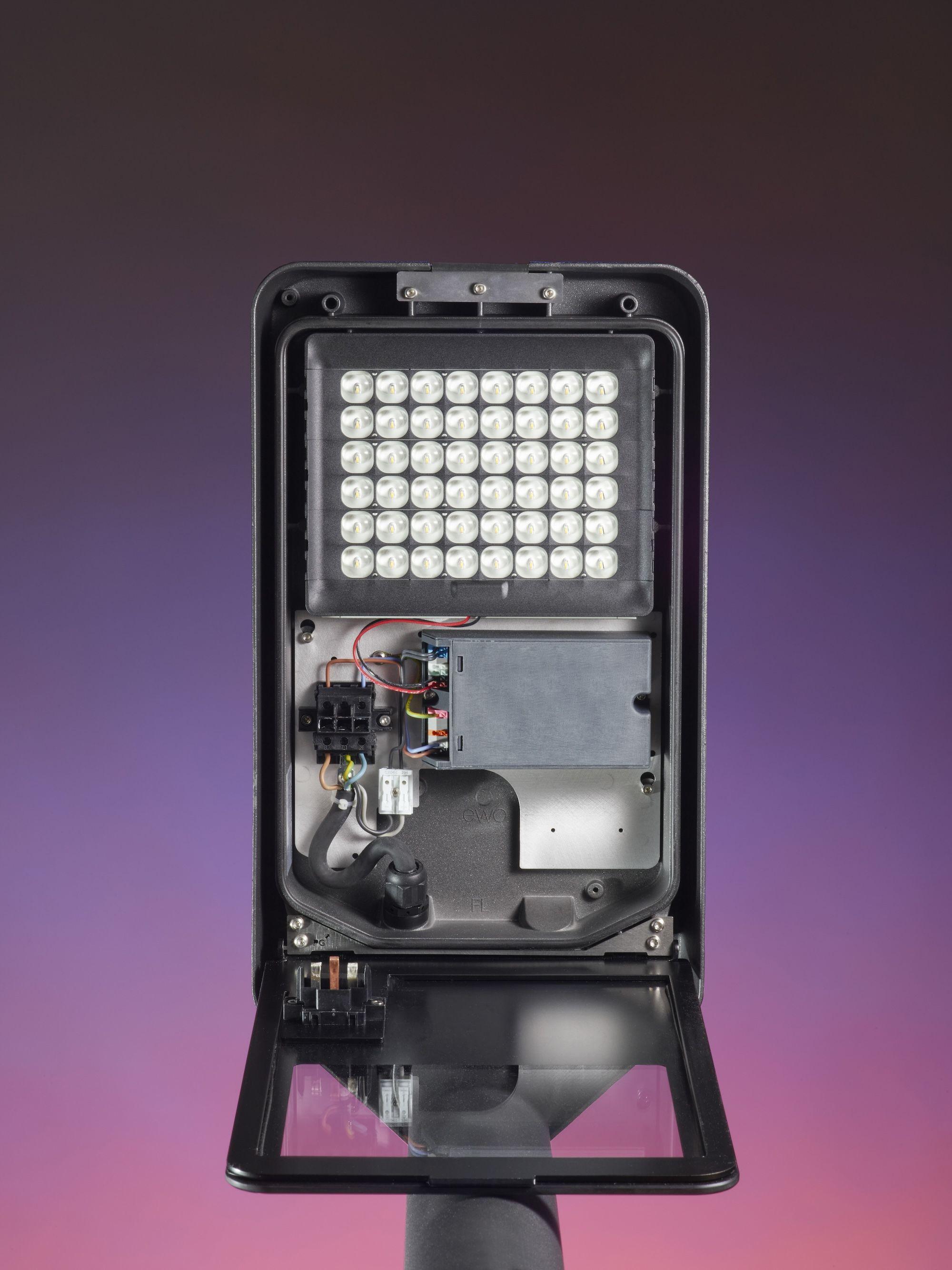

A–Series
- Current feed: 200–700 mA, depending on ambient temperature (IR3 max. 650 mA)
- Max. luminous flux 10,900 lm
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80, other color rendering indexes available upon request
- Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
- Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
- Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

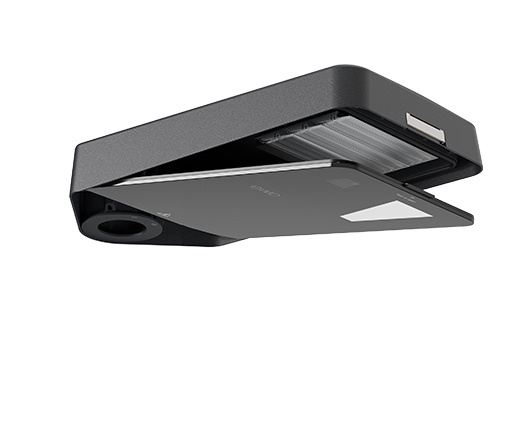

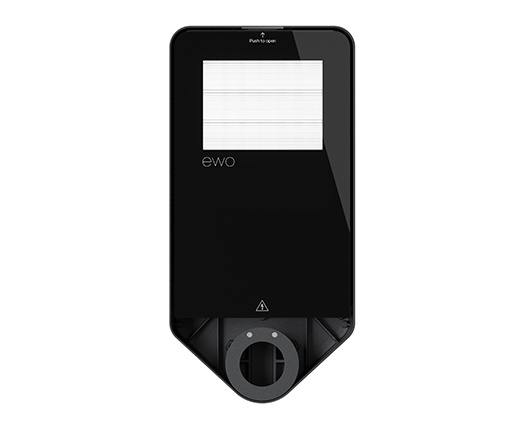

T–Series
- Current feed up to 225 mA, depending on ambient temperature
- Max. luminous flux 2,700 lm
- Color temperature Tunable White 2,200-6,500 K, standard CRI ≥ 80, upon request CRI ≥ 90
- Electronic operating device with DALI T8 interface.
The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.
Below, simply select your product variants and lenses, and download either the IES or LDT file.
