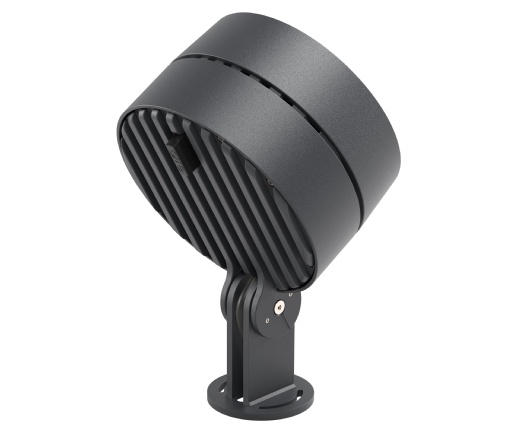

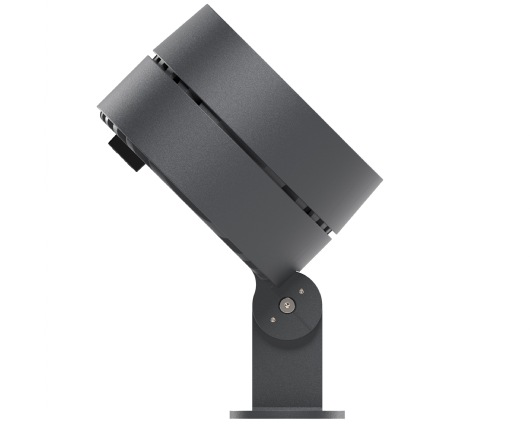

C260 Integral
- The first application agnostic luminaire. A master in transformation in form and function, thanks to its incredible modularity. Simplified electrical connection, see driver integrated in projector.
- A–Series
- 36 high-power LEDs
- Driver integrated, current feed: max. 700 mA
- Max. Luminous Flux: 10,100 lm
- Color Temperatures: 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI ≥ 80)
- Other color rendering indexes available upon request

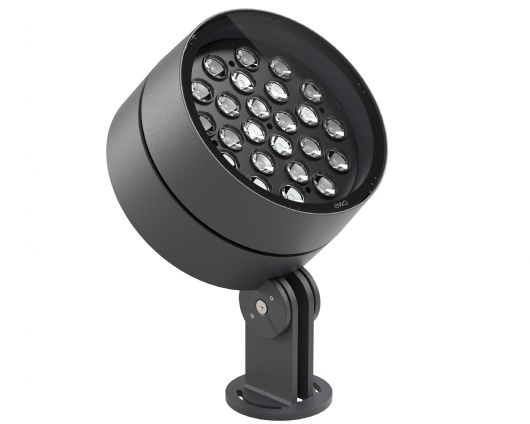

- E–Series
- 24 high-power LEDs
- Driver integrated, current feed: max. 900 mA
- Max. Luminous Flux: 8,750 lm
- Color Temperatures: 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI ≥ 80)
- Other color rendering indexes available upon request
- RGBW
- 24 high-power LEDs
- Driver integrated, current feed: max. 250 mA
- RGB + 2,200 K or RGB + 4,000 K (CRI ≥ 80)
- Other color rendering indexes available upon request
- Tunable White
- 24 high-power LEDs
- Driver integrated, current feed: max. 350 mA
- 2,200–4,000 K or 3,000–5,000 K (CRI ≥ 80)
- Other color rendering indexes available upon request
Find here the Spec Sheet as download for our customers and partners from North America
Find here the V–Notch presentation as download for our customers and partners from North America
The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.
Below, simply select your product variants and lenses, and download either the IES or LDT file.
